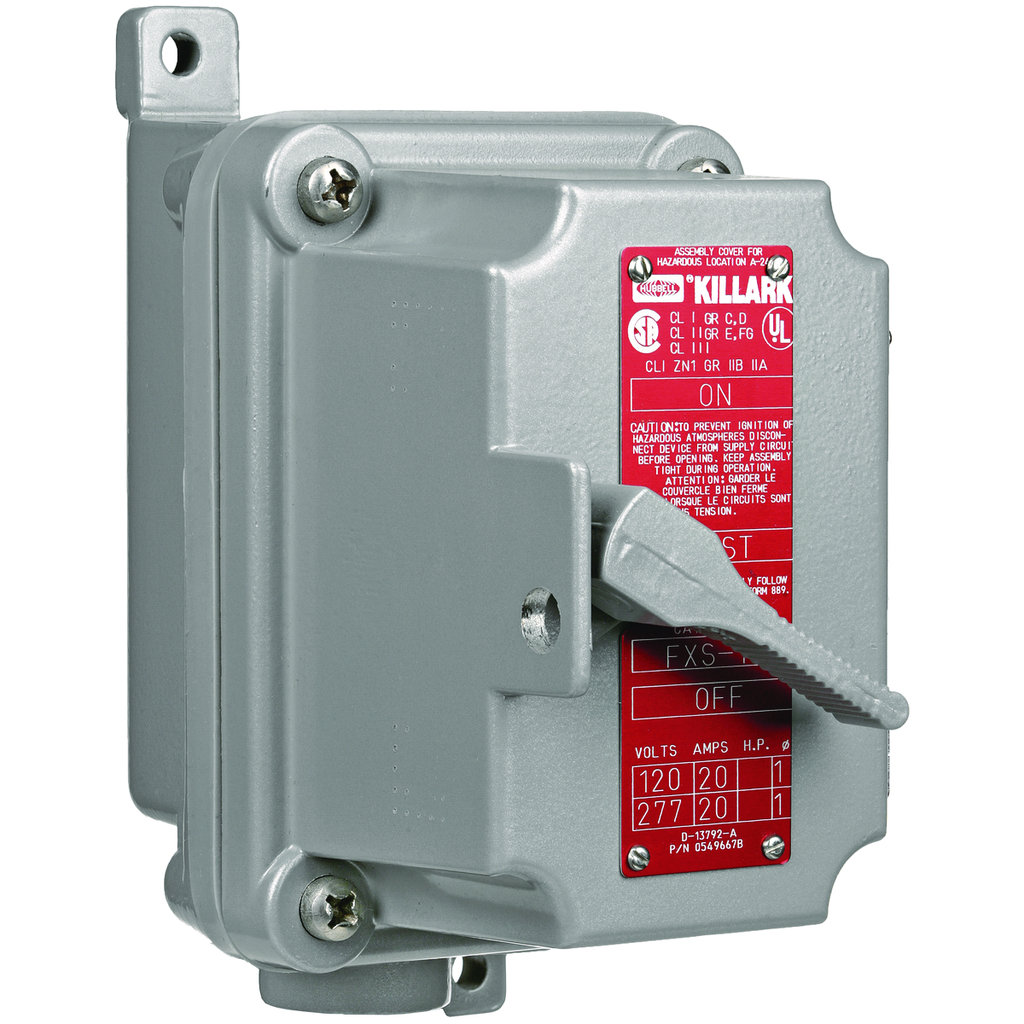

KLRK FXSX53 SWITCH 1GANG 3P F-THRU
$826.55/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # FXSX53
North Coast Part # 489565

Features

FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro

  • FXSX Series (without overload protection) are ideally suited for across the-line applications where a positive disconnect means is required.
  • Factory Sealed so no external seals are required.
  • Type 3 (raintight) rated.
  • Enclosures are cast copper-free aluminum alloy.
  • Operating shaft is stainless steel.
  • Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Provisions for padlocking switch in either “ON” or ”OFF” position is standard.

Specifications

  • Application: Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ
  • Horsepower - Maximum: 5
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: FXSX
  • Type: Aluminum Manual Motor Starting Switch Without Overload Protection
  • UPC: 783936198101
  • Gross Weight with Packaging: 4.58
  • Height: 6.75 in
  • Length: 8.75 in
  • Width: 5.75 in
  • Frequency Rating: 60 Hz
  • Voltage Rating: 600 V
  • CSA File Number: LR11714

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
  • Nema Rating: 3
  • UL File Number: E53360 / E12379

Overview

UPC 78393619810
GTiN 00783936198101
Length 8.75 in
Width 5.75 in
Size 6-13/16" H x 3-11/16" W x 5-11/32" D
Voltage 600 Volt
Type Aluminum manual motor starting switch without overload protection
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Applications Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ
Height 6.75 in
Frequency 60 Hz
Coil Voltage 2 HP @ 115 VAC; 3 HP @ 200-230 VAC; 5 HP @ 460-575 VAC.
Family Brand Name Killark
NEMA 3
Number of Phases 3 Phase
Enclosure Type Aluminum enclosure
Power Rating 2 HP @ 115 VAC; 3 HP @ 200-230 VAC; 5 HP @ 460-575 VAC.
Number of Poles 3 Pole
Reset Type Lever
