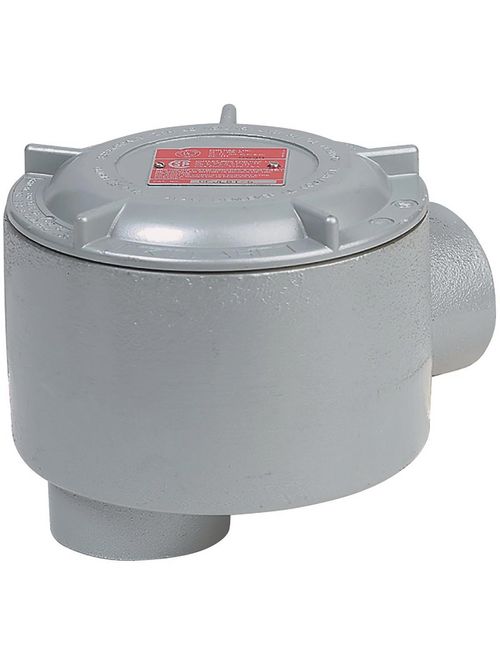

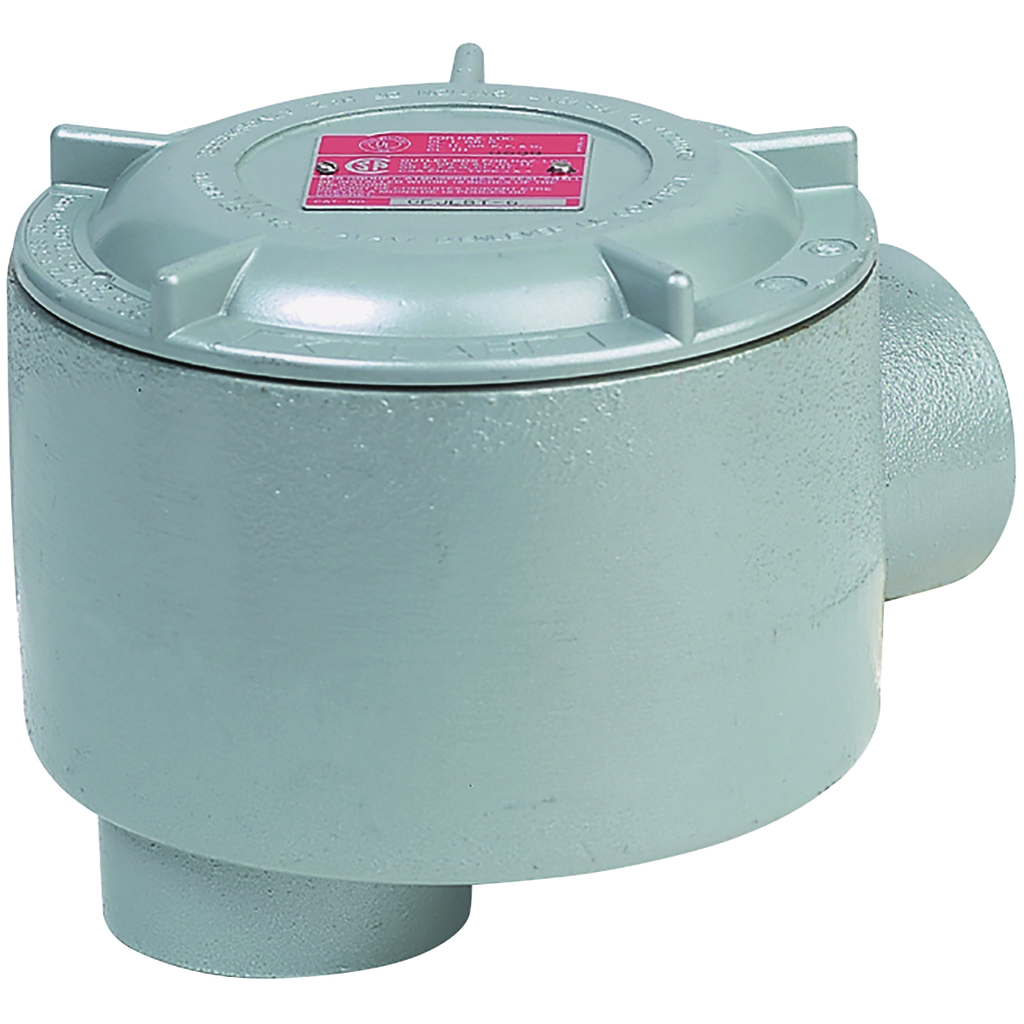

KLRK GECLBT-1 OUTLET BODY 1/2" AL L
$88.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GECLBT-1
North Coast Part # 157788

Features

GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal

  • Water shedding cover – suitable for wet locations when mounted in upright position.
  • External cover threads on body protecting conductors from damage during pulling.
  • No pinching of conductors during cover installation.
  • Taper threaded hubs to provide ground continuity.
  • Smooth integral hub bushing to protect conductor insulation when pulling.
  • Internally threaded cover openings for additional wiring room.
  • Covers furnished with boxes.
  • Weather-resistant finish.
  • Green ground screw standard.

Specifications

  • Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: LB
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: GE
  • Type: Outlet Body With Cover
  • UPC: 783936210056
  • Gross Weight with Packaging: 1.82
  • Height: 4.625 in
  • Hub Size: 1/2"
  • Length: 6.375 in
  • Width: 6 in
  • CSA File Number: LR11716

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • UL File Number: E10514

Overview

UPC 78393621005
GTiN 00783936210056
Length 6.375 in
Finish Gray
Width 6 in
Size 3-11/16" H x 4-1/2" W x 4-7/16" D
Color Gray
Type Aluminum outlet body with cover
Material Copperfree Aluminum
Applications Conduit Boxes Installed in Conduit Systems within Hazardous Areas to Protect Conductors in Threaded Rigid Conduit, Act as Pull and Splice Boxes, Interconnect Lengths of Conduit, Change Conduit Direction, and Provide Access to Conductors for Maintenance and Future System Changes
Height 4.625 in
Family Brand Name Killark
Hub Size 1/2 in
Cable Entry 0.50 in
Trade Size 1/2 Inch
Blade Dimensions 3-11/16 in H x 4-1/2 in W x 4-7/16 in D
