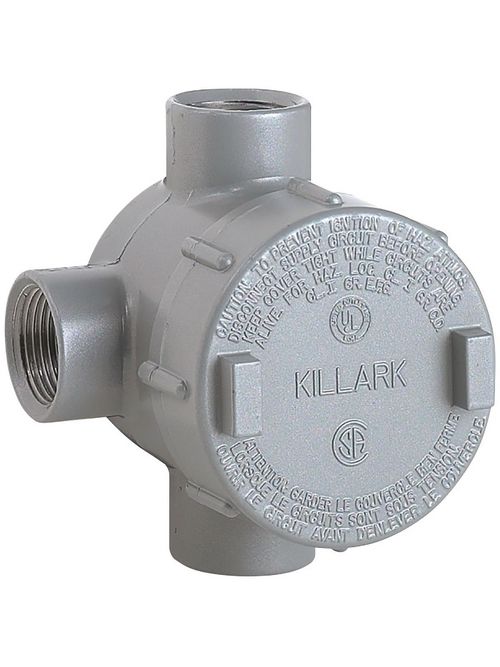

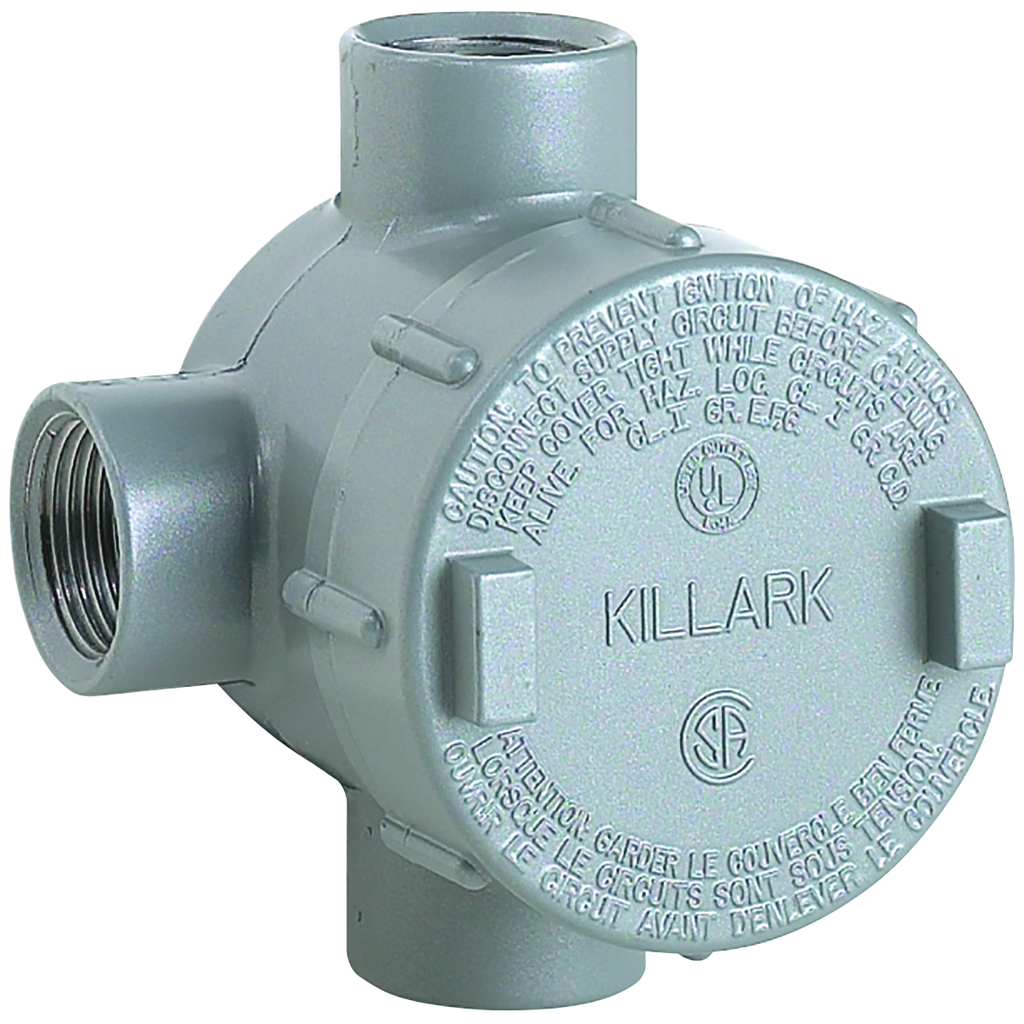

Hubbell Electrical Systems GECTT-1M 1/2 Inch Iron Type T Conduit Outlet Body
$112.51/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GECTT-1M
North Coast Part # 347223

Features

GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal

  • Water shedding cover – suitable for wet locations when mounted in upright position.
  • External cover threads on body protecting conductors from damage during pulling.
  • No pinching of conductors during cover installation.
  • Taper threaded hubs to provide ground continuity.
  • Smooth integral hub bushing to protect conductor insulation when pulling.
  • Internally threaded cover openings for additional wiring room.
  • Covers furnished with boxes.
  • Weather-resistant finish.
  • Green ground screw standard.

Specifications

  • Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: T
  • Material: Iron
  • Series: GE
  • Type: Outlet Body With Cover
  • UPC: 783936210896
  • Gross Weight with Packaging: 4.1
  • Height: 5.5 in
  • Hub Size: 1/2"
  • Length: 6.88 in
  • Width: 3.75 in
  • CSA File Number: LR11716

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • UL File Number: E10514

Overview

UPC 78393621089
GTiN 00783936210896
Length 6.88 in
Finish Powder Epoxy Paint
Width 3.75 in
Size 4-1/2" H x 5-5/16" W x 3-5/8" D
Color Gray
Type Iron outlet body with cover
Material Iron
Applications GE Series conduit boxes are installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit; act as pull and splice boxes; interconnect lengths of conduit; change conduit direction; and provide access to conductors for
Height 5.5 in
Family Brand Name Killark
Hub Size 1/2 in
Cable Entry 0.50 in
