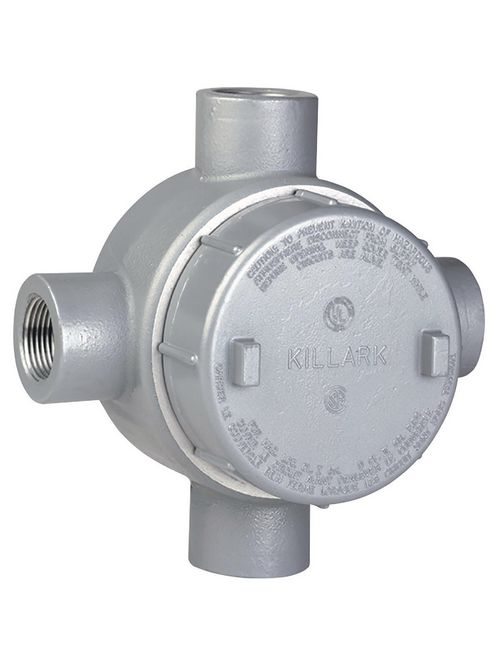

KLRK GESXT-4 1-1/4" ALUM OUTLET BOD

Features

GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal

• Water shedding cover – suitable for wet locations when mounted in upright position.
• External cover threads on body protecting conductors from damage during pulling.
• No pinching of conductors during cover installation.
• Taper threaded hubs to provide ground continuity.
• Smooth integral hub bushing to protect conductor insulation when pulling.
• Internally threaded cover openings for additional wiring room.
• Covers furnished with boxes.
• Weather-resistant finish.
• Green ground screw standard.

Specifications

• Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: X
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: GE
• Type: Outlet Body With Cover
• UPC: 783936210360
• Gross Weight with Packaging: 3.17
• Height: 7 in
• Hub Size: 1-1/4"
• Length: 8.125 in
• Width: 6 in
• CSA File Number: LR11716

Hazardous Rating(s)

• Class I, Divisions 1 & 2, Group D
• Class I, Zones 1 & 2, Group IIA
• Class II, Divisions 1 & 2, Groups E, F, G
• Class III, Divisions 1 & 2

• UL File Number: E10514
