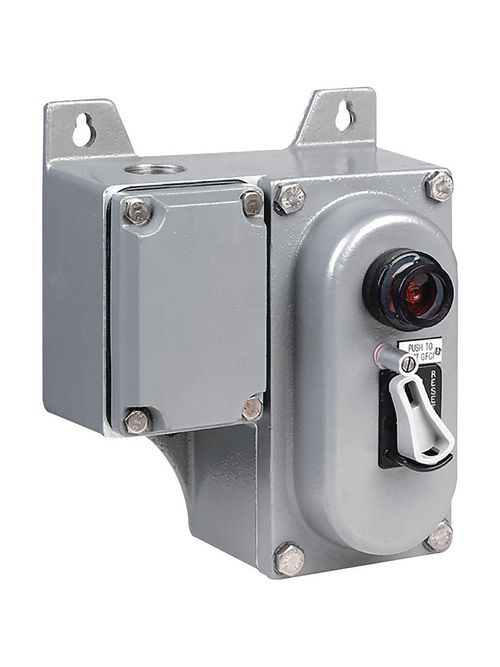

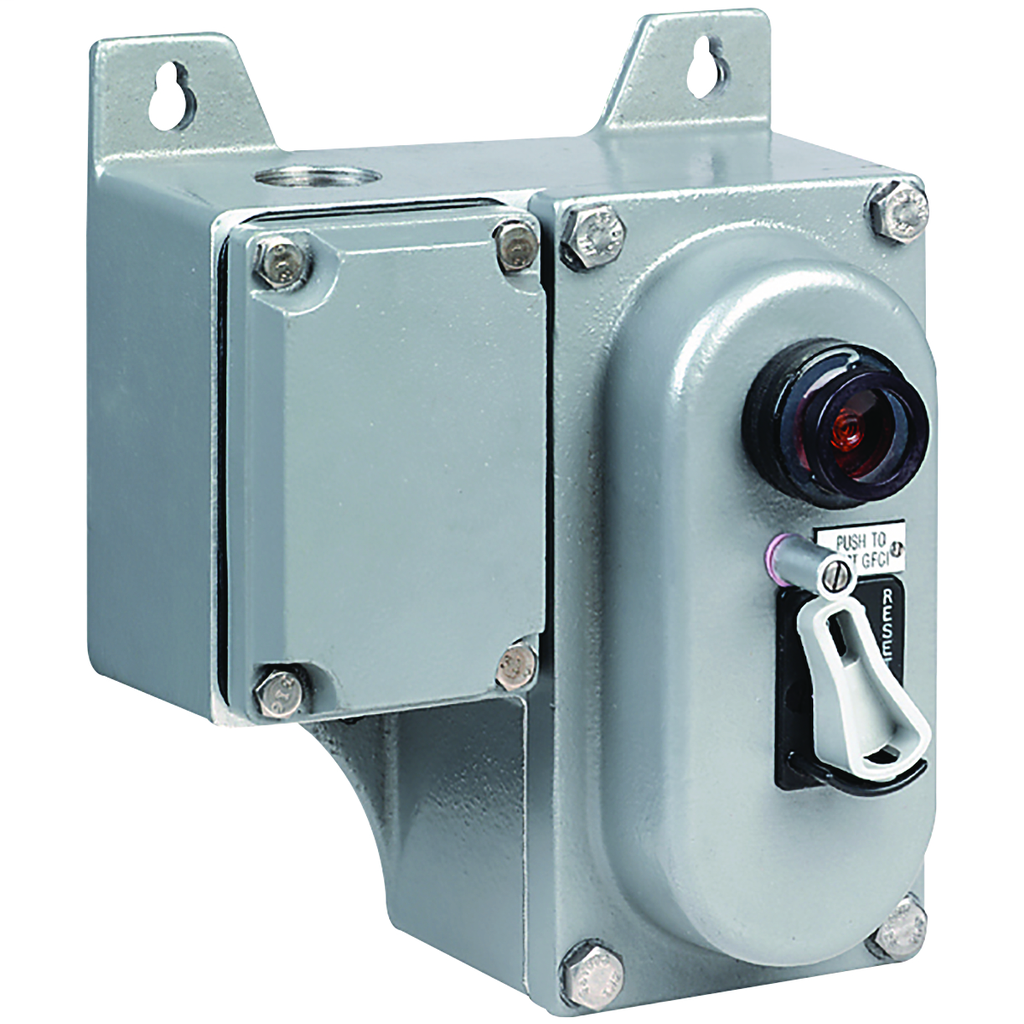

KLRK GFCS30202 2P 30MILLIAMTRIP 20B

Features

• Factory Sealed Ground Fault Chamber (Assemblies in Group B areas must be sealed within 6" of enclosure. Other area classification do not require the use of seals).
• 1" NPT top and bottom conduit openings.
• External Push-to-Test Button and Pilot Light for monitoring.
• ON-OFF_TEST-Reset External Handle can be locked in ON-OFF positions.
• 5ma Ground Fault Circuit Breaker for People Protection.
• 30ma Ground Fault Circuit Breaker for Equipment Protection and heat tracing circuits.
• Electrical Rating 120VAC (single pole), 120/240VAC (two pole), 10,000AIC.

Specifications

General

• Action: DP
• Actuator: Miniature Circuit Breaker Operator with Reset
• Application: GFCS Series of ground fault control stations are used for the additional safety of personnel, and for equipment protection in remote areas.
• Color: Gray
• Enclosure Type: Bolted
• Finish Type: Powder-Coated Polyester Epoxy
• Indicator(s) Type: Pilot Light
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Mounting Type: Wall
• Number Of Poles: 2
• Operating Temperature Celcius Max: 40 Degree
• Reset Type: Pushbutton on MCB Handle
• Series: GFCS
• Type: GFCI
• UPC: 783936112695

Dimensions

• Depth: 8.5
• Gross Weight with Packaging: 13
• Height: 7.875 in
• Weight: 13 lb
• Width: 7.375 in

Electrical Ratings

• Amperage Rating: 20 A
• Frequency Rating: 60 Hz
• Primary Voltage: 240 VAC
• Sensitivity: 30mA

Conductor Related

• Number Of Wires: 3

Certifications and Compliance

• CSA File Number: LR061895-2
• Nema Rating: 3, 7(B, C, D), 9(E, F, G)
• UL File Number: E83969

Logistics

• Factory Sealed: Factory Sealed

Hazardous Rating(s)

• Class I, Divisions 1 & 2, Groups B, C, D
• Class I, Zones 1 & 2, Groups IIB+H2, IIA
• Class II, Divisions 1 & 2, Groups E, F, G
• Class III, Divisions 1 & 2
