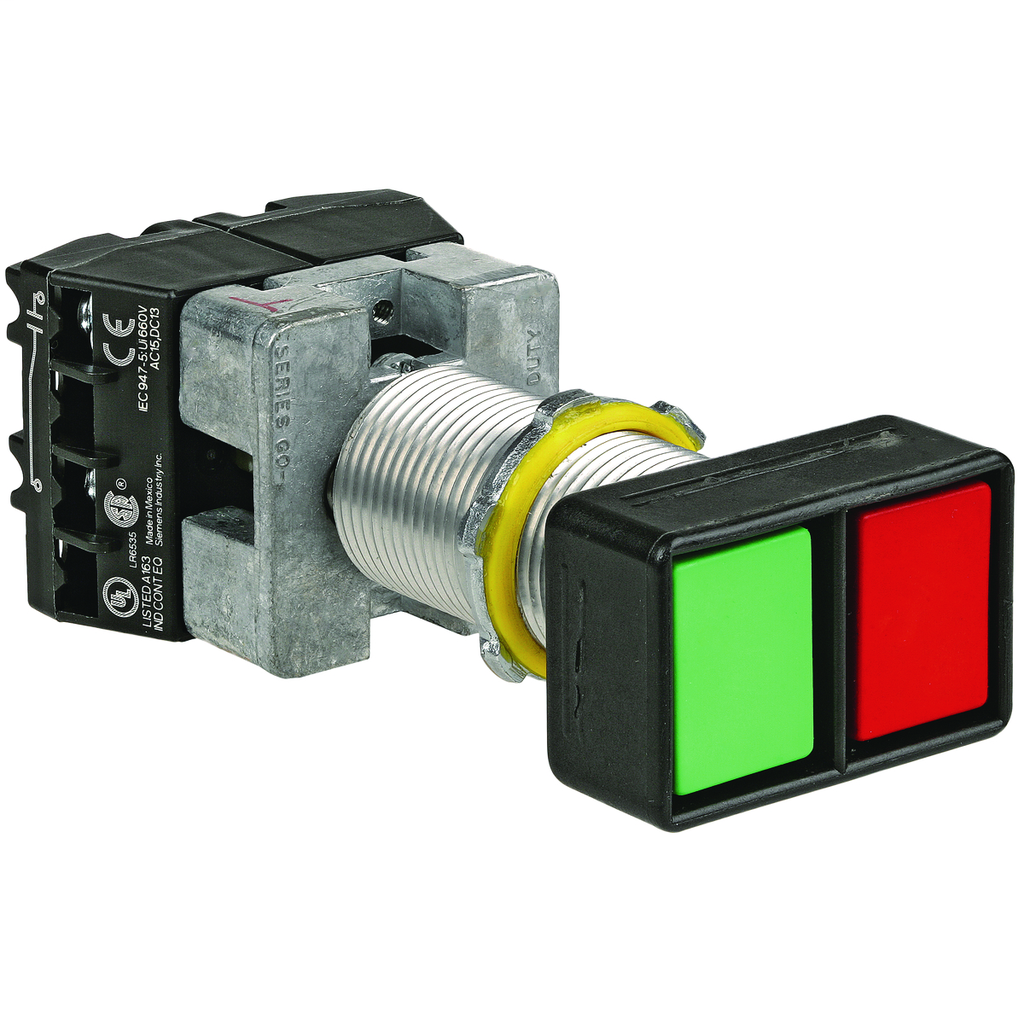

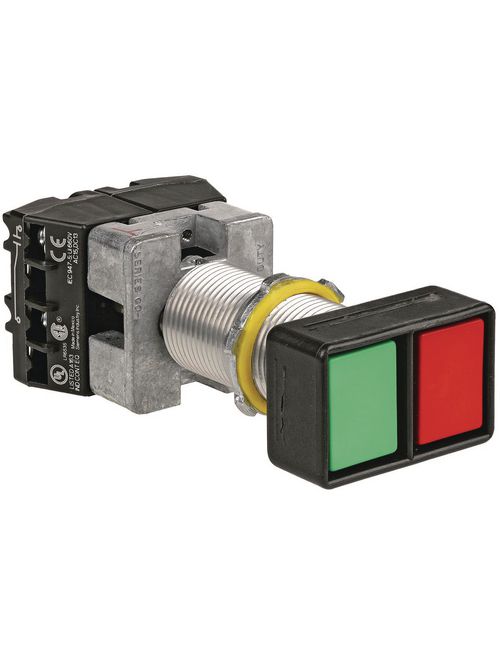

KLRK GO2-GR12D-N34 OM DBL PB LONG G
$530.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GO2-GR12D N34
North Coast Part # 1272358

Features

  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4”-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.

Specifications

General

  • Action: Momentary
  • Actuator: Double Pushbutton
  • Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
  • Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
  • Number Of Poles: 2
  • Series: GO
  • Type: Push Buttons
  • UPC: 783936221540

Dimensions

  • Gross Weight with Packaging: 0.5
  • Height: 1.25 in
  • Length: 6.31 in
  • Width: 2.25 in

Electrical Ratings

  • Amperage Rating: 10 A
  • Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
  • Frequency Rating: 50/60 Hz

Certifications and Compliance

  • CSA File Number: LR11714
  • Nema Rating: 3, 4, 4X
  • UL File Number: E12379

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393622154
GTiN 00783936221540
Length 6.31 in
Width 2.25 in
Size 1-1/4" H x 1-15/16" W x 4-17/32" L
Type Long style double push button operator
Product Series GO
Applications G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Height 1.25 in
Frequency 50/60 Hz
Family Brand Name Killark
NEMA 4X,3,4
Actuator Momentary push buttons
Contact Configuration 1-NO/1-NC
Amperage 10 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Number of Poles 2 Pole
Action SPST (per circuit)
Voltage null
