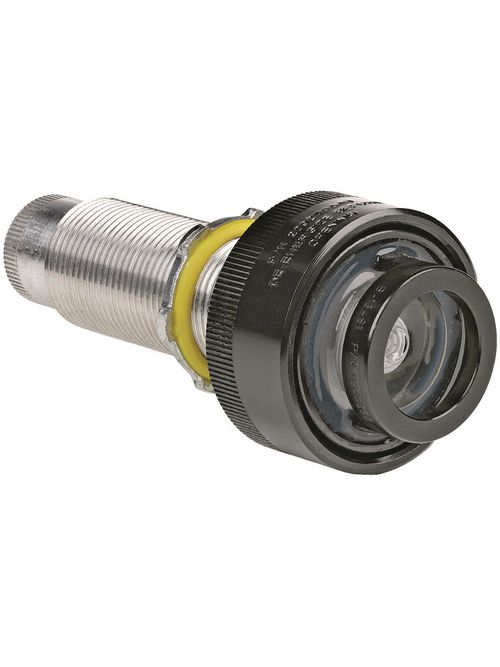

KLRK GO23-C23C L SHORT CLEAR 110/12
Product image thumbnail 0
Product image thumbnail 1
$240.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GO23-C23C
North Coast Part # 337392

Features

  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4”-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.

Specifications

General

  • Actuator: Pilot Light
  • Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
  • Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
  • Color: Clear
  • Operating Cycles: 10,000 hrs
  • Series: GO
  • Type: Indicator
  • UPC: 783936222974

Dimensions

  • Depth: 1-3/4
  • Gross Weight with Packaging: 0.4
  • Height: 1.25 in
  • Length: 6.31 in
  • Width: 2.25 in

Electrical Ratings

  • Amperage Rating: 0.025 A
  • Frequency Rating: 50/60 Hz
  • Voltage Rating: 250 V

Certifications and Compliance

  • CSA File Number: LR11714
  • UL File Number: E12379

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393622297
GTiN 00783936222974
Length 6.31 in
Width 2.25 in
Size 1-35/64" H x 1-35/64" W x 4-3/8" L
Color Clear
Voltage 250 Volt
Type Short style pilot light operator
Product Series GO
Applications G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Height 1.25 in
Frequency 50/60 Hz
Wattage 3 Watt
Family Brand Name Killark
Actuator Pilot light
Amperage 0.025 Amp
