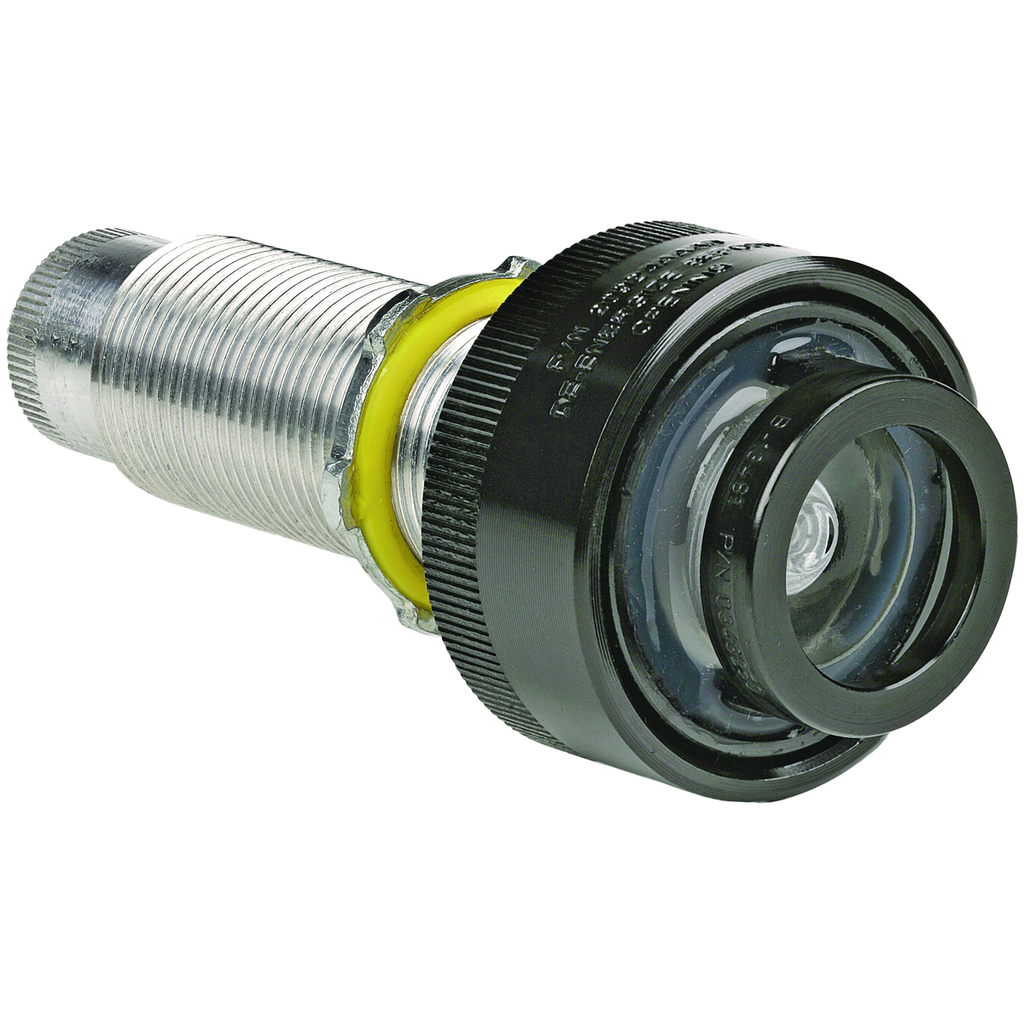

KLRK GOB3-C23C-N34CN CLEAR ATEX PIL
$293.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GOB3-C23C N34CN
North Coast Part # 337039

Features

  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4”-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.

Specifications

  • Actuator: Pilot Light
  • Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
  • Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
  • Color: Clear
  • Operating Cycles: 10,000 hrs
  • Series: GO
  • Type: Indicator
  • UPC: 783936225470
  • Depth: 2-3/4
  • Gross Weight with Packaging: 0.5
  • Amperage Rating: 0.025 A
  • Frequency Rating: 50/60 Hz
  • Voltage Rating: 250 V
  • ATEX File Number: 03ATEX 1203 U
  • CSA File Number: LR11714

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
  • Nema Rating: 3, 4, 4X
  • UL File Number: E12379

Overview

UPC 78393622547
GTiN 00783936225470
Size 1-35/64" H x 1-35/64" W x 5-3/8" L
Color Clear
Voltage 250 Volt
Type Long style pilot light operator
Applications G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Frequency 50/60 Hz
Wattage 3 Watt
Family Brand Name Killark
NEMA 3,4,4X
Actuator Pilot light
Amperage 0.025 Amp
