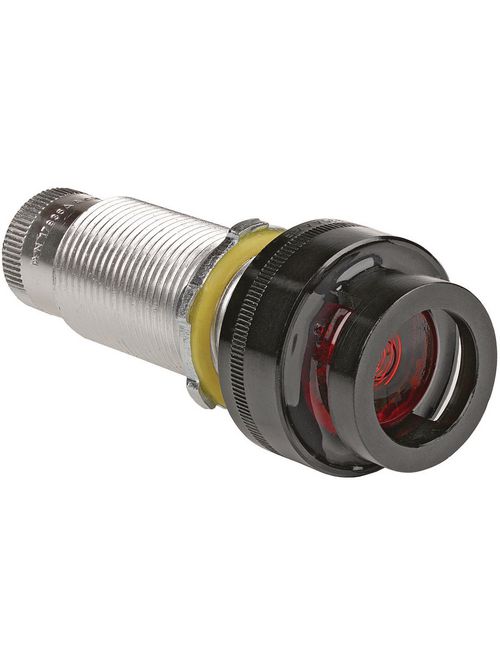

KLRK GOB3-R4C-N34 24 VOLT PILOT LIG
Product image thumbnail 0
Product image thumbnail 1
$243.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # GOB3-R4C N34
North Coast Part # 1337359

Features

  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4”-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.

Specifications

  • Actuator: Pilot Light
  • Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
  • Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
  • Color: Red
  • Operating Cycles: 10,000 hrs
  • Series: GO
  • Type: Indicator
  • UPC: 783936374994
  • Depth: 2-3/4
  • Gross Weight with Packaging: 0.36
  • Height: 2 in
  • Length: 6.75 in
  • Width: 2.25 in
  • Amperage Rating: 0.07 A
  • Frequency Rating: 50/60 Hz
  • Voltage Rating: 250 V
  • CSA File Number: LR11714

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
  • Nema Rating: 3, 4, 4X
  • UL File Number: E12379
  • Carton Quantity: 1

Overview

UPC 78393637499
GTiN 00783936374994
Length 6.75 in
Width 2.25 in
Size 1-35/64" H x 1-35/64" W x 5-3/8" L
Color Red
Voltage 250 Volt
Type Long style pilot light operator
Applications G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Height 2 in
Frequency 50/60 Hz
Wattage 1.7 Watt
Family Brand Name Killark
NEMA 3,4,4X
Actuator Pilot light
Amperage 0.07 Amp
