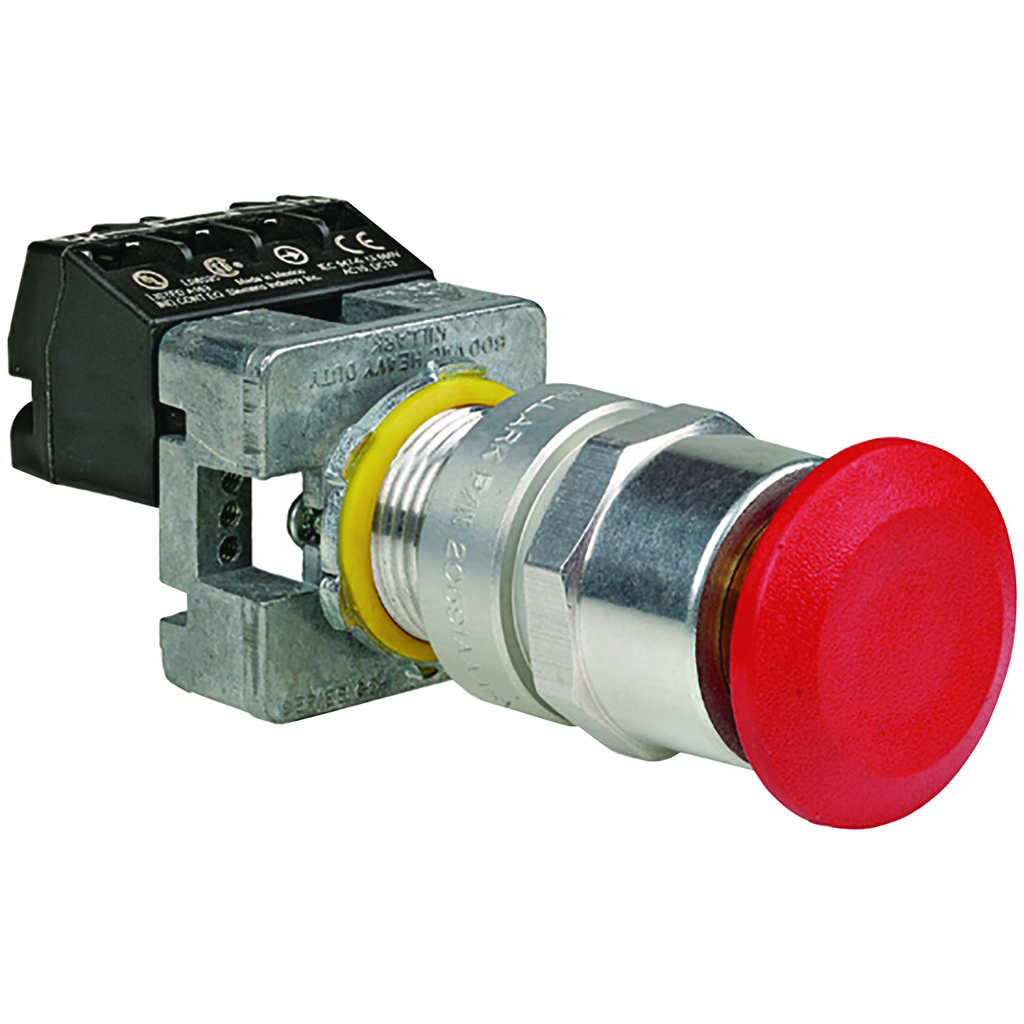

KLRK GOM1-RM3C-N34 RED MAINT LONG P

Features

• Operators are all aluminum except for certain movable parts which are stainless steel.
• All other parts such as screws are either stainless steel or plated steel.
• Threaded bodies are all 3/4”-14 NPSM thread.
• Control stations can be grouped into a single assembly thus reducing installation time and cost.

Specifications

• Action: Maintained
• Actuator: Mushroom Pushbutton
• Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
• Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• Number Of Poles: 1
• Series: GO
• Type: Push Buttons
• UPC: 783936224893
• Gross Weight with Packaging: 0.84
• Height: 2 in
• Length: 6.75 in
• Width: 2.25 in
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
• Frequency Rating: 50/60 Hz
• CSA File Number: LR11714

Hazardous Rating(s)

• Class I, Divisions 1 & 2, Groups B, C, D
• Class I, Zones 1 & 2, Groups IIB, IIA
• Class II, Divisions 1 & 2, Groups E, F, G
• Class III, Divisions 1 & 2

• Nema Rating: 3, 4, 4X
• UL File Number: E12379
• Carton Quantity: 1
