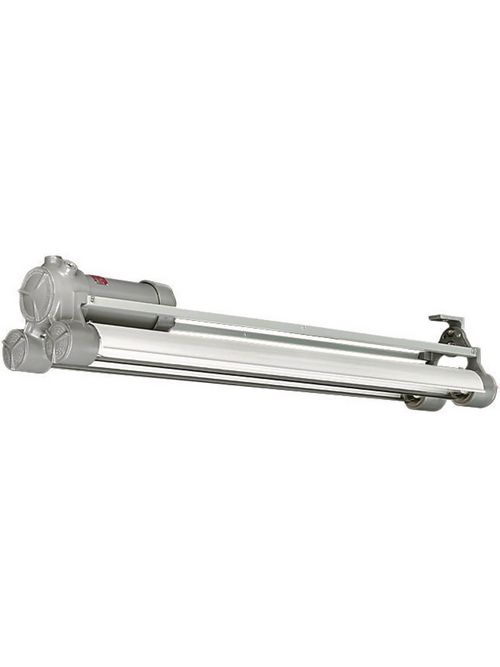

KLRK HFX-265-302 HFX 265MA(32W-T8)1
Product image thumbnail 0
Product image thumbnail 1
$7,633.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # HFX-265-302
North Coast Part # 543947

Features

UL Listed and labeled for use inside paint spray booths and rooms. Construction is strong lightweight corrosion resistant copper-free aluminum alloy, less than 4/10 of 1%. Class P ballast(s) with internal automatic thermally activated protective device. A

  • UL Listed and labeled for use inside paint spray booths and rooms
  • 2’ nominal compact models facilitate use in areas too small for nominal 4’ models, or where the light must be confined
  • Standard ballast is 120-277V at 50/60 Hz
  • 0°F starting temperature
  • Construction is strong lightweight corrosion resistant copper-free aluminum alloy, less than 4/10 of 1%
  • All external hardware is corrosion resistant 316 stainless steel
  • UL Listed externally fused ballast option protects fixture on line side of ballast, prevents ballast burnout
  • Suitable for use in both indoor and outdoor wet locations
  • Relamping easily accomplished by removing screw in cap and socket
  • Factory sealed construction

Specifications

  • Application: HFX Series fluorescent fixtures are designed for installations where moisture, dirt, dust, corrosion, and vibration may be present or NEMA 3 and 4X areas where wind, water, and snow can be expected.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Lamp Type: T8
  • Light Source: Linear Fluorescent
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Mounting Type: Pendant
  • Operating Cycles: 10,000 hrs
  • Optic Type: Glass Tubes
  • Series: HFX
  • Type: Aluminum Fluorescent Fixture
  • UPC: 783936288260
  • Dimensions: 58 in x 16.13 in x 15.13 in
  • Gross Weight with Packaging: 50
  • Height: 15.13 in
  • Hub Size: 3/4"
  • Length: 58 in
  • Width: 16.13 in
  • Frequency Rating: 50/60 Hz
  • Voltage Rating: 120-277 VAC
  • Wattage: 32 W

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393628826
GTiN 00783936288260
Length 58 in
Finish Powder Epoxy Paint
Width 16.13 in
Color Gray
Voltage 120-277 Volt
Type Aluminum fluorescent fixture
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Applications HFX Series fluorescent fixtures are designed for installations where moisture, dirt, dust, corrosion, and vibration may be present; or NEMA 3 and 4X areas where wind, water, and snow can be expected. They can also be used in locations made hazardous due t
Mounting Type Pendant
Height 15.13 in
Style Fluorescent fixture
Frequency 50/60 Hz
Wattage 32 Watt
Family Brand Name Killark
Lamp Type Fluorescent
Number of Lamps 0
Ballast Type T8 electronic fluorescent
Reflector Finish Aluminum reflector with white baked enamel finish
Hub Size 3/4 in
