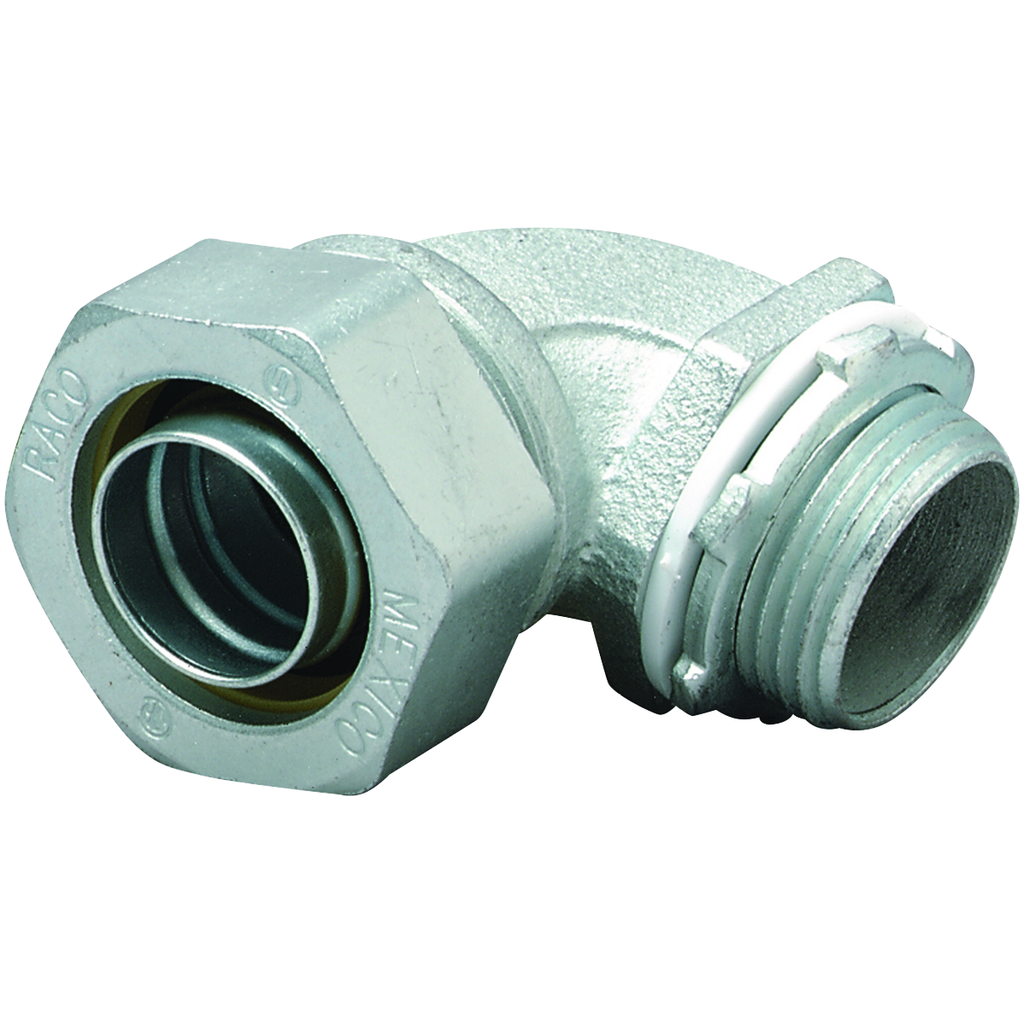

Hubbell Electrical Systems K0759 3/4 Inch Threaded Zinc Plated Steel Non-Insulated 90 Degrees Liquidtight Connector
$35.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # K0759
North Coast Part # 16437

Features

  • Split nylon gland ring for easy installation and greater comopression
  • Digging locknut
  • Sealing o-rings included
  • Reusable

Specifications

General

  • Color: Gray
  • Finish Type: Zinc Plated
  • Insulation Type: Non-insulated
  • Material: Steel
  • Series: K Series
  • Style: 90 Degree
  • Type: 90 Degree Liquidtight Non-Insulated Connector
  • UPC: 783936991177

Dimensions

  • Hub Size: 3/4"
  • Weight: 0.37 lb

Certifications and Compliance

  • CSA File Number: LR70873
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(B) (Class I, Division 2) or 502.10(A)(B) (Class II, Divisions 1 & 2) and 505.15(C) (Class I Zone 2).
  • UL File Number: E22699

Logistics

  • Carton Quantity: 25

Overview

UPC 78393699117
GTiN 00783936991177
Finish Zinc-Plated
Size 1-15/16" L x 1-3/8" W x 1-19/32" H
Color Gray
Type Steel/malleable iron liquidtight 90 bend non-insulated connector
Insulation Type Non-insulated
Material Steel
Applications Use with metallic and non-metallic conduit to seal out water, oil, and dust in applications for food processors, beverage and chemical plants, plastics fabricators, machine shops, etc. Liquidtight connectors are also suitable for use in hazardous location
Weight 0.37 lb
Style 90 Degree
Family Brand Name Killark
Hub Size 3/4 in
Sub Brand LIQUIDTIGHT
