Features

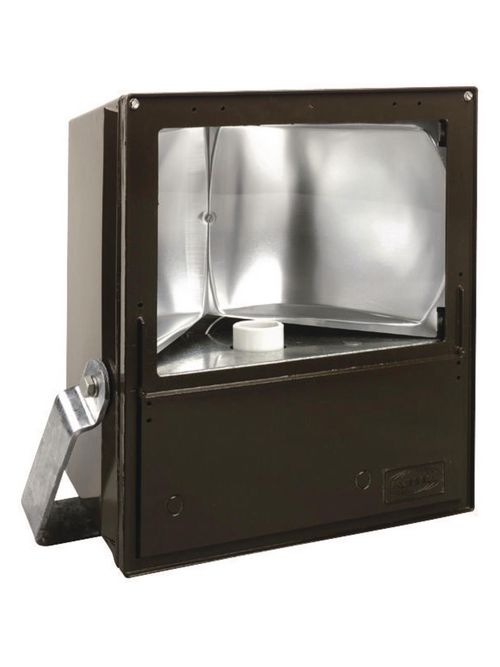

Rugged weathertight housing of copper-free aluminum with corrosion resistant bronze finish. Wide beam distribution. Thermal shock, impact-resistant lens. Continuous silicone gasketing. All external hardware is corrosion resistant including HubbellGard ceramic coated screws. Trunnion mounting-heavy gauge, hot dip galvanized steel mounting with stainless steel hardware. Photometric data & accessories - see page L191. 3/4" NPT entry on back lower left.
- Rugged weathertight housing of copperfree aluminum with corrosion resistant bronze finish
- Wide beam distribution
- Thermal shock, impact-resistant lens
- Continuous silicone gasketing
- All external hardware is corrosion resistant including HubbellGard® ceramic coated screws
- Trunnion mounting-heavy gauge, hot dip galvanized steel mounting with stainless steel hardware
- 3/4” NPT entry on back lower left
Specifications
- Application: KF Series floodlights can be used in industrial installations where flammable gases or vapors may exist due to abnormal conditions resulting in the creation of a Class I, Div. 2 hazardous location as defined by the NEC. Also can be used where general corrosive atmospheric conditions exist such as ocean piers, marinas, and costal areas. Designed for heavy duty applications where long life and maintenance-free service are essential.
- Color: Bronze
- Finish Type: Powder Epoxy Paint
- Lamp Type: Mogul Base
- Light Source: Metal Halide
- Material: Aluminum, Copper Free (less than 4/10 of 1%)
- Mounting Type: Trunnion
- Number of Lamps: 0
- Operating Cycles: 10,000 hrs
- Optic Type: Glass Lens
- Series: KF
- Type: Aluminum Metal Halide Floodlight
- UPC: 783936384368
- Dimensions: 18.5 in x 10.5 in x 28.75 in
- Gross Weight with Packaging: 47.52
- Height: 28.75 in
- Length: 18.5 in
- Width: 10.5 in
- Frequency Rating: 60 Hz
- Initial Lumens: 105400
- Voltage Rating: Quad - 120/277/347/480 VAC
- Wattage: 1000 W
Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D
- Class I, Zone 2, Groups IIC, IIB, IIA
- Class II, Division 2, Groups F, G
- Class III, Divisions 1 & 2
