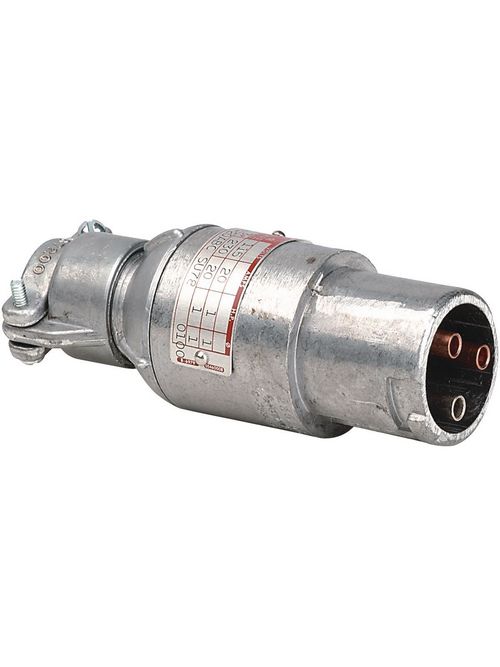

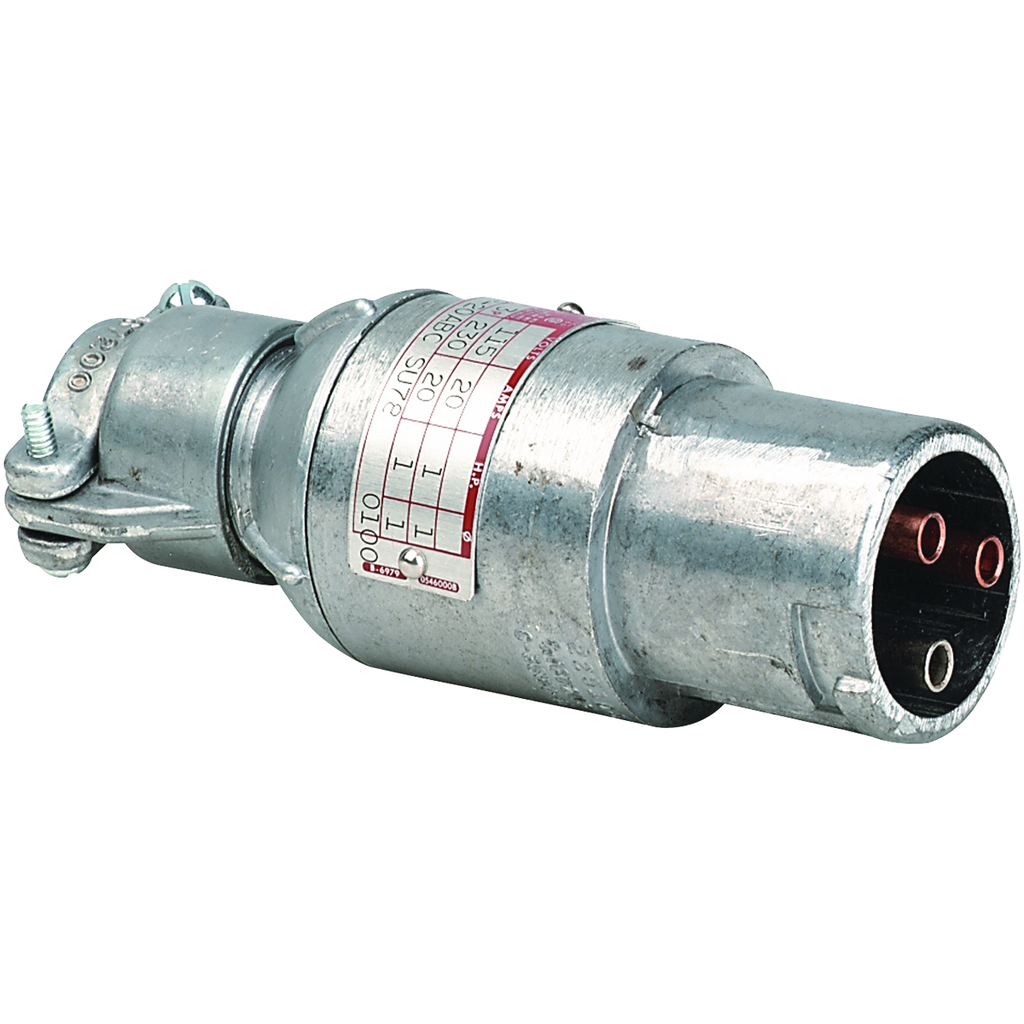

KLRK KP-304D45 CL1 30A 3W4P PLUG .6
$891.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # KP-304D45
North Coast Part # 17360

Features

  • Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
  • Solder Terminations for sure connection
  • Copper free aluminum housing
  • Delayed action contacts ensure safe interconnect
  • Wide range of grommet openings
  • Extra long grounding pin makes contact first and breaks contact last

Specifications

General

  • Color: Gray
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Number Of Poles: 3
  • Operating Cycles: 10,000 operations
  • Receptacle Type: Delayed Action
  • Series: KP
  • Type: Pin & Sleeve
  • UPC: 783936370071

Dimensions

  • Gross Weight with Packaging: 0.97
  • Height: 3.5 in
  • Length: 7.75 in
  • Width: 3.5 in

Electrical Ratings

  • Amperage Rating: 30 A

Conductor Related

  • Number Of Wires: 4
  • Wire Size: #6 AWG to #14 AWG

Certifications and Compliance

  • Nema Rating: 3, 4, 4X

Application

  • KP Series plugs are suitable: in hazardous locations due to the presence of flammable vapors or gases
  • where a heavy duty plug and receptacle is necessary
  • where a connection is required for portable or movable equipment such as tools, motors, hand lights

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB,IIA

Overview

UPC 78393637007
GTiN 00783936370071
Length 7.75 in
Width 3.5 in
Size 1-7/8" H x 1-7/8" W x 6-1/4" L
Color Gray
Type Aluminum 30 amp plug
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Product Series KP
Cord Type G, W, S, SO, STO, or similar
Applications KP Series plugs are suitable: in hazardous locations due to the presence of flammable vapors or gases; where a heavy duty plug and receptacle is necessary; where a connection is required for portable or movable equipment such as tools, motors, hand lights
Height 3.5 in
Wire Size 14-6 AWG
Family Brand Name Killark
NEMA 3,4,4X
Amperage 30 Amp
Number of Poles 3 Pole
Number of Wires 4
Voltage null
