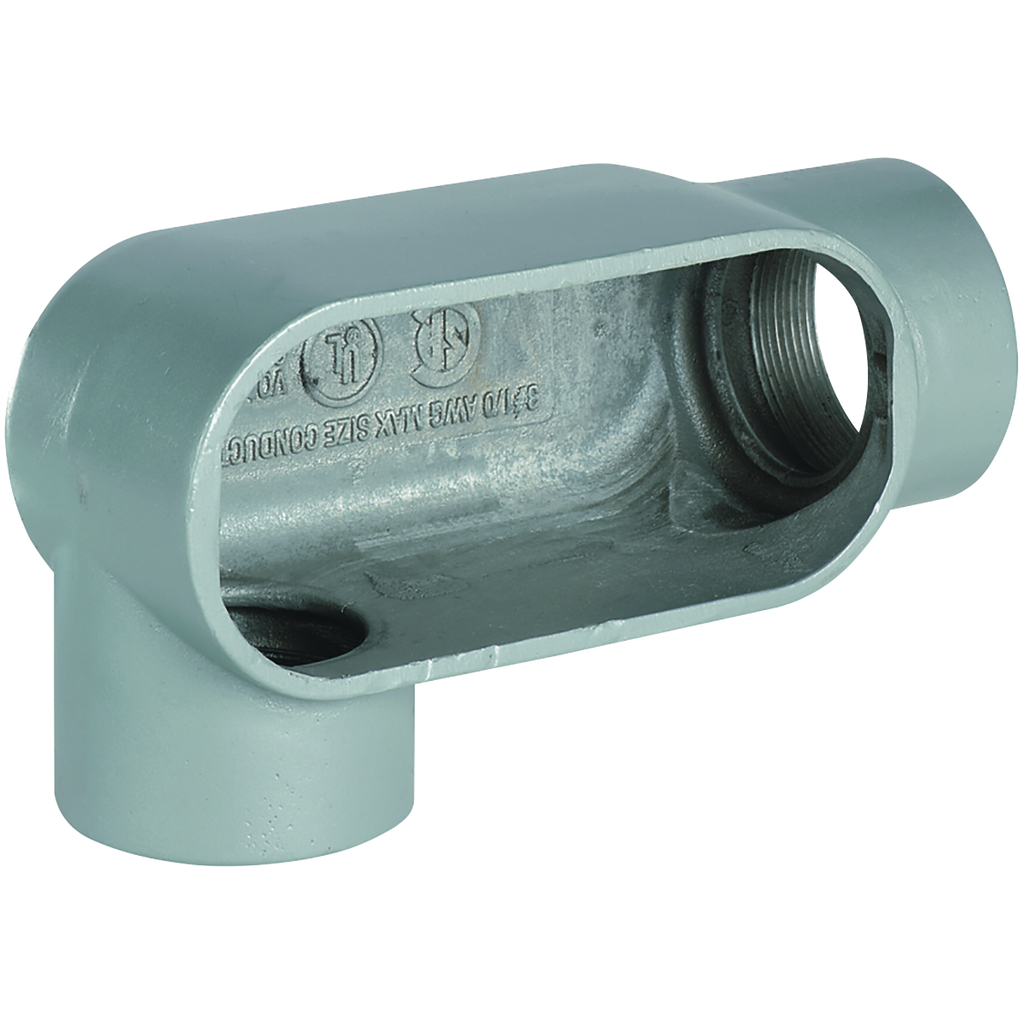

Hubbell Electrical Systems LR17SA 1/2 Inch Copper Free Aluminum Type LR Conduit Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # LR17SA
North Coast Part # 156877

Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
  • Suitable for wet locations when used with gaskets.
  • High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
  • Innovative spring clip design for installation ease and repeat usage.
  • For use with threaded rigid conduit steel or aluminum.
  • Flat-back design for greater wiring capacity and mounting stability.
  • Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cable

Specifications

  • Buy American Compliant: Contact Manufacturer
  • Color: Gray
  • Country of Origin: MX
  • Dimensions: 5 in x 3 in x 2 in
  • Each - Height: 2.000 in
  • Each - Length: 5.000 in
  • Each - Width: 3.000 in
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
  • Height: 2 in
  • Hub Size: 1/2"
  • Length: 5 in
  • Width: 3 in
  • CSA File Number: LR11852
  • UL File Number: E3397
  • Gross Weight with Packaging: 0.33
  • Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: LR
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: Duraloy 7
  • Type: Conduit Body

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783936080208
Length 5 Inch
Finish Powder Epoxy Paint
Width 3.000 in
Color Gray
Type Non-Reversing
Material Aluminum
Applications To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height 2 Inch
Family Brand Name Killark
Hub Size 1/2 in
Sub Brand CORROSAFE 7
Product UPC 78393608020
Country of Origin Mexico
