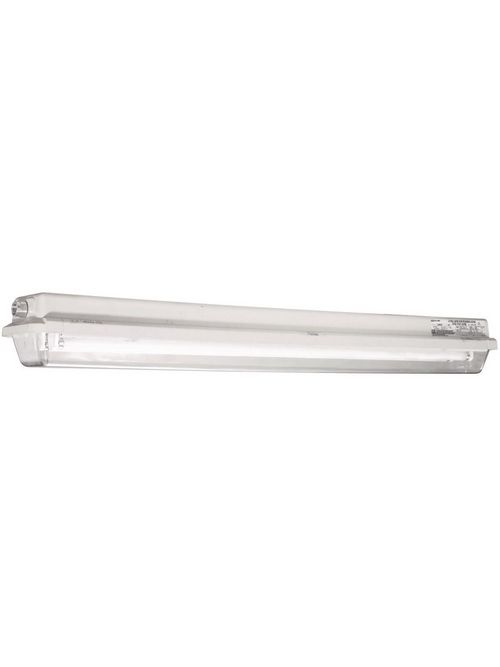

KLRK LZ2N28230 LZ 4' 2L 28W FLUOR 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,446.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # LZ2N28230
North Coast Part # 828402

Features

  • Lexan® Clear Lens, impact resistant polycarbonate
  • Housing-one piece fiberglass reinforced polyester, NEMA 4X & IP66 rated.
  • Two 3/4” NTP aluminum hubs - one at each end (includes one 3/4” close-up plug and two 3/4” x 1/2” reducers for maximum user flexibility)
  • Two 1/4”-20 aluminum bushings furnished in top of fixture for threaded rod
  • 2’ and 4’ luminaries
  • Lamp types Linear 17, 28, 32, 40, 44, 54, 60W Long compact 40, 55W (single ended)
  • Electronic ballast standard
  • World voltage (most models) 120 thru 277V, 50/60 Hz
  • Housing-one piece fiberglass reinforced polyester, NEMA 4X and IP66 rated. Lexan clear lens, impact resistant polycarbonate. Two 3/4" NTP aluminum hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flexib

Specifications

  • Color: White
  • Country of Origin: US
  • Dimensions: 4.5 in x 1 in x 6.5 in
  • Each - Height: 6.500 in
  • Each - Length: 4.500 in
  • Each - Width: 1.000 in
  • Hazardous Rating(s): Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
  • Height: 6.5 in
  • IP Rating: IP66
  • Length: 4.5 in
  • Optic Type: Polycarbonate Lens - Clear
  • Show Add To ProjectList: Yes
  • Voltage Rating: 120-277 VAC
  • Width: 1 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78393639513
Item Long Description LZ2N Series - Non-Metallic 28 Watt Fluorescent Light Fixture (Two 4-Foot Lamps Not Included) - Double-Ended Lamp Type - 120-277V At 50/60Hz- Hub Size 3/4 Inch NPT
GTiN 00783936395135
Length 4.5 in
Finish Natural
Width 1 in
Color White
Voltage 120-277 Volt
Type Non-metallic fluorescent fixture
Material Fiberglass Reinforced,Polyester
Applications LINEARLITE rugged non-metallic fluorescent fixtures are suitable for wet, harsh, and hazardous locations. Use where enclosed and gasketed fixtures are required to withstand exposure to moisture, dust, and corrosives. The LZ2N Series can also be used in Cl
Height 6.5 in
Style Double-ended lamp type fluorescent fixture
Frequency 50/60 Hz
Wattage 28 Watt
Family Brand Name Killark
Lamp Type Linear fluorescent
Number of Lamps 0
Ballast Type T5 electronic fluorescent
Reflector Finish Steel reflector
IP Rating IP66
Sub Brand LINEARLITE
