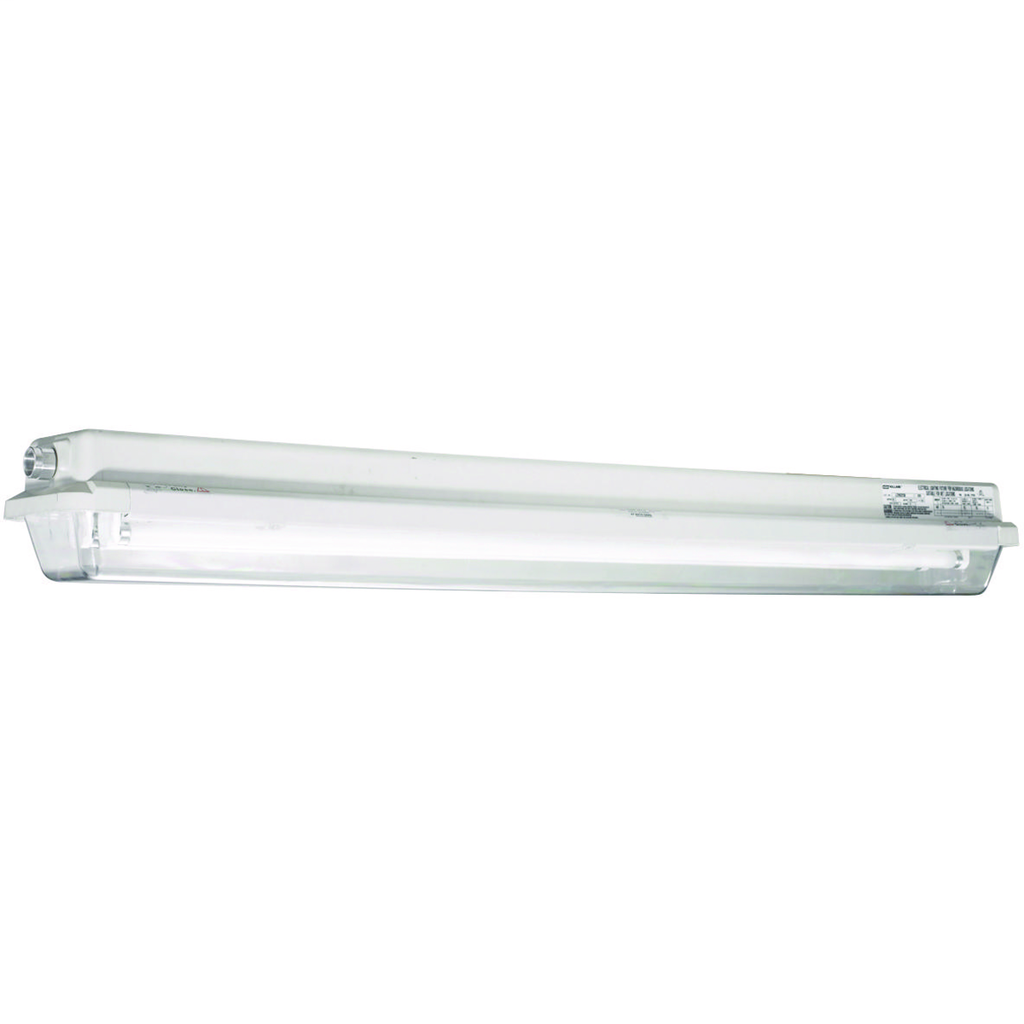

KLRK LZ2NE2-32230 LZ2N 4' 32W 2 L 1
$3,420.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # LZ2NE2-32230
North Coast Part # 755951

Features

NEMA 4X and IP66 rated enclosure. Housing - one pices fiberglass reinforced polyester. Clear Lexan impact resistant polycarbonate lens. Two 3/4" NPT hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flex

  • NEMA 4 & IP66 rated enclosure
  • Housing-one piece fiberglass reinforced polyester or 316 Stainless Steel
  • Clear Lexan® impact resistant polycarbonate lens
  • Two 3/4” NTP hubs - one at each end (includes one 3/4” close-up plug and two 3/4” X 1/2” reducers for maximum user flexibility)
  • Two 1/4”- 20 bushings furnished in top of fixture for threaded rod

Specifications

  • Color: White
  • Finish Type: Natural
  • Lamp Type: T8
  • Light Source: Linear Fluorescent
  • Material: Polyester, Fiberglass Reinforced

Mounting Type

  • Pendant
  • Surface
  • Number of Lamps: 0
  • Optic Type: Polycarbonate Lens - Clear
  • Reflector Type: Steel Reflector
  • Series: LZ2NE
  • Type: Non-Metallic Normal And Emergency Power Fluorescent Fixture
  • UPC: 783936395296
  • Dimensions: 55.5 in x 8.75 in x 6 in
  • Gross Weight with Packaging: 26
  • Height: 6 in
  • Length: 55.5 in
  • Width: 8.75 in
  • Frequency Rating: 60 Hz
  • Voltage Rating: 120-277 VAC
  • Wattage: 32 W

Hazardous Rating(s)

  • Class I, Division 2, Groups A, B, C, D
  • Class I, Zone 2, Groups IIC, IIB, IIA
  • Class II, Division 2, Groups F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393639529
GTiN 00783936395296
Length 55.5 in
Finish Natural
Width 8.75 in
Color White
Voltage 120-277 Volt
Type Non-metallic normal and emergency power fluorescent fixture
Material Fiberglass Reinforced,Polyester
Applications LINEARLITE emergency lighting fixtures provide continuous illumination under normal power and switch to emergency battery back-up during power outages. Units contain a battery unit that provides the OSHA required 90 minutes of illumination for egress. Un
Height 6 in
Style Double-ended lamp type fluorescent fixture
Frequency 60 Hz
Wattage 32 Watt
Family Brand Name Killark
Lamp Type Linear fluorescent
Number of Lamps 0
Ballast Type T8 electronic fluorescent and emergency fluorescent
Reflector Finish Steel reflector
Sub Brand LINEARLITE E
