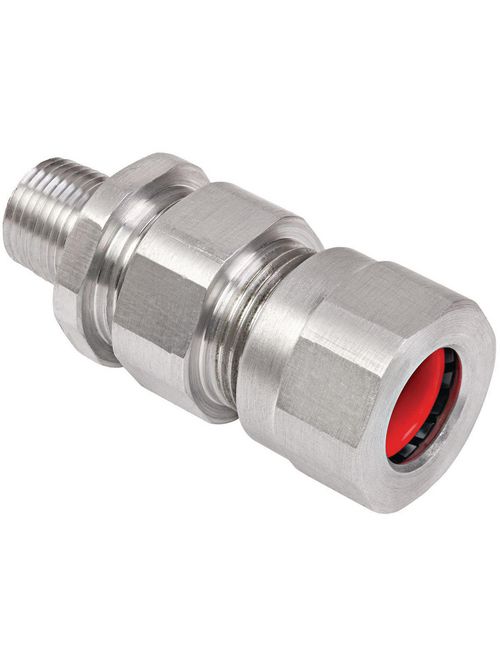

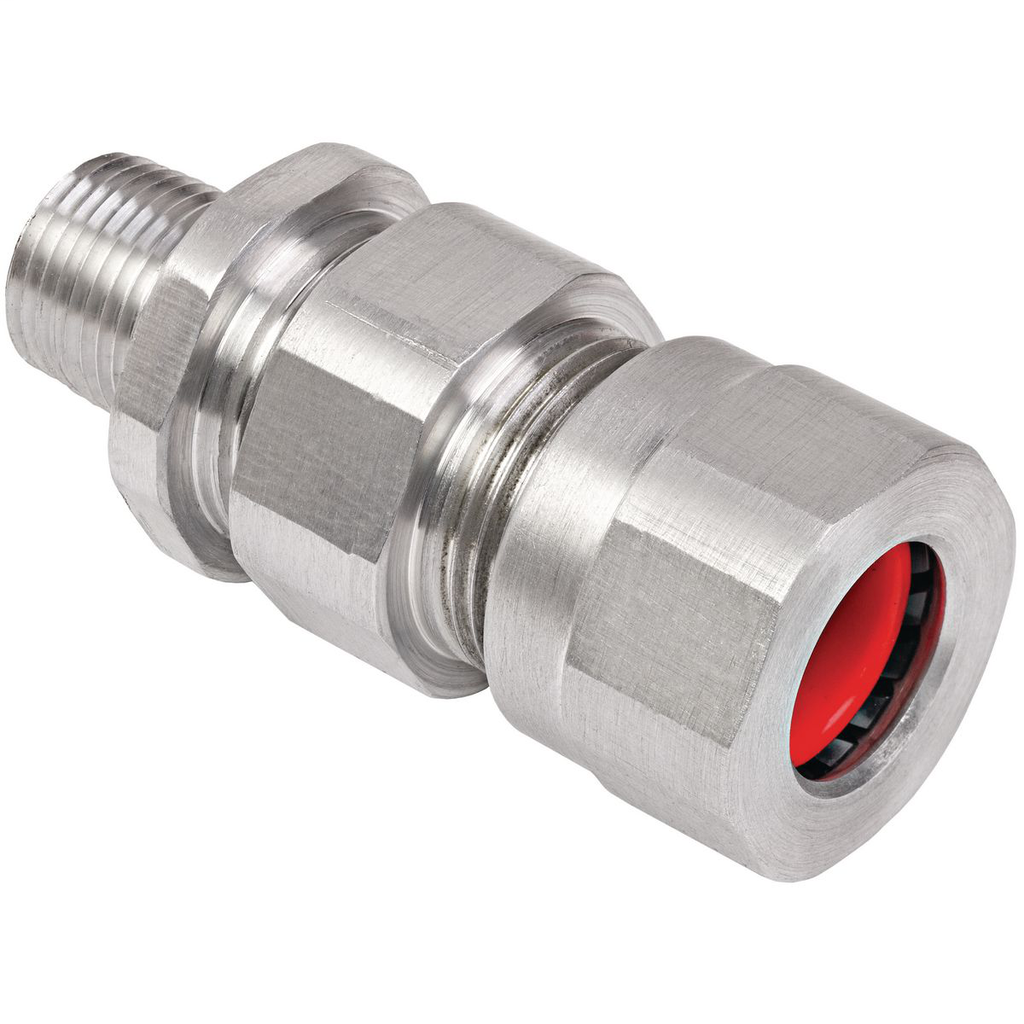

KLRK MC3 MC FITTING AL 1" NPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$106.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # MC3
North Coast Part # 1608249

Features

  • 360° armor grounding spring is reusable
  • Copper free aluminum construction for harsh, corrosive and certain hazardous locations
  • Provides sealing back nut plus inner o-ring seal to prevent moisture ingress to the cable armor and enclosure
  • Robust threads and world class seal enables easy installation with minimal torque required
  • 360° armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for hostile, corrosive, and certain hazardous locations.

Specifications

  • Color: Silver
  • Country of Origin: US
  • Dimensions: 4 in x 2 in x 3 in
  • Each - Height: 3.000 in
  • Each - Length: 4.000 in
  • Each - Width: 2.000 in
  • Height: 3 in
  • Hub Size: 1"
  • Length: 4 in
  • Show Add To ProjectList: Yes
  • Width: 2 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78393696061
Item Long Description MC Series - Aluminum Cable Connector 1" NPT
GTiN 00783936960616
Length 4 in
Finish Natural
Width 2 in
Size 3.63" L x 1.31" W x 1.31" H
Color Silver
Type Aluminum cable connector
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Product Series MC
Applications Designed for use with jacketed interlocked, continuously corrugated and welded armor cable. Install where it is essential to provide positive grounding to the cable and for a Type 3, 4 connection.
Height 3 in
Temperature Rating -50 To 60 C
Family Brand Name Killark
Hub Size 1 in
Sub Brand CLENCHER
