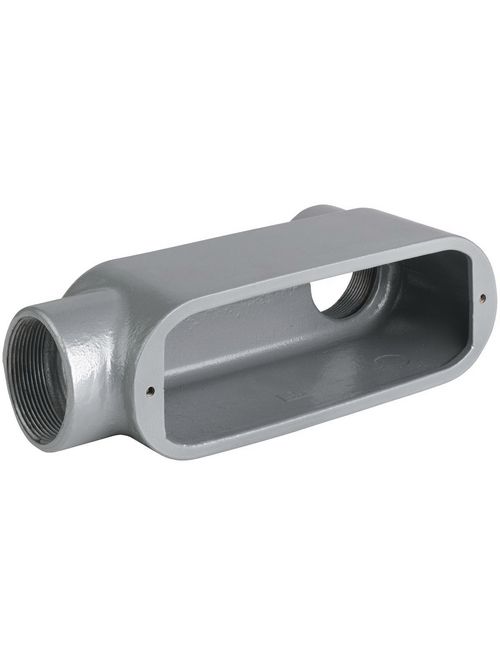

Hubbell Electrical Systems OLB-1 1/2 Inch Copper Free Aluminum Type LB Conduit Body
Product image thumbnail 0
Product image thumbnail 1
$6.38/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # OLB-1
North Coast Part # 160127

Features

Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.

  • Raintight when used with gasketed covers.
  • Malleable iron suitable for use in concrete.
  • Interchangeable with competitive products.
  • Stainless steel screws on stamped and cast covers.
  • Tapered threaded hubs (NPT).

Specifications

General

  • Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: LB
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: O Series
  • Type: Conduit Body
  • UPC: 783936490250

Dimensions

  • Gross Weight with Packaging: 0.26
  • Height: 3 in
  • Hub Size: 1/2"
  • Length: 5 in
  • Weight: 0.26 lb
  • Width: 2 in

Certifications and Compliance

  • CSA File Number: LR11852
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
  • UL File Number: E3397

Logistics

  • Carton Quantity: 10
> View Substitutes (1)

Overview

UPC 78393649025
GTiN 00783936490250
Length 5 in
Finish Gray Powder Coat, Untreated
Width 2 in
Color Gray
Type Aluminum conduit body
Material Copperfree Aluminum
Applications To Provide Access to Conductors for Pulling, Splicing, and Maintenance, Rigid Conduit and IMC
Height 3 in
Weight 0.26 lb
Family Brand Name Killark
Hub Size 1/2 in
TC Connection Taper Threaded NPT
Blade Dimensions 4-17/32 in L x 1-3/8 in W x 2.28125 in H
