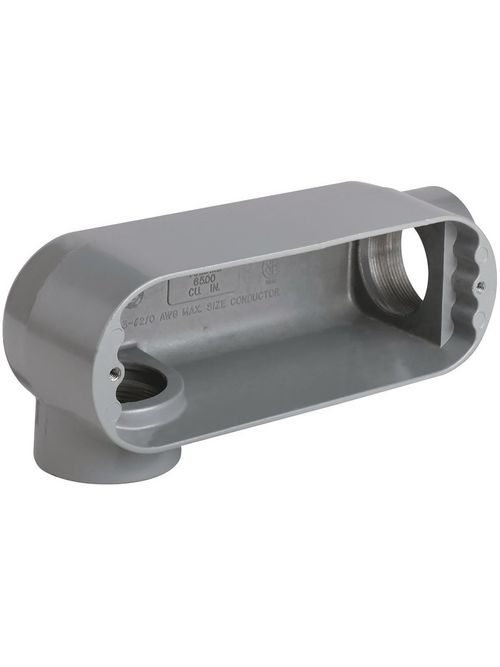

Hubbell Electrical Systems OLR-2 3/4 Inch Copper Free Aluminum Type LR Conduit Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.19/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # OLR-2
North Coast Part # 161399

Features

  • Raintight when used with gasketed covers.
  • Malleable iron suitable for use in concrete.
  • Interchangeable with competitive products.
  • Stainless steel screws on stamped and cast covers.
  • Tapered threaded hubs (NPT).
  • Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 7 cu. in.

Specifications

  • Buy American Compliant: Contact Manufacturer
  • Color: Gray
  • Country of Origin: US
  • Dimensions: 6 in x 3 in x 2 in
  • Each - Height: 2.000 in
  • Each - Length: 6.000 in
  • Each - Width: 3.000 in
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
  • Height: 2 in
  • Hub Size: 3/4"
  • Length: 6 in
  • Show Add To ProjectList: Yes
  • Width: 3 in
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/KIL_OLR-2.stp

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78393649052
Item Long Description 3/4" LR Hub, Aluminum O Series Conduit Body
GTiN 00783936490526
Length 6 in
Finish Gray Powder Coated
Width 3 in
Color Gray
Type Aluminum conduit body
Material Copper-Free Aluminum
Applications To Provide Access to Conductors for Pulling, Splicing, and Maintenance, Rigid Conduit and IMC
Height 2 in
Weight 0.36 lb
Trade Size 3/4 Inch
Family Brand Name Killark
TC Connection NPT
Blade Dimensions 5-3/8 in L x 2.1875 in W x 1.625 in H
Hub Size 3/4 in
