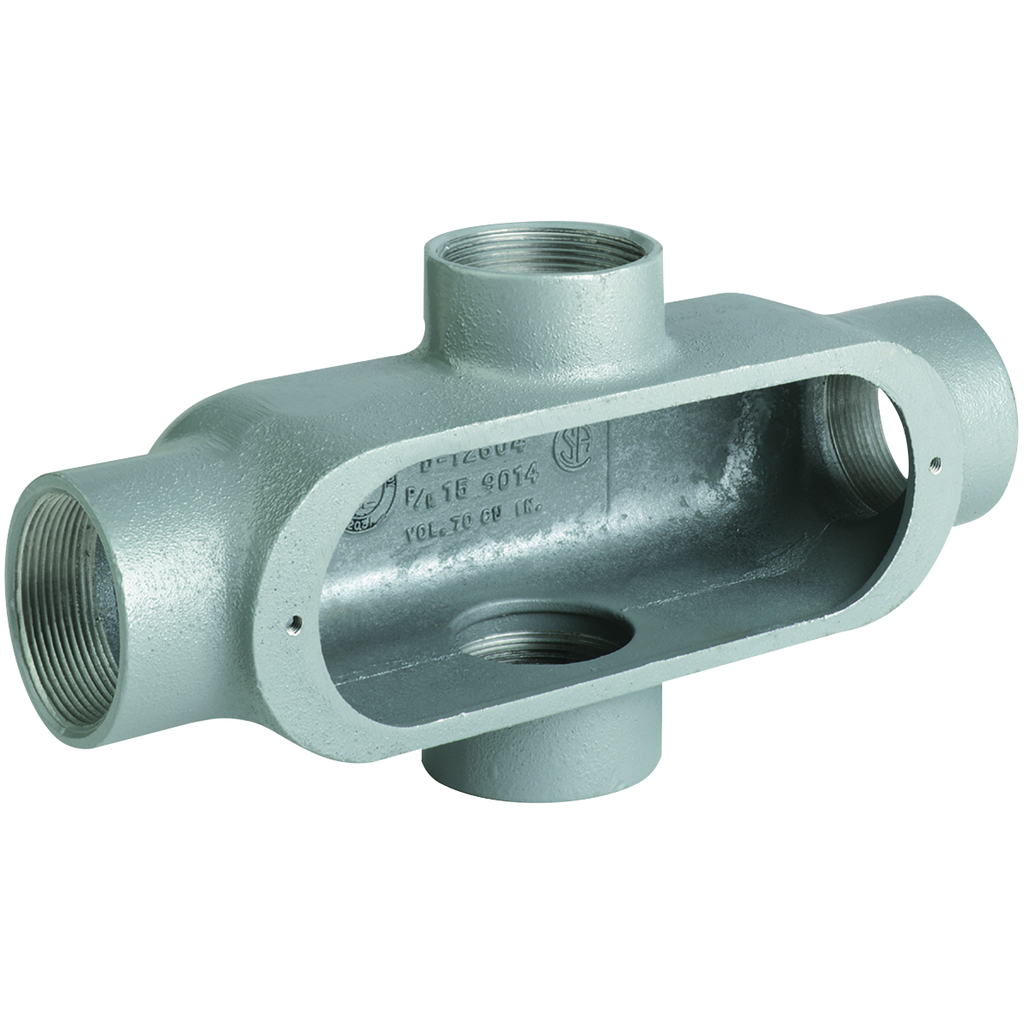

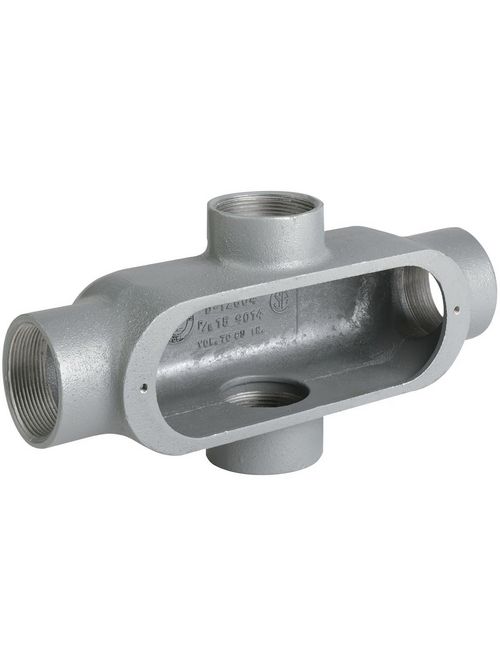

Hubbell Electrical Systems OX-4M 1-1/4 Inch Malleable Iron Type X Conduit Body
$92.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # OX-4M
North Coast Part # 1834191

Features

Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.

  • Raintight when used with gasketed covers.
  • Malleable iron suitable for use in concrete.
  • Interchangeable with competitive products.
  • Stainless steel screws on stamped and cast covers.
  • Tapered threaded hubs (NPT).

Specifications

General

  • Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: X
  • Material: Iron
  • Series: O Series
  • Type: Conduit Body
  • UPC: 783936480947

Dimensions

  • Gross Weight with Packaging: 3.8
  • Height: 3 in
  • Hub Size: 1-1/4"
  • Length: 10 in
  • Width: 5 in

Certifications and Compliance

  • CSA File Number: LR11852
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
  • UL File Number: E3397

Overview

UPC 78393648094
GTiN 00783936480947
Length 10 in
Finish Powder Epoxy Paint
Width 5 in
Color Gray
Type Iron conduit body
Material Iron
Applications To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height 3 in
Family Brand Name Killark
Hub Size 1-1/4 in
Sub Brand DURALOY 5
