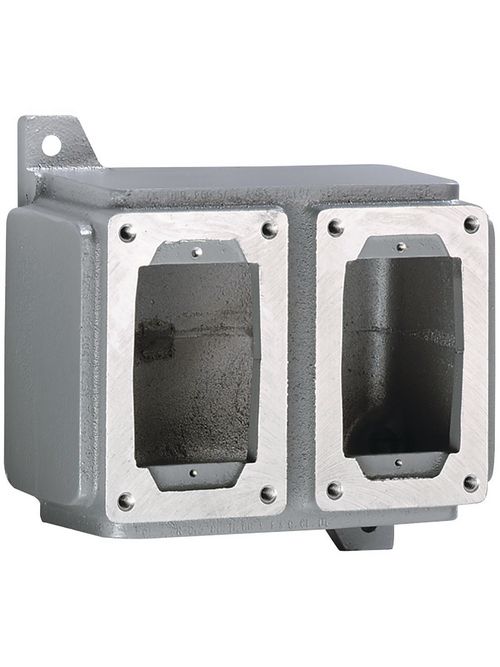

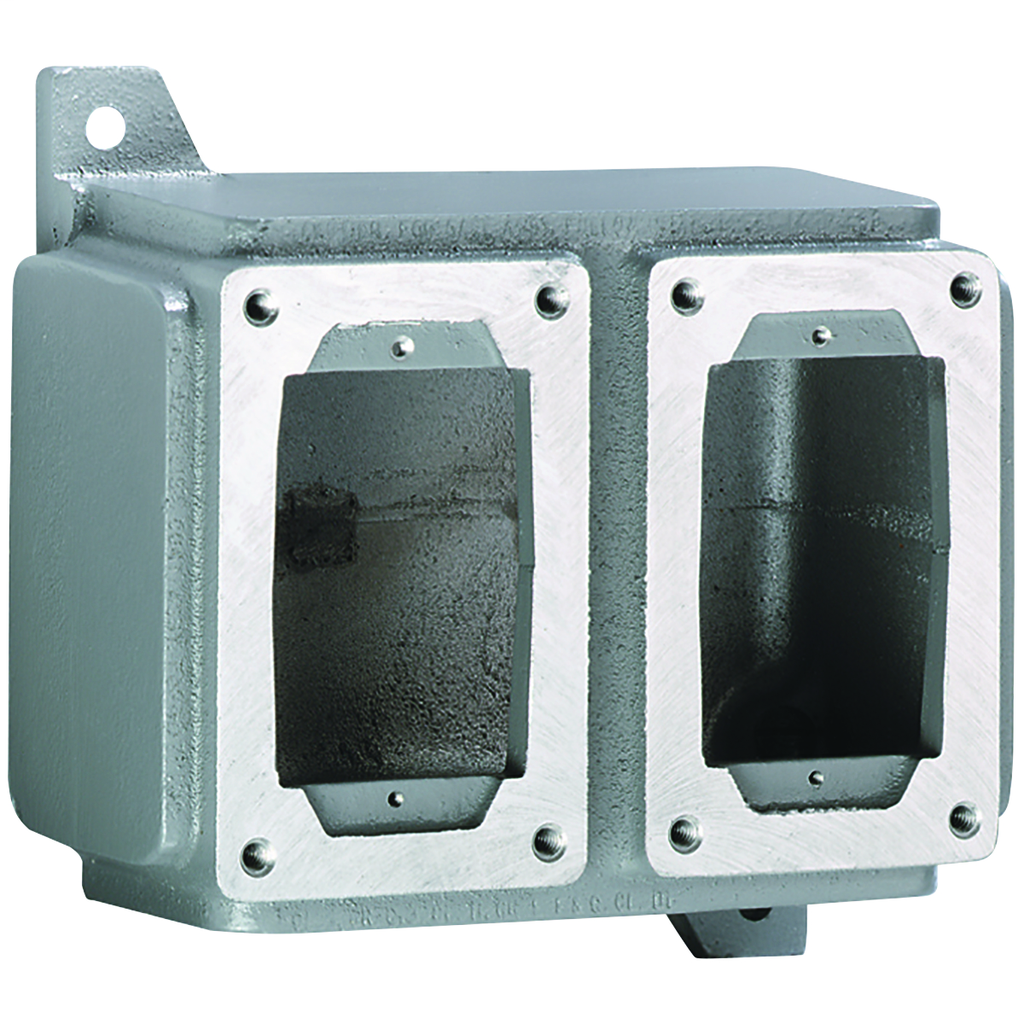

Hubbell Electrical Systems SWB-18 1-1/2 Inch Copper Free Aluminum Type Deep Conduit Device Box
$272.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # SWB-18
North Coast Part # 64888

Features

  • Copper free cast aluminum alloy.
  • Designed for custom drilled and tapped conduit openings on all four sides and the back.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Accepts both miniature and standard size push buttons.
  • Internal ground screw.

Specifications

General

  • Application: Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
  • Color: Gray
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Mounting Type: Wall
  • Series: SWB
  • Type: Aluminum Device Body
  • UPC: 783936630205

Dimensions

  • Depth: 3-5/16
  • Gross Weight with Packaging: 5.44
  • Height: 6.75 in
  • Hub Size: Max. 1-1/2"
  • Length: 8.75 in
  • Weight: 5.44 lb
  • Width: 6 in

Certifications and Compliance

  • CSA File Number: LR11712
  • UL File Number: E53360

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393663020
GTiN 00783936630205
Length 8.75 in
Width 6 in
Size 5-1/4" L x 7-1/8" W x 3-5/16" D
Color Gray
Type Aluminum device body
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Product Series SWB
Applications Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
Mounting Type Wall
Height 6.75 in
Weight 5.44 lb
Family Brand Name Killark
Hub Size 1-1/2 in
Enclosure Aluminum enclosure
