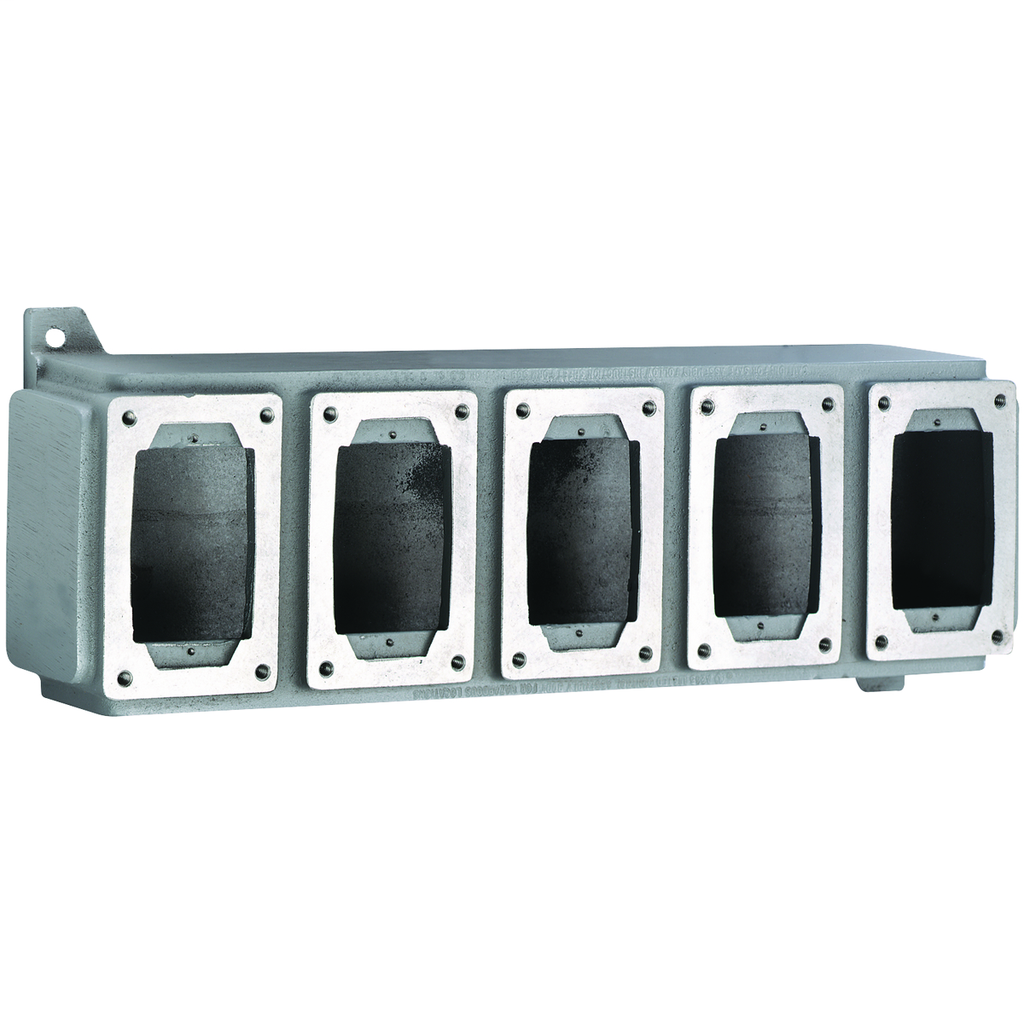

KLRK SWB-21 DEEP DEVICE BODIES 1-1/

Features

• Copper free cast aluminum alloy.
• Designed for custom drilled and tapped conduit openings on all four sides and the back.
• Ground flange joint between bolted cover and box provide required flame path.
• Accepts both miniature and standard size push buttons.
• Internal ground screw.
• Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from 1/2” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.

Specifications

• Color: Gray
• Country of Origin: US
• Depth: 3-5/16
• Dimensions: 18.25 in x 6.75 in x 6.125 in
• Each - Height: 6.125 in
• Each - Length: 18.250 in
• Each - Width: 6.750 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height: 6.125 in
• Hub Size: Max. 1-1/2"
• Length: 18.25 in
• Show Add To ProjectList: Yes
• Width: 6.75 in
• STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/KIL_SWB-21.stp

Certifications

• EU RoHS Indicator: Contact Manufacturer
