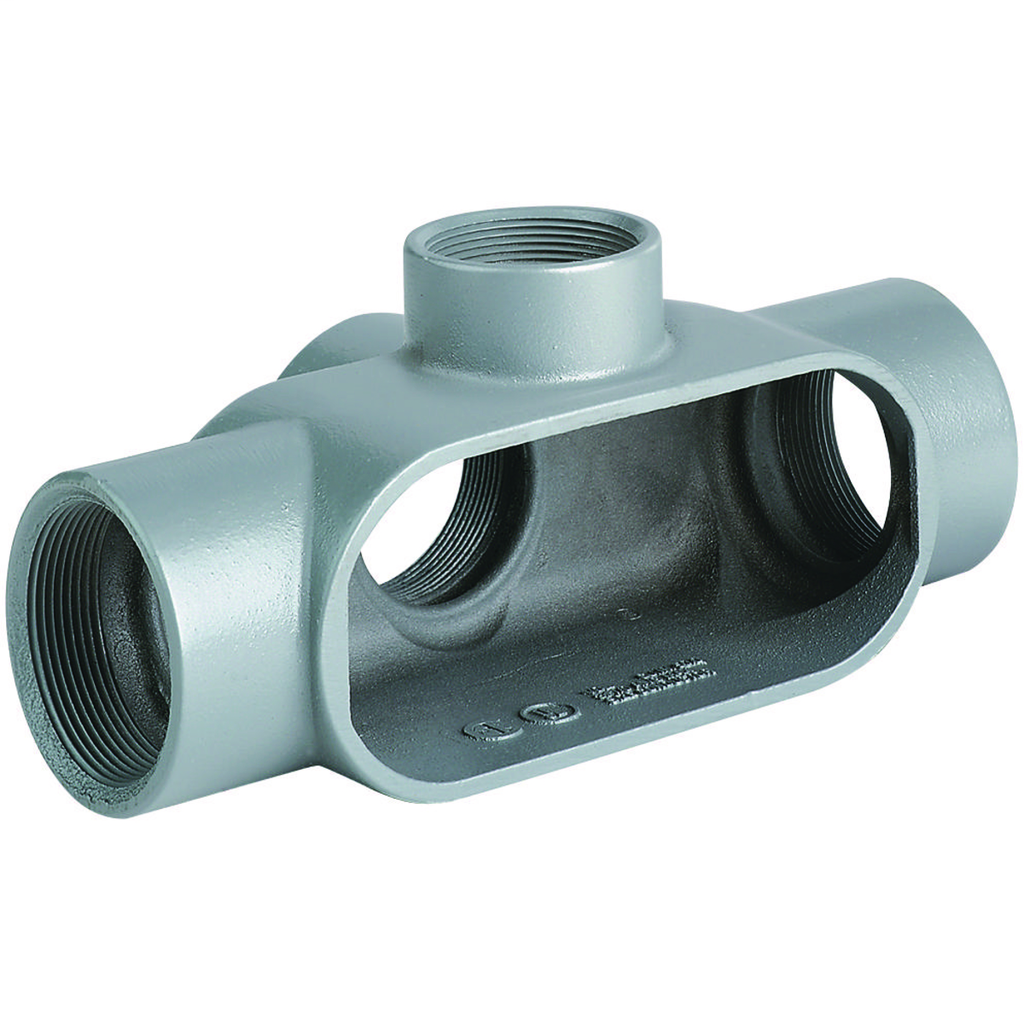

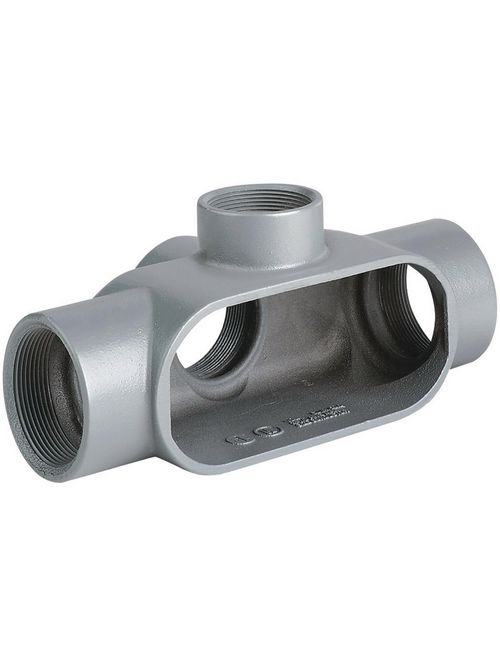

KLRK TA47SA CORROSAFE7 1-1/4" TA CO
$94.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # TA47SA
North Coast Part # 157389

Features

Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
  • Suitable for wet locations when used with gaskets.
  • High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
  • Innovative spring clip design for installation ease and repeat usage.
  • For use with threaded rigid conduit steel or aluminum.
  • Flat-back design for greater wiring capacity and mounting stability.

Specifications

General

  • Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
  • Color: Gray
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: TA
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: Duraloy 7
  • Type: Conduit Body
  • UPC: 783936080673

Dimensions

  • Gross Weight with Packaging: 1.2
  • Height: 4 in
  • Hub Size: 1-1/4"
  • Length: 8 in
  • Width: 4 in

Certifications and Compliance

  • CSA File Number: LR11852
  • Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
  • UL File Number: E3397

Overview

UPC 78393608067
GTiN 00783936080673
Length 8 in
Finish Powder Epoxy Paint
Width 4 in
Color Gray
Type Aluminum conduit body
Material Copper Free (less Than 4,10 Of 1%),Aluminum
Applications To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height 4 in
Family Brand Name Killark
Hub Size 1-1/4 in
Sub Brand CORROSAFE 7
