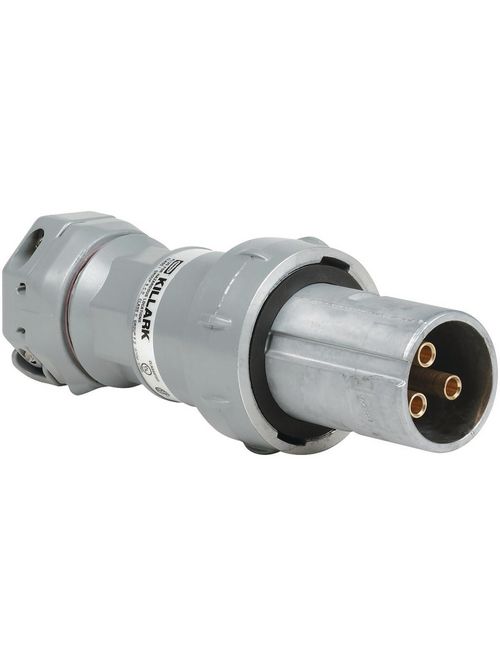

Hubbell Electrical Systems VP10477 100 Amp 600 VAC 250 VDC 4-Pole 4-Wire Plug Assembly
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # VP10477
North Coast Part # 16557


  • Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
  • Insulators have high mechanical and dielectric strength.
  • “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
  • Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Includes suitability for Type P marine cable.


  • Application: Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
  • Finish Type: Baked Powder Epoxy/Polyester Finish
  • Grommet Range: 0.88-1.68
  • Material: Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
  • Series: VersaMate
  • Style: Style I
  • Type: Pin & Sleeve
  • UPC: 783936834757
  • Height: 4.25 in
  • Length: 10.87 in
  • Width: 4.25 in
  • Amperage Rating: 100 A
  • Frequency Rating: 50-400 Hz

Voltage Rating

  • 600 VAC
  • 250 VDC
  • Number Of Wires: 4


UPC 78393683475
GTiN 00783936834757
Length 10.87 in
Finish Baked Powder Epoxy/Polyester Finish
Width 4.25 in
Size 4-1/4" H x 4-1/4" W x 10-7/8" L
Color Gray
Type Aluminum NEMA 4X metallic plug
Material Body-Copper-free Aluminum,Contacts-Brass,External Screws-316 Stainless Steel,Spring Tensioner-Patented Beryllium Copper
Cord Type G, W, S, SO, STO, or similar
Applications VERSAMATE metallic pin and sleeve plugs are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indo
Height 4.25 in
Style Style I
Wire Size 4-2 AWG (Regular)/4-3 AWG (Extra Flex)
Frequency 50-400 Hz
Family Brand Name Killark
Amperage 100 Amp
Number of Poles 4 Pole
Number of Wires 4
Voltage 600//250 VAC//VDC
