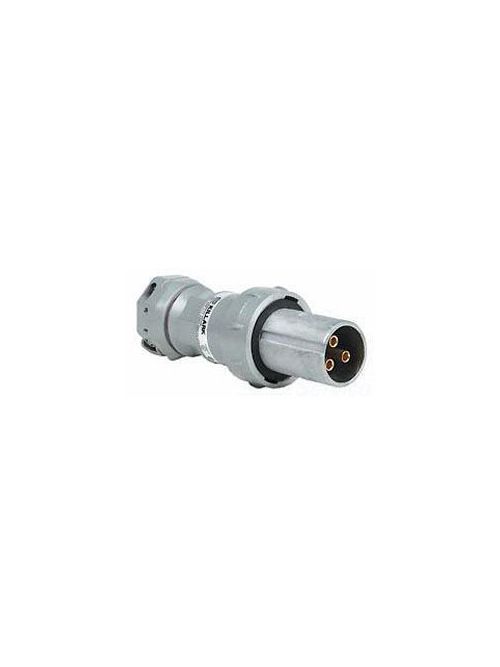

Hubbell Electrical Systems VP10487 100 Amp 600 VAC 250 VDC 4-Pole 3-Wire Plug Assembly
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,026.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # VP10487
North Coast Part # 16625

Features

  • Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
  • Insulators have high mechanical and dielectric strength.
  • “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
  • Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Includes suitability for Type P marine cable.
  • VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.

Specifications

  • Country of Origin: US
  • Dimensions: 10.87 in x 4.25 in x 4.25 in
  • Each - Height: 5.000 in
  • Each - Length: 12.000 in
  • Each - Width: 5.125 in
  • Height: 4.25 in
  • Length: 10.87 in
  • Voltage Rating: 600 VAC;250 VDC
  • Width: 4.25 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783936834764
Length 10.87 Inch
Finish Baked Powder Epoxy/Polyester Finish
Width 4.25 in
Size 4-1/4" H x 4-1/4" W x 10-7/8" L
Color Gray
Type Aluminum NEMA 4X metallic plug
Material Aluminum
Cord Type G, W, S, SO, STO, or Similar
Applications For Industrial Applications such as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Re?neries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities
Height 4-1/4 Inch
Style Style II
Wire Size 4-2 AWG
Frequency 50-400 Hz
Family Brand Name Killark
Amperage 100 Amp
Number of Poles 4 Pole
Number of Wires 3
Sub Brand VERSAMATE
Product UPC 78393683476
Voltage 600 VAC, 250 VDC
Conductor Size 4-2 AWG (Regular Stranding), 4-2 AWG (Extra Flex)
Blade Dimensions 10-7/8 in L x 4-1/4 in W x 4-1/4 in H
Country of Origin USA
