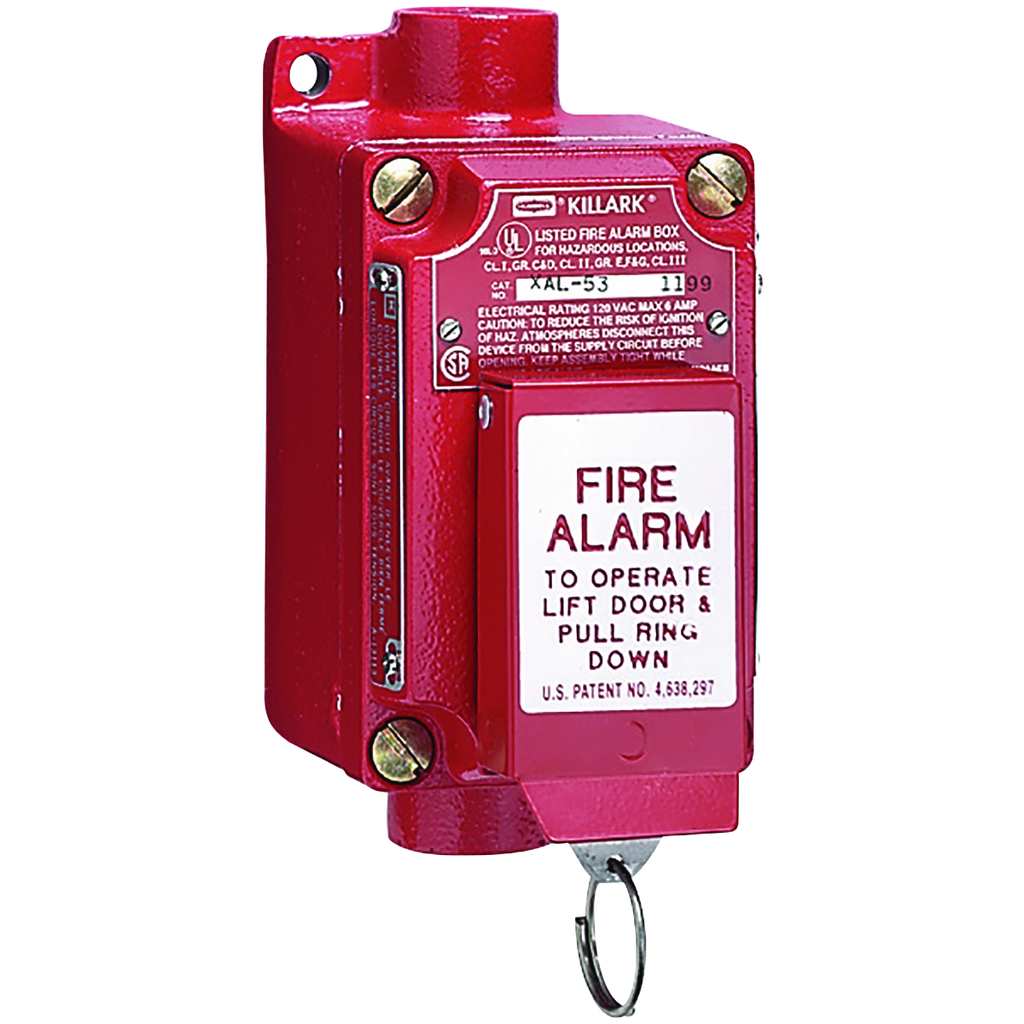

KLRK XAL-458 FIRE ALARM 2NO 2NC
$1,130.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # XAL-458
North Coast Part # 272205

Features

  • Enclosure is made of copper free aluminum alloy
  • Conduit openings are 3/4” NPT feed through.
  • Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
  • Bilingual nameplates included per CSA requirement.
  • Internal ground screw is standard.
  • The alarm station is activated by lifting the front cover and pulling down ring. This quick easy to use two-step process prevents unintentional operation.
  • Has 2 normally open and 2 normally closed contacts.

Specifications

General

  • Action: SP
  • Actuator: Lift Cover, Pull ring
  • Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
  • Application: Hazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings. Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. Areas where emergency control of fire alarm or signal circuits is required.
  • Back Box Type: SWB
  • Color: Red
  • Number Of Poles: 1
  • Series: XAL
  • Type: Aluminum Fire Alarm Station With Pull-Ring Activation
  • UPC: 783936880402

Dimensions

  • Depth: 4-1/2
  • Gross Weight with Packaging: 4.46
  • Height: 6.75 in
  • Length: 8.25 in
  • Width: 5.875 in

Electrical Ratings

  • Amperage Rating: 10 A
  • Contact Rating: 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
  • Frequency Rating: 50/60 Hz

Certifications and Compliance

  • CSA File Number: LR31085
  • UL File Number: E50498

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393688040
GTiN 00783936880402
Length 8.25 in
Width 5.875 in
Size 5-1/4" H x 3-5/8" W x 5-13/64" D
Color Red
Type Aluminum fire alarm station with pull-ring activation
Product Series XAL
Applications Hazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings. Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. Areas where emergency control of fire alarm or signal circuits is required.
Height 6.75 in
Frequency 50/60 Hz
Family Brand Name Killark
Actuator Pull ring
Contact Configuration 2-NO/2-NC
Amperage 10 Amp
Contact Rating 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Number of Poles 1 Pole
Enclosure Aluminum enclosure
Action SP
Voltage null
