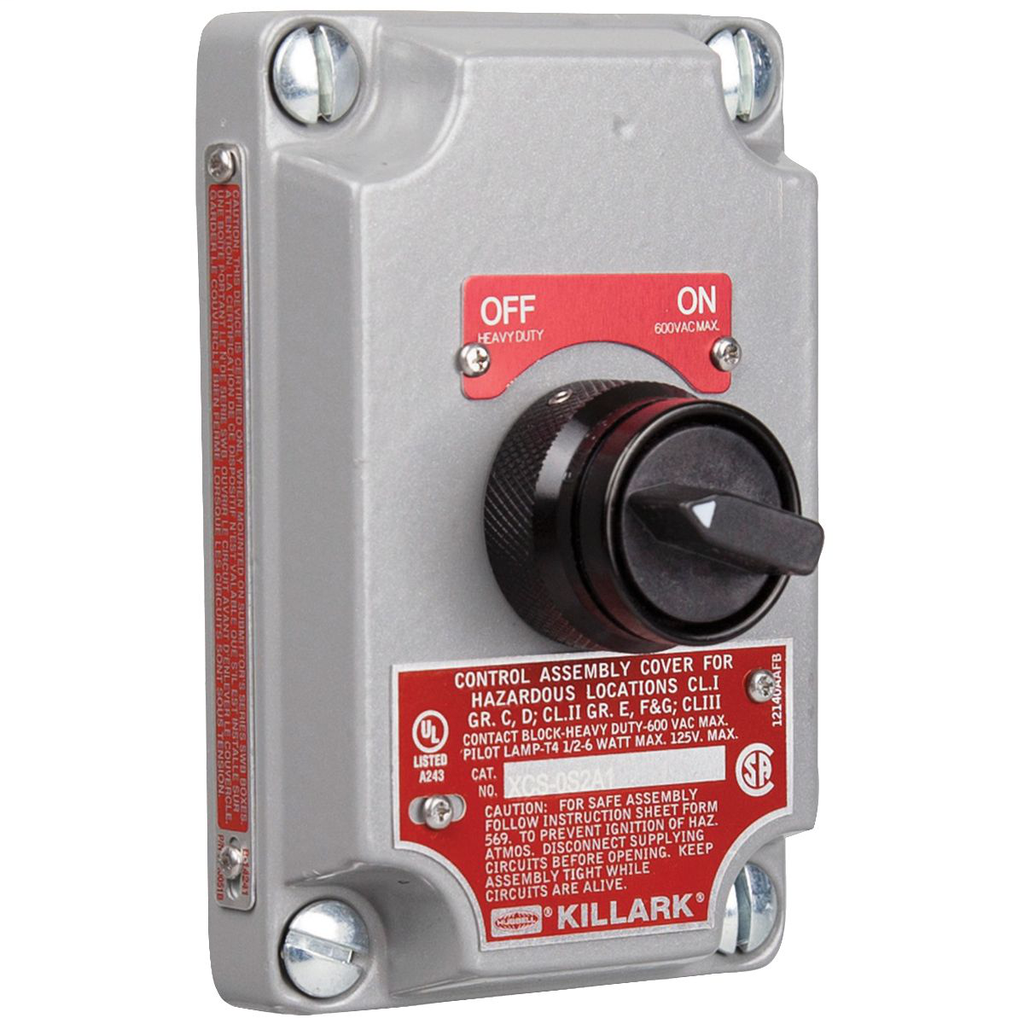

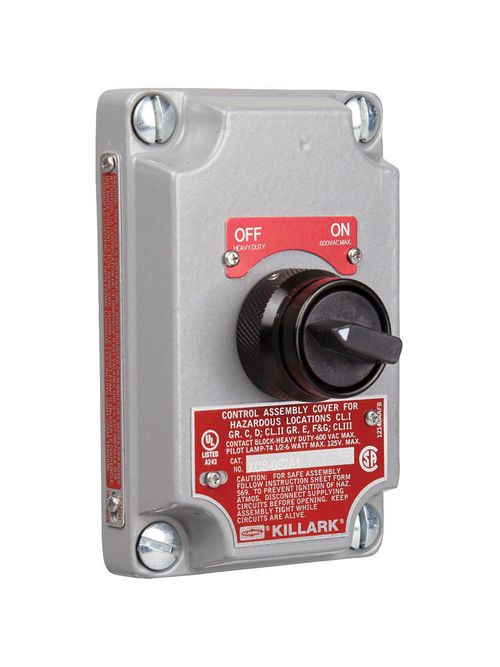

KLRK XCS-0S2L3F COVER W/DEVICE SPRI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$543.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # XCS-0S2L3F
North Coast Part # 678693

Features

  • Copper free cast aluminum alloy.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.

Specifications

  • Back Box Type: SWB
  • Color: Black
  • Country of Origin: US
  • Depth: 3-5/16
  • Dimensions: 7.5 in x 5.625 in x 4 in
  • Each - Height: 4.000 in
  • Each - Length: 7.500 in
  • Each - Width: 5.625 in
  • Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
  • Height: 4 in
  • Length: 7.5 in
  • Width: 5.625 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783936891101
Length 7-1/2 Inch
Width 5.625 in
Size 4-5/8" H x 3" W x 1-1/16" D
Color Black
Type Non-Reversing
Material Aluminum
Applications Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Height 4 Inch
Frequency 50/60 Hz
Family Brand Name Killark
Actuator 2-position selector switch
Contact Configuration 1-NO/1-NC
Amperage 10 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number of Poles 1 Pole
Action SP
Product UPC 78393689110
Voltage 600 VAC
Country of Origin USA
Enclosure Material Stainless Steel
