KLRK XCS-5A15 CLI XCS-0A15 CV W/3/4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$665.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # XCS-5A15
North Coast Part # 429023

Features

  • Copper free cast aluminum alloy.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.

Specifications

  • Back Box Type: SWB
  • Buy American Compliant: Contact Manufacturer
  • Color: Green-Red P.B., Red Light
  • Country of Origin: US
  • Depth: 4-11/32
  • Each - Height: 5.875 in
  • Each - Length: 3.313 in
  • Each - Width: 3.000 in
  • Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
  • Show Add To ProjectList: Yes

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78393689151

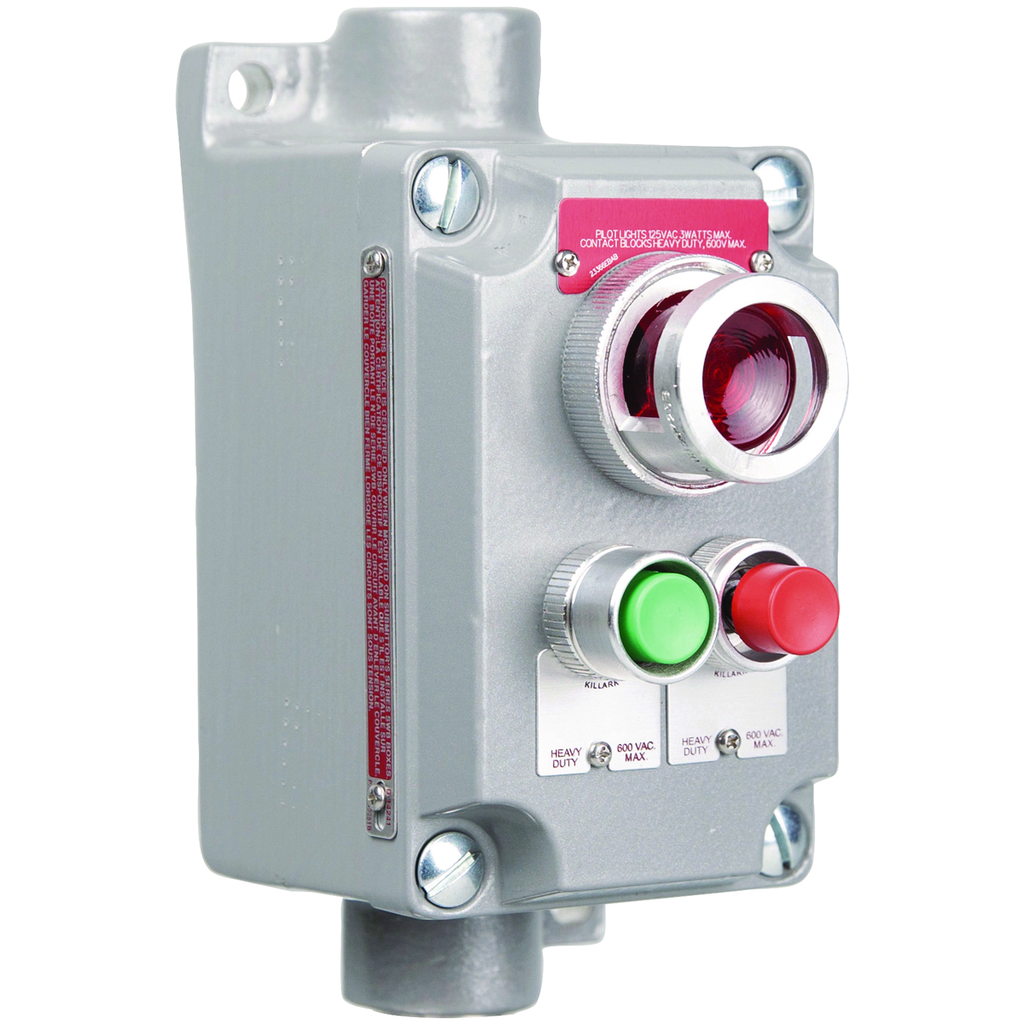

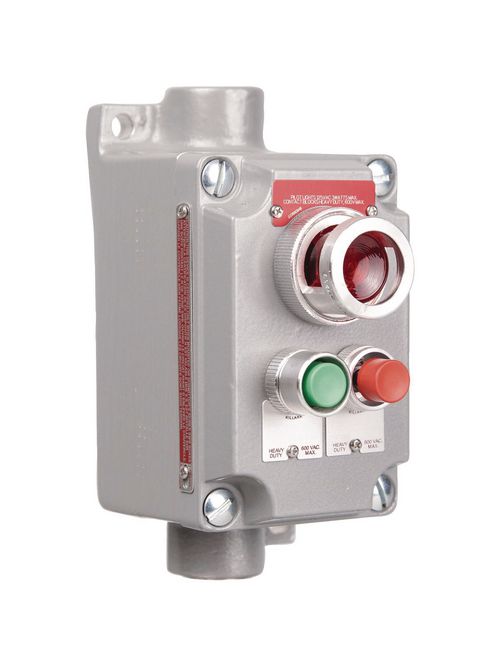

Item Long Description XCS Series- Cover with Device - Aluminum Feed-Thru Momentary Contact Two Mini Red-Green Push Buttons And Red Pilot Light - Hub Size 3/4 Inch
GTiN 00783936891514
Size 5-7/8" H x 3" W x 3-5/16" D
Color Green,Red Light,Red P.B.
Type Aluminum box and cover with pilot light and two mini push buttons
Applications Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Frequency 50/60 Hz
Wattage 3 Watt
Family Brand Name Killark
Actuator Pilot light and momentary push buttons
Contact Configuration 1-NO/1-NC
Amperage 10 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number of Poles 2 Pole
Enclosure Aluminum enclosure
Action SP
Voltage 120/600 VAC
