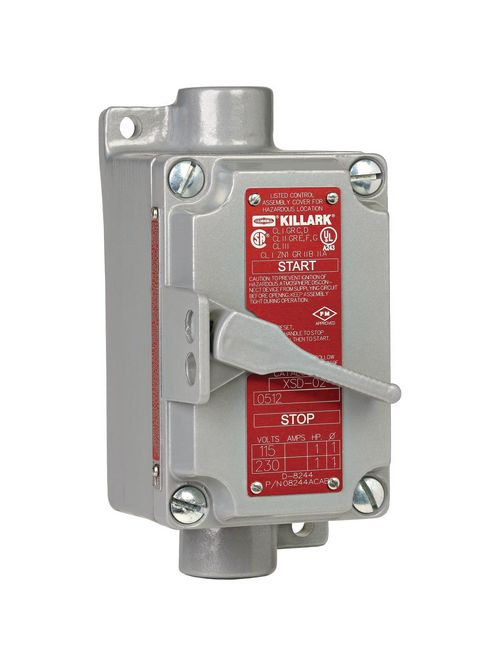

KLRK XSX-52 SWITCH 1GANG 2P F-THRU

Features

Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.

• XSX Series (without overload protection) are ideally suited for across the-line applications where a positive disconnect means is required.
• Enclosures are cast copper-free aluminum alloy.
• Operating shaft is stainless steel.
• Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
• Ground flange joint between bolted cover and box provide required flame path.
• Provisions for padlocking switch in either “ON” or ”OFF” position is standard.

Specifications

• Application: Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. XSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requi
• Horsepower - Maximum: 3
• Material: Copper-free aluminum
• Series: XSX
• Type: Aluminum Manual Motor Starting Switch Without Overload Protection
• UPC: 783936933504
• Gross Weight with Packaging: 2.4
• Height: 5.5 in
• Length: 6.88 in
• Width: 3.75 in
• Frequency Rating: 60 Hz
• Power Factor: 0.9
• Voltage Rating: 600 V
• CSA File Number: LR11714

Hazardous Rating(s)

• Class I, Divisions 1 & 2, Groups C, D
• Class I, Zones 1 & 2, Groups IIB, IIA
• Class II, Divisions 1 & 2, Groups E, F, G
• Class III, Divisions 1 & 2
