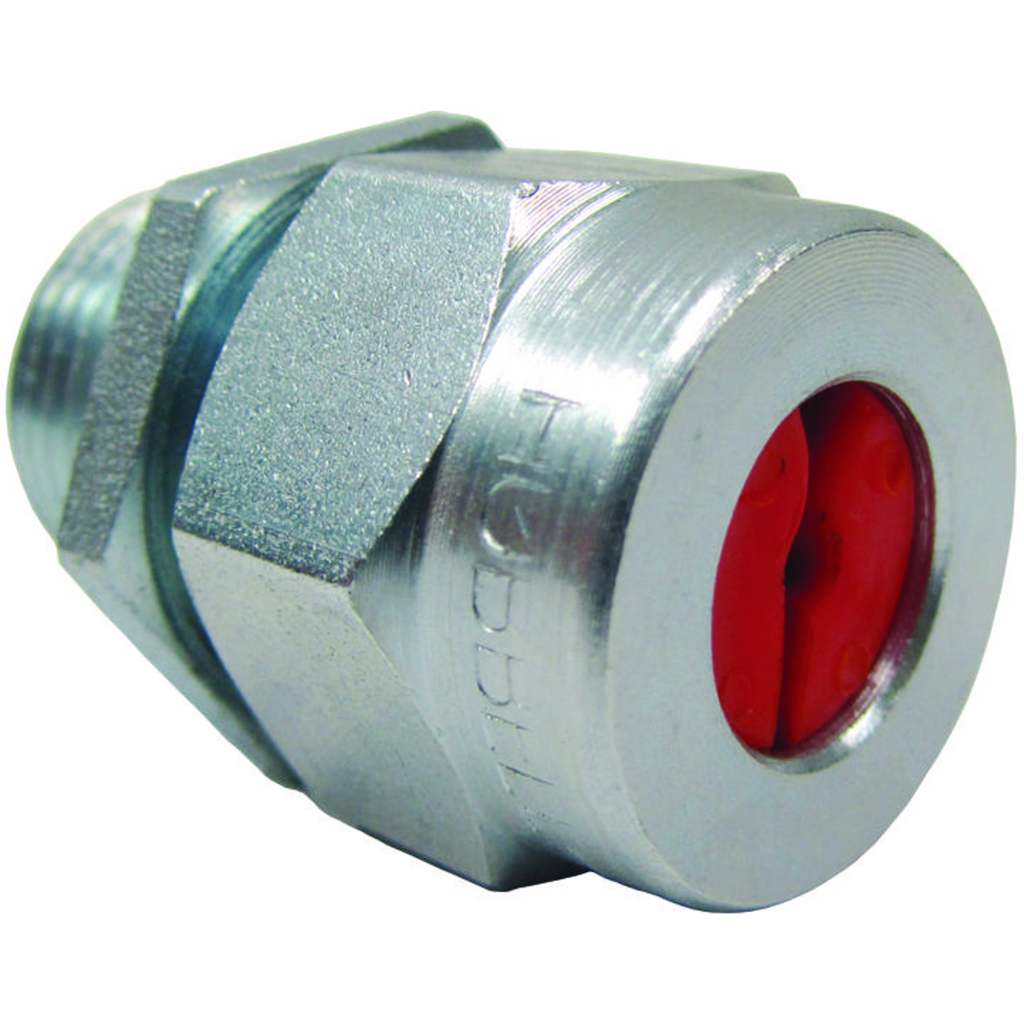

KLRK ZS102ZP CORDCON, STR ML.125-.1
$56.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # ZS102ZP
North Coast Part # 1555962

Features

  • Neoprene grommet seals out oil and moisture
  • Nylon retention ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
  • These heavy-duty connectors hold up to most manufacturing chemicals including, acid solutions, solvents and other corrosive materials
  • Machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads

Specifications

General

  • Color: Silver
  • Finish Type: Natural
  • Material: Steel
  • Series: Z Series
  • Type: Straight Cord Connector
  • UPC: 783936121086

Dimensions

  • Gross Weight with Packaging: 0.2
  • Height: 1.2 in
  • Hub Size: 1/2"
  • Length: 1.27 in
  • Width: 0.55 in

Conductor Related

  • Cable Range: .125 - .187 in

Certifications and Compliance

  • CSA File Number: LR73478
  • Nema Rating: 4, 4X, 12, 13
  • UL File Number: E22698

Logistics

  • Carton Quantity: 15 EA

Overview

UPC 78393612108
GTiN 00783936121086
Length 1.27 in
Finish Natural
Width 0.55 in
Size 1.75" L x 1.27" W x 1.27" H
Color Silver
Type Steel straight cord connector
Material Steel
Product Series Z Series
Applications Z Series steel cord connectors are used to secure and seal cords or cables entering enclosures or raceways. Z Series connectors are also suitable for use in hazardous locations per National Electric Code (Articles 501.10(B), 502.10(A&B), 505.15(C)). Consult these articles for sealing requirements that may apply.
Height 1.2 in
Family Brand Name Killark
NEMA 12,13,4,4X
Hub Size 1/2 in
