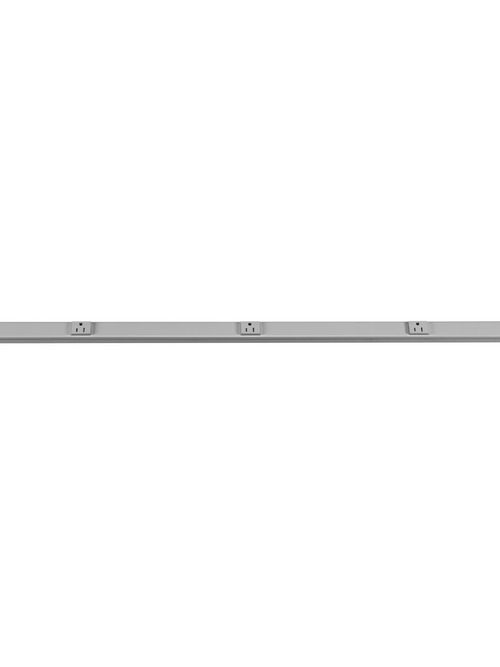

HCI HBL20GB512GYTR PLUGTRAK TAMPER
Product image thumbnail 0
Product image thumbnail 1
$100.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # HBL20GB512GYTR
North Coast Part # 828000

Features

  • Multiple spacing configurations
  • Gray or ivory scratch resistant finish
  • Insulation displacement wiring provides superior wire retention

Performance

  • Electrical - Receptacle Rating - NEMA 5-15R and NEMA 5-20R
  • Mechanical - Wire - #12 AWG Stranded Copper

Industry Standard(s)

  • CSA Standard C22.2 no. 62
  • UL Standard UL 5
  • E253976 /E253830 /E253833

Specifications

  • Color: Gray
  • Current / Amperage Rating: 15 A
  • Item Type: Pre-Wired PlugTrak
  • Length: 5 ft
  • Minimum Order Quantity: 1 EA
  • Number Of Receptacles: 5
  • SAP Material Group 5: A10
  • Style: Tamper Resistant
  • Type: Single Circuit
  • Wire Size: #12 AWG THHN
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 61.375 in
  • Each - Height: 1.750 in
  • Each - Width: 2.375 in

Categories

Overview

UPC 78358545592
GTiN 00783585455921
Length 5 ft
Width 2.375 in
Color Gray
Type Single Circuit
Material Steel
Applications Permanently Installed
Height 1.750 in
Cable Size #12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Current 15 A
Enclosure NEMA 1
Sub Brand PlugTrak
Environmental Conditions Indoor Only
Voltage 125 Volt
