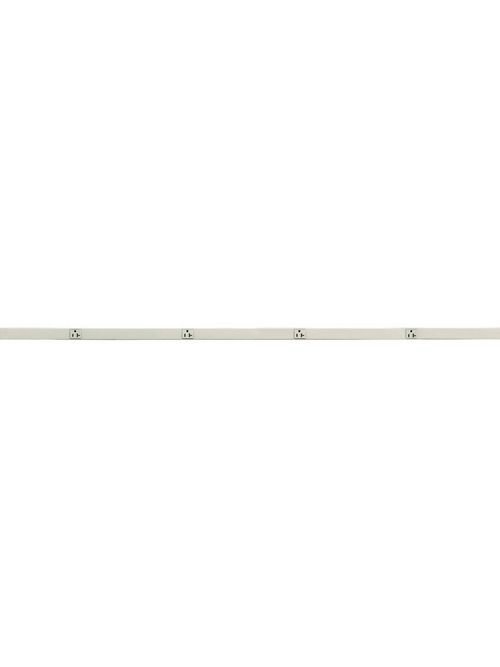

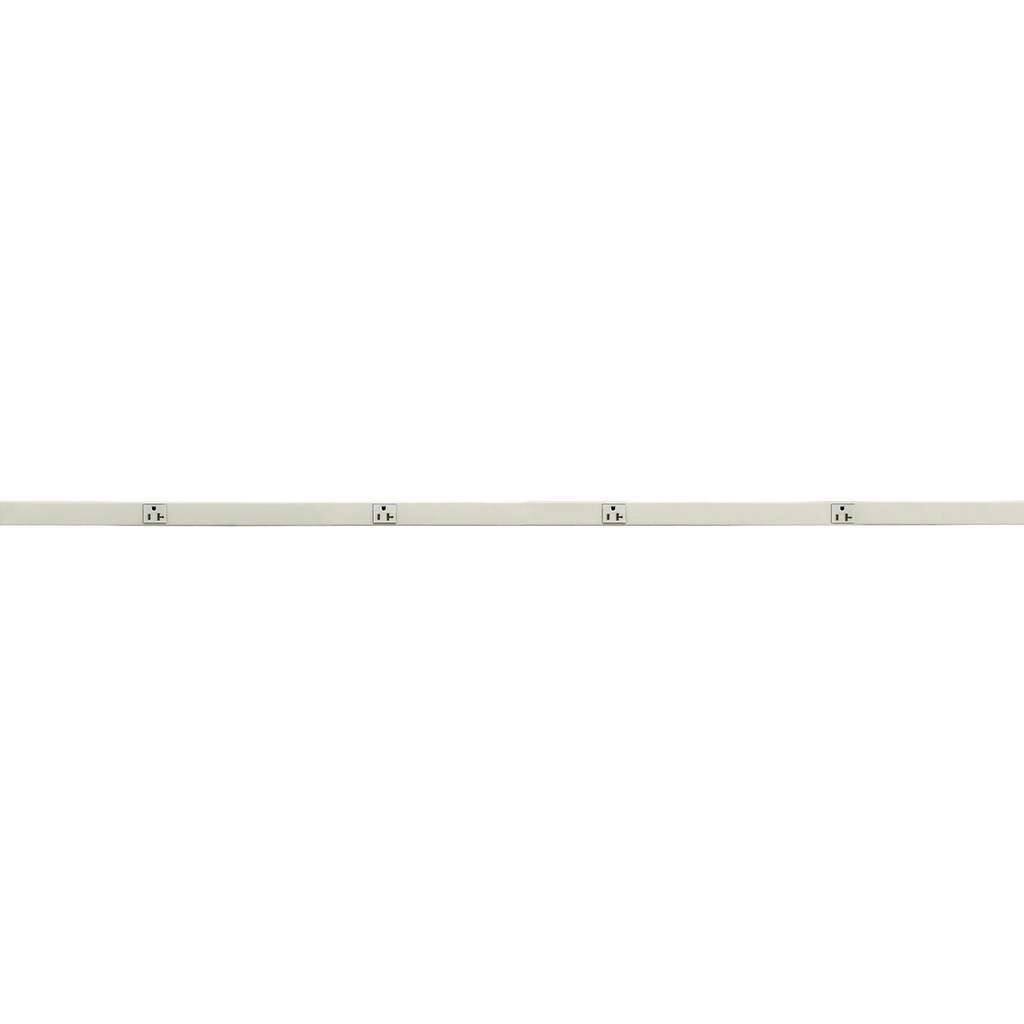

HCI HBL24GB618IV PLUGTRAK, 20A, 1 C
$86.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # HBL24GB618IV
North Coast Part # 484914

Features

  • Multiple spacing configurations
  • Gray or ivory scratch resistant finish
  • Insulation displacement wiring provides superior wire retention

Performance

  • Electrical - Receptacle Rating - NEMA 5-15R and NEMA 5-20R
  • Mechanical - Wire - #12 AWG Stranded Copper

Industry Standard(s)

  • CSA Standard C22.2 no. 62
  • E253976 /E253830 /E253833
  • UL Standard UL 5

Specifications

  • Carton Quantity: 2 EA
  • Color: Ivory
  • Current / Amperage Rating: 20 A
  • Item Type: Pre-Wired PlugTrak
  • Length: 6 ft
  • Minimum Order Quantity: 2 EA
  • Number Of Receptacles: 4
  • SAP Material Group 5: A10
  • Type: Single Circuit
  • Wire Size: #12 AWG THHN
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 72.000 in
  • Each - Height: 1.000 in
  • Each - Width: 1.500 in

Overview

UPC 78358521495
GTiN 00783585214955
Length 6 ft
Width 1.5 in
Color Ivory
Type Standard, Single Circuit, 1-Phase
Material Steel
Conductor Size 12 AWG
Applications Perimeter Wiring
Mounting Type Screw
Height 1 in
Cable Size #12AWG
Wattage 2,500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 2
Power Rating 2500 W
Number of Outlets 4
Current 20 A
Enclosure NEMA 1
Spacing 18 in
Sub Brand PlugTrak
Environmental Conditions Indoor Use Only
Voltage null
