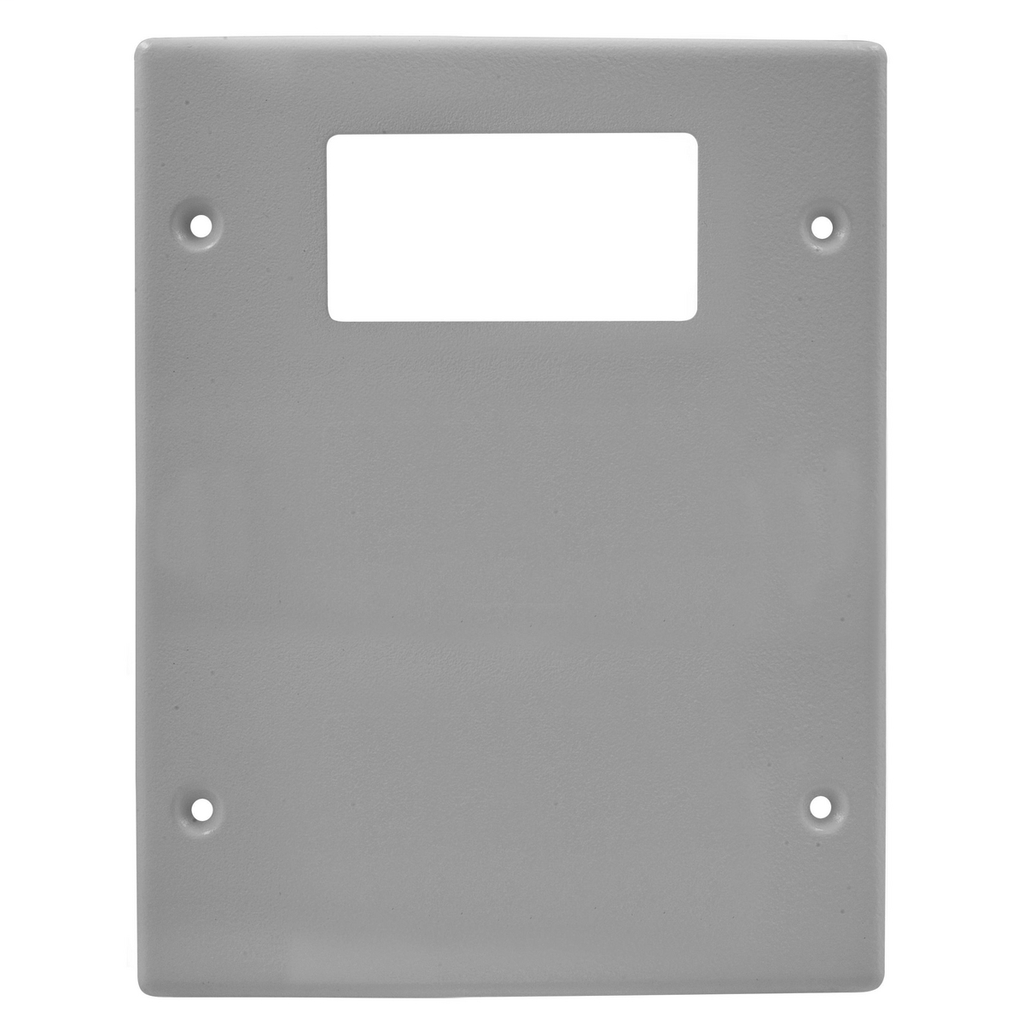

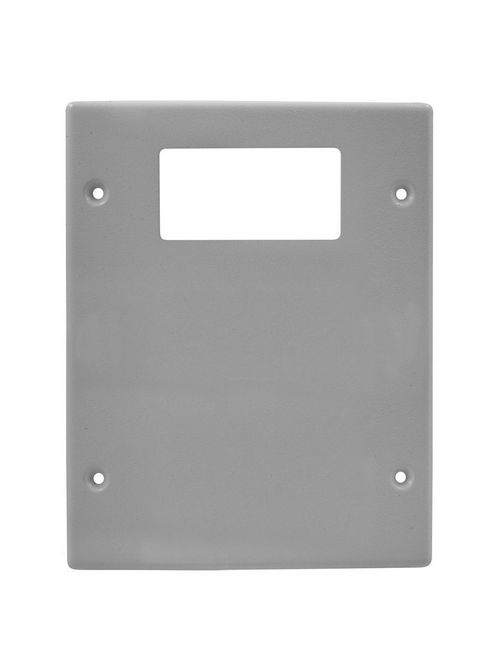

HWDK HBL6747RXXGY RACEWAY, PLT, 2G
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$19.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # HBL6747RXXGY
North Coast Part # 331016

Features

  • Open System architecture available
  • Cover plates help to conceal unsightly gaps caused by miscuts
  • Overlapping cover plates provide flexibility for power, data, voice, audio and video applications

Specifications

  • Color: Gray
  • Country of Origin: CN
  • Each - Height: 0.600 in
  • Each - Length: 6.700 in
  • Each - Width: 5.400 in
  • Industry Standard(s): CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
  • Standard: CSA Standard C22.2 no. 62E253976 /E253830 /E253833UL Standard UL 5
  • Type: Cover Plates
  • Item Type: HBL6750 Series
  • Number of Gang(s): 3-Gang
  • Series: HBL6750
  • Style: Style LineĀ® and Blank

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783585218199
Length 6.7 Inch
Finish Gray
Width 5.4 in
Color Gray
Type Folded, NEMA 1, Removable, Non-Hazardous
Material Steel
Product Series HBL6750
Applications For Metal Raceway
Height 0.6 Inch
Family Brand Name Hubbell Premise Wiring
Construction Roll Form
Cover Type Removable
Enclosure NEMA 1 Rating
Sub Brand Metallic Raceway Products
Product UPC 78358521819
Thickness 0.6 in
Standard CSA Standard C22.2 No. 62,E253830,E253833,E253976,UL Standard UL 5
Number of Gangs 3 Gang
Used With (1) Decorator, (2) Blank, (1) Receptacle
Country of Origin China
