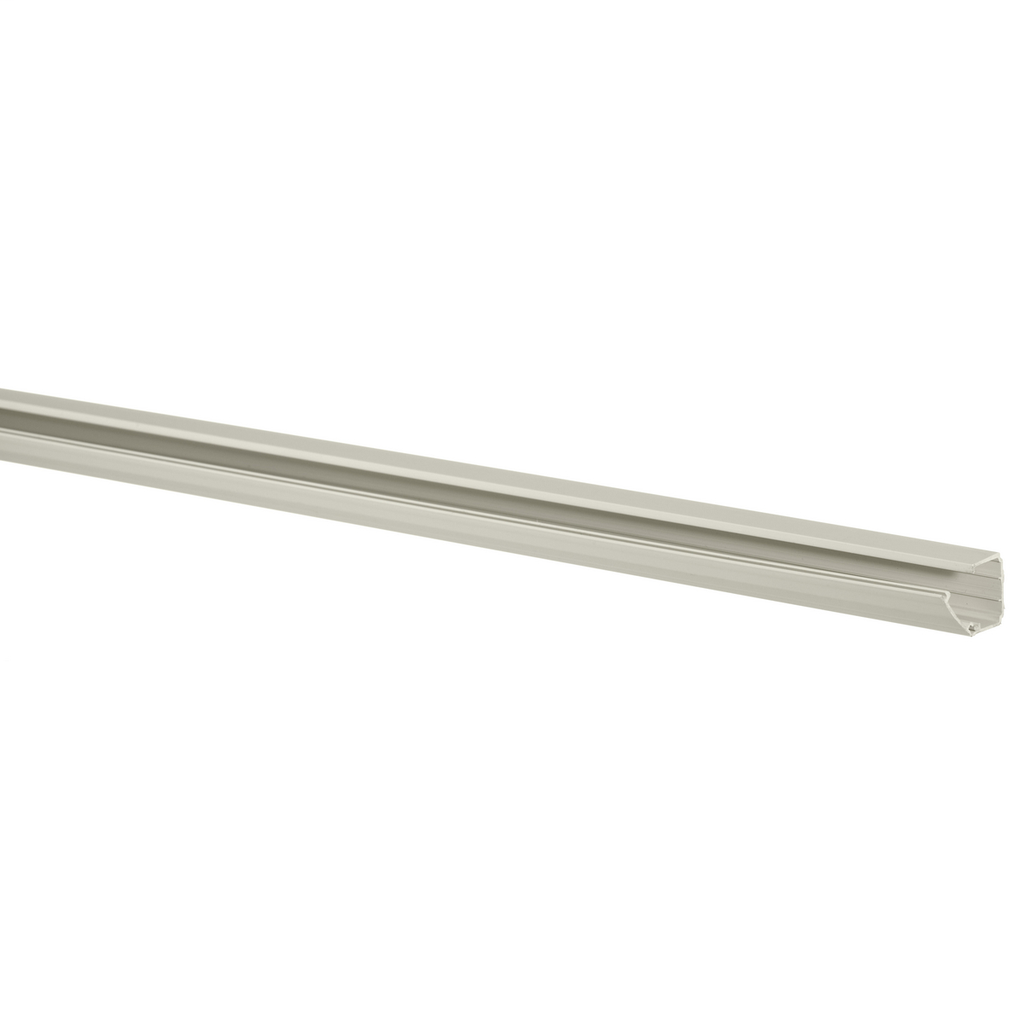

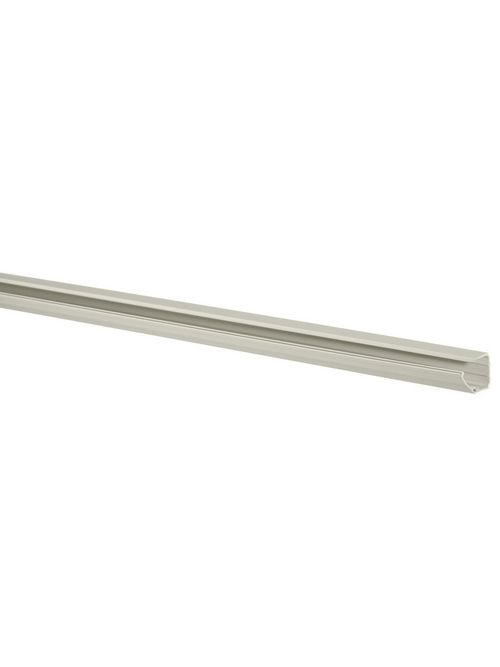

HCI PL1BC5 LANTRAK, BASE+CVR, 5'
$3.24/ea
Usually ships within 11 to 17 Days
FT
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PL1BC5
North Coast Part # 14268

Features

  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements

Specifications

General

  • Application: 5' Base and Cover
  • Color: Office White
  • Construction: Extruded Plastic
  • Cover Type: Integral
  • EU RoHS Indicator: Yes
  • Enclosure Type: NEMA 1 Rating
  • Item Type: PL1, LanTrak- Latching
  • Knockouts: None
  • Material: Thermoplastic
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flame Rating - UL94V-0 | Environmental - Temperature Range - -25.6° to 158° F
  • Series: PL1
  • Style: Single Channel, Latching
  • Type: Base and Cover
  • UPC: 783585090238

Dimensions

  • Length: 5 ft
  • Width: 1.38 in

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 no. 62 | E118895 / E119190 | UL Standard UL 5A
  • Non Hazardous Location: Non Hazardous

Logistics

  • Carton Quantity: 50

Overview

UPC 78358509023
GTiN 00783585090238
Length 5 ft
Finish Office White
Width 1.38 in
Color Clear White
Type Standard
Material PVC
Product Series PL1
Applications 5' Base and Cover
Height 1.04 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded Plastic
Carton Qty 50
Blade Dimensions 5 ft L x 1.38 in W x 1.04 in H
Cover Type Integral Latching
Enclosure NEMA 1 Rating
Sub Brand Non-Metallic Raceway Products
Standard UL Standard UL 5A,E119190,CSA Standard C22.2 No. 62,E118895
