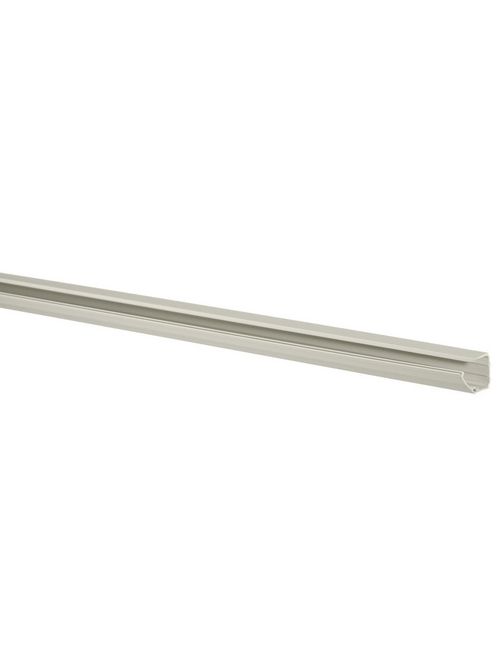

HWDK PL1BC7 LANTRAK, BASE+CVR, 7'
$3.47/ea
Usually ships within 11 to 17 Days
FT
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PL1BC7
North Coast Part # 14292

Features

  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements

Specifications

General

  • Application: 7' Base and Cover
  • Color: Office White
  • Construction: Extruded Plastic
  • Cover Type: Integral
  • EU RoHS Indicator: Yes
  • Enclosure Type: NEMA 1 Rating
  • Item Type: PL1, LanTrak- Latching
  • Knockouts: None
  • Material: Thermoplastic
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flame Rating - UL94V-0 | Environmental - Temperature Range - -25.6° to 158° F
  • Series: PL1
  • Style: Single Channel, Latching
  • Type: Base and Cover
  • UPC: 783585090245

Dimensions

  • Length: 7 ft
  • Width: 1.38 in

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 no. 62 | E118895 / E119190 | UL Standard UL 5A
  • Non Hazardous Location: Non Hazardous

Logistics

  • Carton Quantity: 70

Overview

UPC 78358509024
GTiN 00783585090245
Length 7 ft
Finish Office White
Width 1.38 in
Color White
Type PL1, LanTrak- Latching
Material Thermoplastic
Product Series PL1
Applications 7' Base and Cover
Height 1.04 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded Plastic
Carton Qty 70
Cover Type Integral
Enclosure NEMA 1 Rating
Sub Brand Non-Metallic Raceway Products
Standard CSA Standard C22.2 No. 62,E118895,UL Standard UL 5A,E119190
