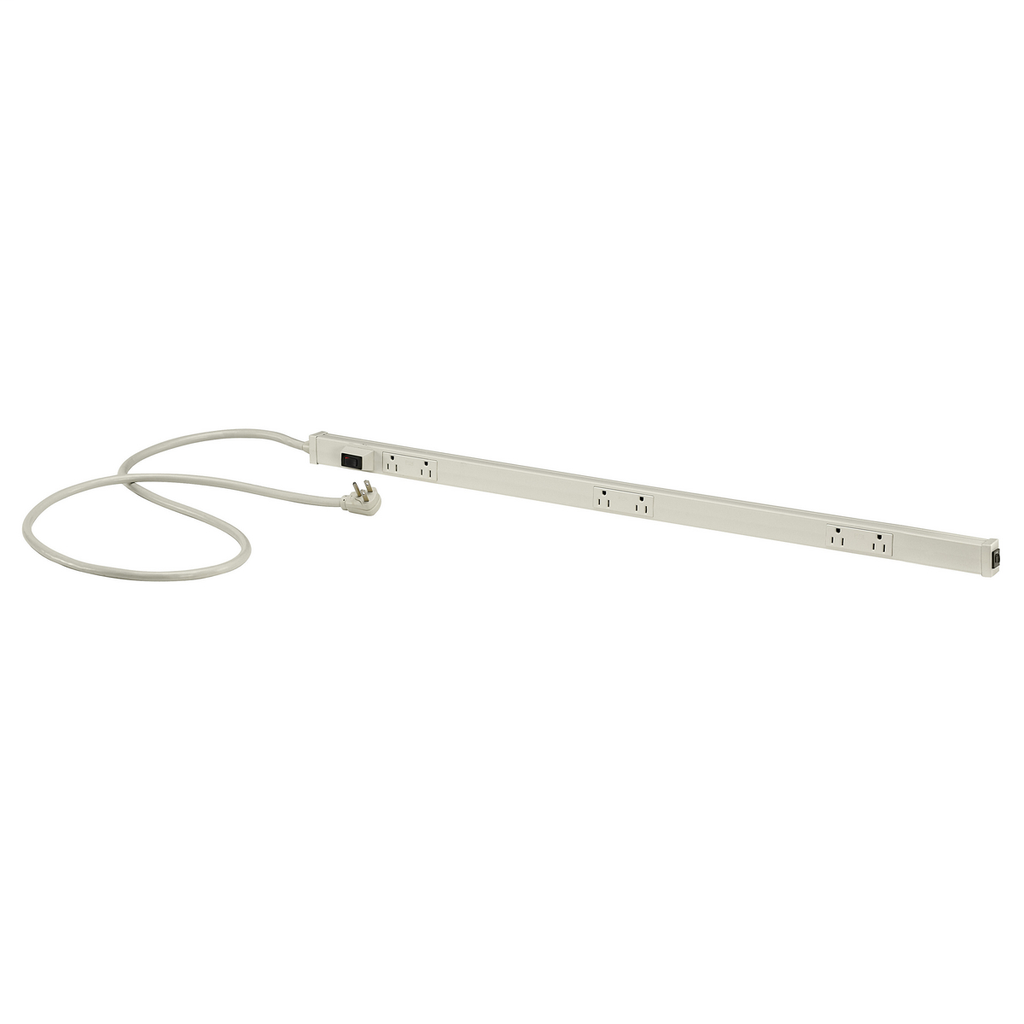

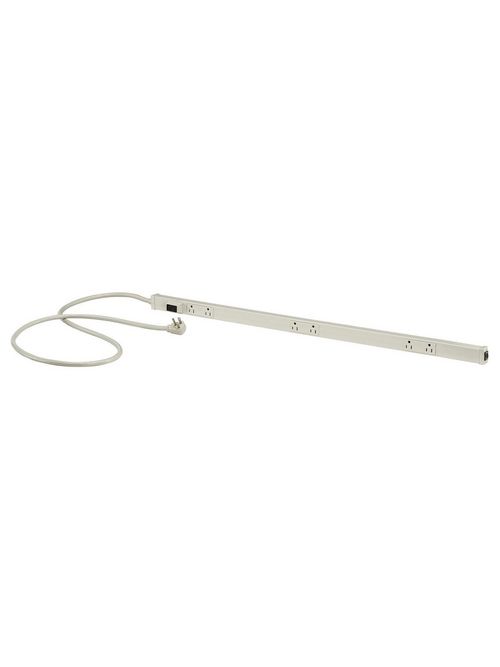

HWDK PT153112P PORT-PLUGTRAK, 15A,
$113.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PT153112P
North Coast Part # 152341

Features

  • Pre-punched holes make mounting easy
  • Available in 3 ft. (0.9m) or 5 ft. (1.5m) lengths
  • 6 ft. length, 15 or 20A molded cord set allows reliable access

Specifications

General

  • Color: Office White
  • EU RoHS Indicator: Contact Manufacturer
  • Item Type: Pre-Wired PlugTrak
  • Number Of Receptacles: 3
  • Performance: Electrical - Crush Resistance - 300 lbs. | Electrical - Impact Resistance - 5 ft. lbs | Electrical - Receptacle Rating - NEMA 5-15R & 5-20R | Environmental - Flame Rating - UL94V-0 | Environmental - Temperature Range - -25.6° to 158° F | Mechanical - Wire - #12 AWG Stranded Copper
  • Style: Portable
  • Type: Single Circuit
  • UPC: 783585090993

Dimensions

  • Length: 3 ft

Electrical Ratings

  • Current / Amperage Rating: 15 A
  • Voltage Rating: 125 VAC

Conductor Related

  • Wire Size: #12 AWG THHN

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 no. 62 | E118895 / E119190 | UL Standard UL 5A

Logistics

  • Carton Quantity: 2

Overview

UPC 78358509099
GTiN 00783585090993
Length 39 in
Width 3 in
Color White
Voltage 125 Volt
Type 1-Phase
Material Non-Metallic
Applications Portable
Height 2 in
Cable Size 6'
Wattage 1,875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 2
Current 15 A
Enclosure NEMA 1
Sub Brand PlugTrak
Conductor Size 12 AWG
Standard E119190,CSA Standard C22.2 No. 62,UL Standard UL 5A,E118895
Power Rating 1875 W
Number of Outlets 3
Environmental Conditions Indoor Only
