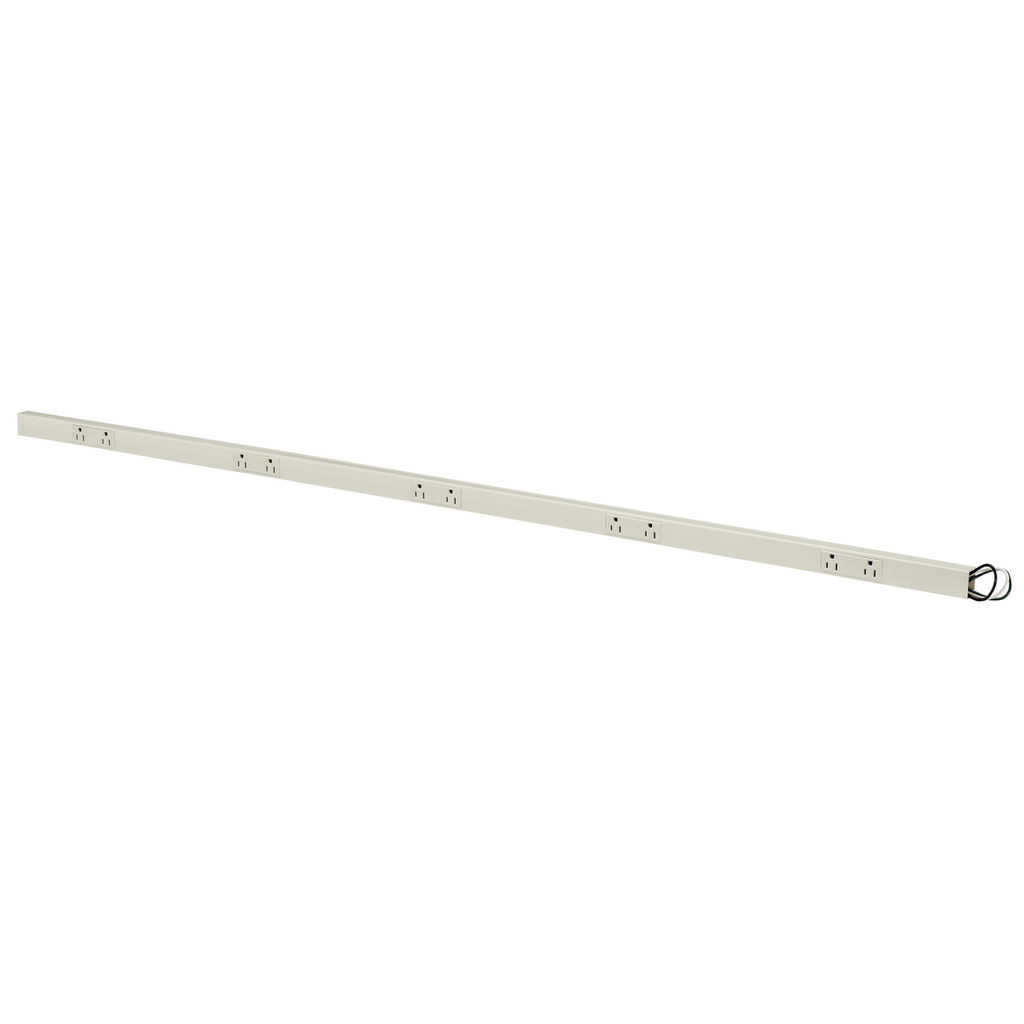

HWDK PT155115 PLUGTRAK, 5', 15A, 1C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$77.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PT155115
North Coast Part # 160981

Features

  • Available in 5 ft. or 6 ft. lengths
  • Multiple spacing configurations
  • Hard wired PlugTrak® mates with LANTrak® fittings and boxes

Specifications

  • Color: Office White
  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Each - Height: 1.500 in
  • Each - Length: 63.000 in
  • Each - Width: 1.500 in
  • Industry Standard(s): CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
  • Performance: Electrical - Crush Resistance - 300 lbs.;Electrical - Impact Resistance - 5 ft. lbs;Electrical - Receptacle Rating - NEMA 5-15R & 5-20R;Environmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F;Mechanical - Wire - #12 AWG Stranded Copper
  • Length: 5 ft
  • Number of Receptacles: 4
  • Standard: CSA Standard C22.2 no. 62; E118895 / E119190; UL Standard UL 5A
  • Type: Single Circuit
  • Voltage Rating: 125 VAC

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783585091112
Length 63 Inch
Width 1-1/2 in
Color White
Voltage 125 Volt
Type Standard, Single Circuit, 1-Phase
Material Non-Metal
Applications Permanently Installed
Height 1-1/2 Inch
Cable Size #12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Current 15 A
Enclosure NEMA 1
Sub Brand PlugTrak
Product UPC 78358509111
Conductor Size 12 AWG
Standard CSA Standard C22.2 No. 62,E118895,E119190,UL Standard UL 5A
Power Rating 1875 W
Number of Outlets 4
Environmental Conditions Indoor Only
Country of Origin USA
