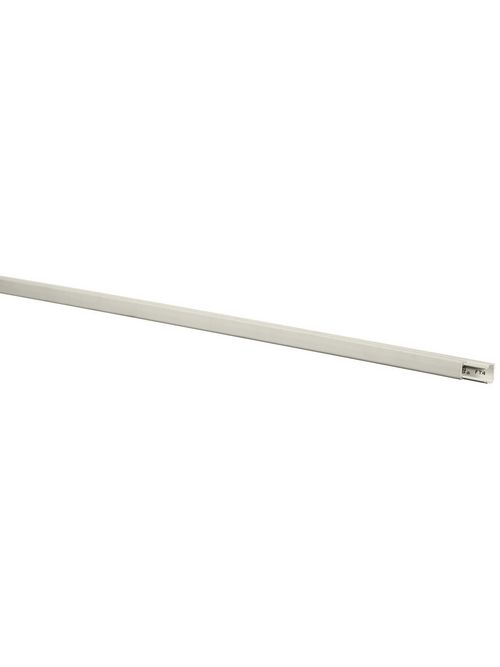

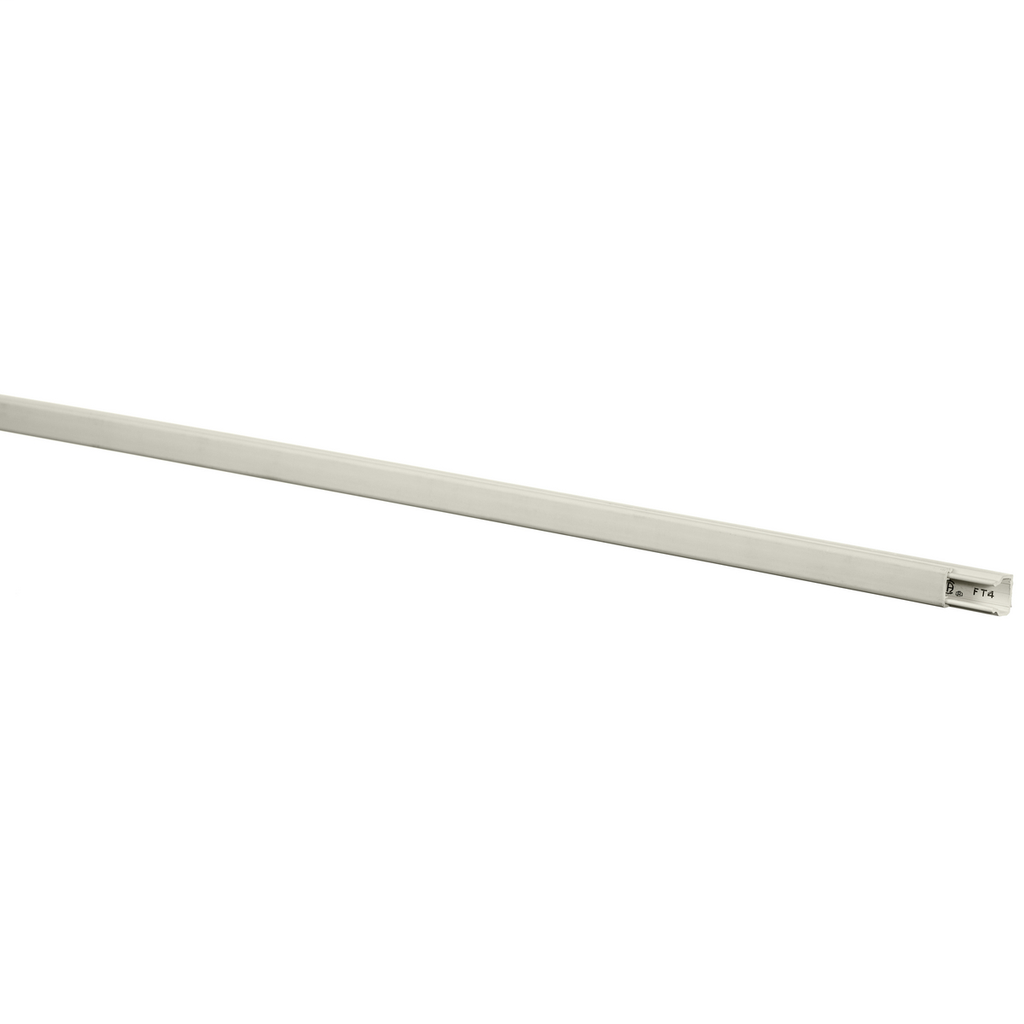

Hubbell Wiring Devices PT1ABC5 0.68 x 0.75 Inch x 5 Foot Office White Adhesive Back Raceway Base and Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PT1ABC5
North Coast Part # 215061


  • Office white color
  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications
  • Standard Product


  • Color: Office White
  • Country of Origin: US
  • Each - Height: 2.0000 in
  • Each - Length: 70.0000 in
  • Each - Width: 2.5000 in
  • Industry Standard(s): UL 5A
  • Performance: Environmental - Flammability - UL94V-0;Environmental - Operating Temperature - -25.6° to 158° F
  • Show Add To ProjectList: Yes
  • Application: 5' Base and Cover- Adhesive Back
  • Construction: Extruded
  • Cover Type: Removable
  • Knockouts: None
  • Length: 5 ft
  • Non Hazardous Location: Non-Hazardous
  • Special Features: Standard Product
  • Standard: UL 5A
  • Sub Brand: Non-Metallic Raceway Products
  • Type: PT1 PremiseTrak Series
  • Width: 0.8 in


  • EU RoHS Indicator: Yes


UPC 78358533784
Item Long Description Non-Metallic Raceway, Non-Latching PremiseTrak, PREM-TRAK1, Adhesive Base and Cover, 5' Length
GTiN 00783585337845
Length 5 ft
Finish Office White
Width 0.8 in
Color Clear White
Type Base,Cover
Material Extruded PVC
Product Series PT1
Applications 5' Base and Cover- Adhesive Back
Height 0.68 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded
Blade Dimensions 5 ft L x 3/4 in W x 17.3 mm H
Cover Type Adhesive
Material Type Non-Metallic
Enclosure NEMA 1 Rating
Base Type Adhesive
Sub Brand Non-Metallic Raceway Products
