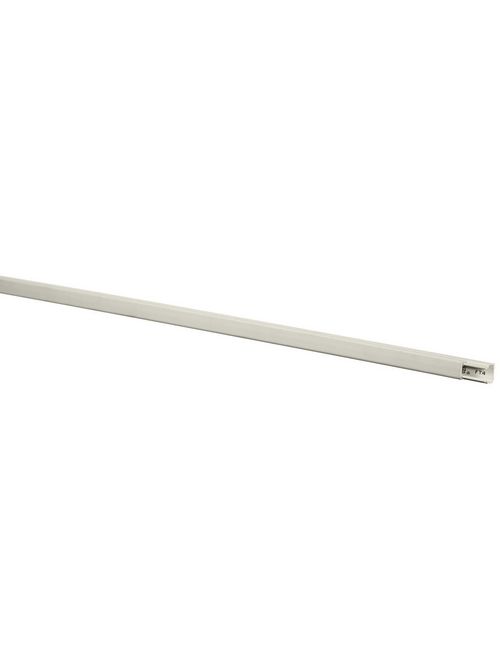

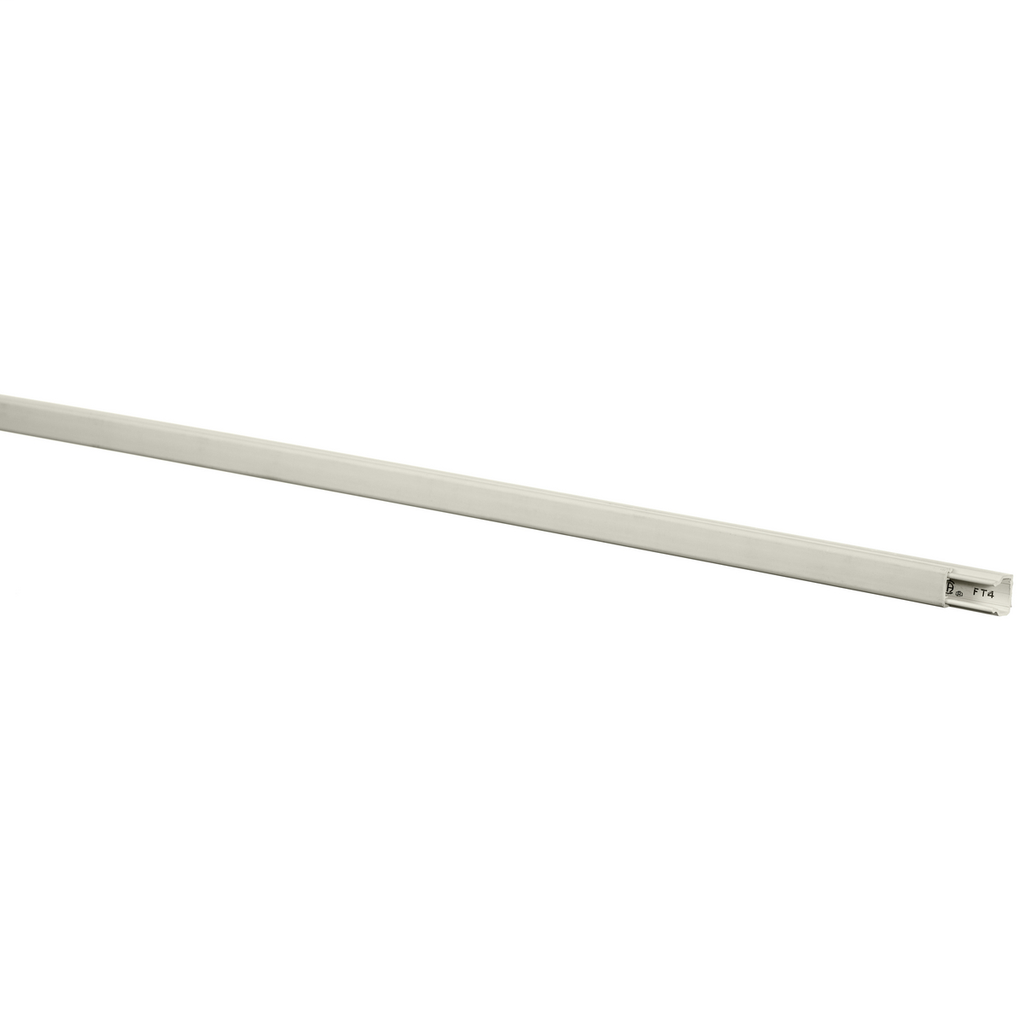

HCI PT1BC5 PREM-TRAK1, BASE & COVER
$1.89/ea
Usually ships within 11 to 17 Days
FT
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PT1BC5
North Coast Part # 209964

Features

  • Office white color
  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications

Specifications

General

  • Application: 5' Base and Cover
  • Color: Office White
  • Construction: Extruded Plastic
  • Cover Type: Integral
  • EU RoHS Indicator: Yes
  • Enclosure Type: NEMA 1 Rating
  • Item Type: PT1, PremiseTrak 1- Non Latching
  • Knockouts: None
  • Material: Thermoplastic
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flammability - UL94V-0 | Environmental - Operating Temperature - -25.6° to 158° F
  • Series: PT1
  • Style: Single Channel
  • Type: Base and Cover
  • UPC: 783585337838

Dimensions

  • Length: 5 ft
  • Width: 0.75 in

Certifications and Compliance

  • Industry Standard(s): CSA Standard C22.2 no. 62 | E118895 / E119190 | UL Standard UL 5A
  • Non Hazardous Location: Non Hazardous

Logistics

  • Carton Quantity: 100

Overview

UPC 78358533783
GTiN 00783585337838
Length 5 ft
Finish Office White
Width 0.75 in
Color White
Type PT1, PremiseTrak 1- Non Latching
Material Extruded Thermoplastic
Product Series PT1
Applications 5' Base and Cover
Height 0.68 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded Plastic
Carton Qty 100
Blade Dimensions 5 ft L x 3/4 in W x 0.68 in H
Cover Type Non Latching
Enclosure NEMA 1 Rating
Sub Brand Non-Metallic Raceway Products
Standard UL Standard UL 5A,E119190,CSA Standard C22.2 No. 62,E118895
