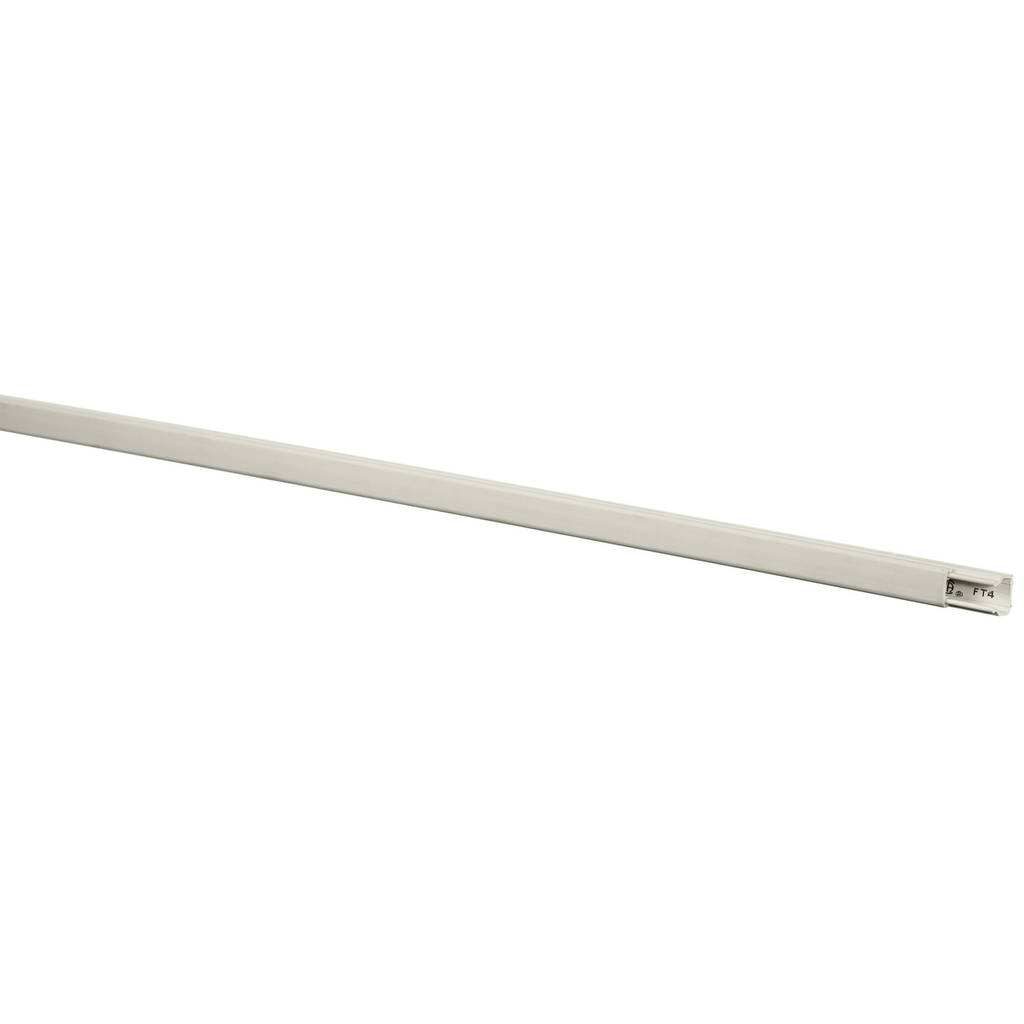

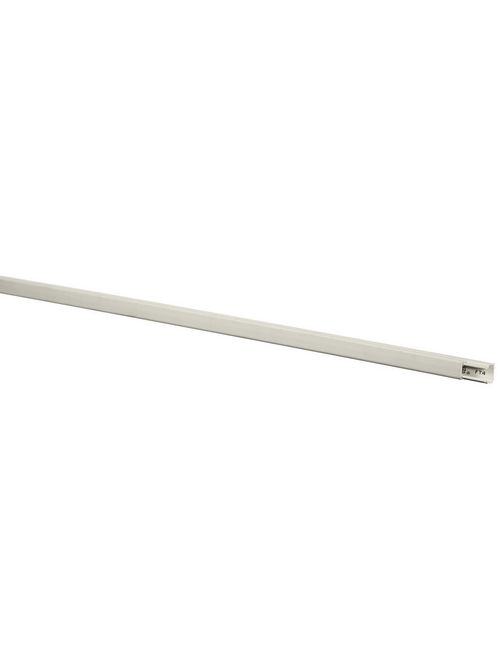

Hubbell Wiring Devices PT1BC7 0.68 x 0.75 Inch x 7 Foot Office White Raceway Base and Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.91/ea
Usually ships within 11 to 17 Days
FT
Adding...
Order in multiples of 7 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Metal Raceway
Mfg Catalog # PT1BC7
North Coast Part # 209981

Specifications

  • Non-Metallic Section Length: 7' Without Adhesive Back
  • Non-Metallic Raceway Series: tn/pt1-tn
  • Material: UV Stabilized PVC
  • CSA Standard: C22.2 no 62
  • Temperature Range: -25.6 to 158 Degrees F
  • PremiseTrak Item: Raceway Section Base and Cover
  • Flame Rating: UL94V0
  • Raceway Type: tn/nonmetallicraceway
  • Crush Resistance: 300 Lbs
  • Non-Metallic Raceway Application: Single Service
  • Weight in LBs: 0.12
  • UL Standard: UL5A
  • TIA/EIA: 569A
  • Impact Resistance: 5 Ft. Lbs
  • CSA Listing: LR87514
  • NEC Article: 388
  • UL Listings: E118895/E119190

Product Drawings / Installation Instructions

Instructions

Product

Categories

Overview

UPC 78358533582
Item Long Description Non-Metallic Raceway, Non-Latching PremiseTrak, PREM-TRAK1, Base, Cover, 7' Length
GTiN 00783585335827
Length 7 ft
Finish Office White
Width 0.75 in
Color Office White
Type Extruded, Integral
Material Thermoplastic
Product Series PT1
Applications 7' Base and Cover
Height 0.68 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded Plastic
Cover Type Integral
Enclosure NEMA 1 Rating
Sub Brand Non-Metallic Raceway Products
Size 0.29 in
Blade Dimensions 7 ft L x 3/4 in W x 0.68 in H
Used With PremiseTrak 1 Non-Latching Non-Metallic Raceway
Weight 0.12 lb
