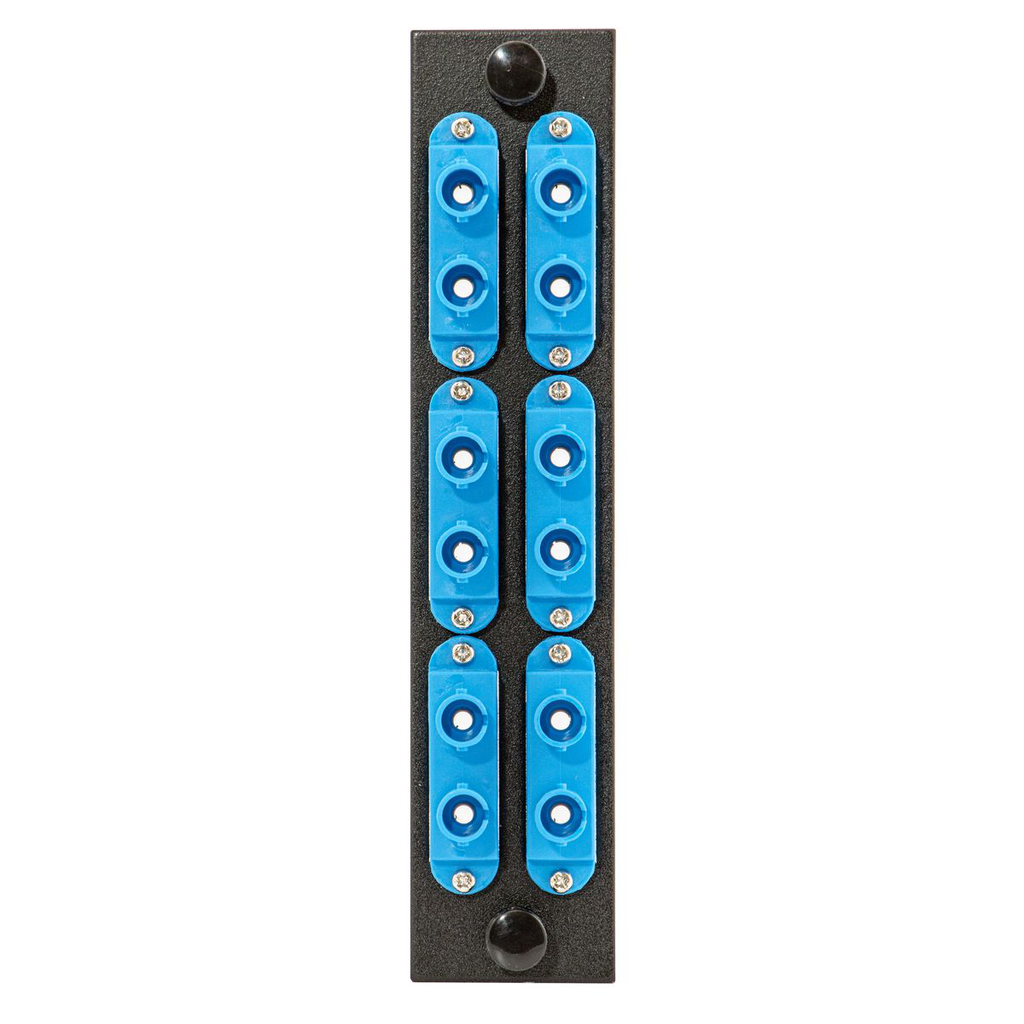

HWDK FSPSTD6 FIBER, ADAPT PNL,12P,6
$178.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Premise Wiring Device
Mfg Catalog # FSPSTD6
North Coast Part # 1610981

Features

  • Wide Range of Adapter Types
  • Quick and Easy Snap-in Design
  • Premium Quality and High Performance
  • Standard Product

Performance

  • Electrical - SM/MM insertion loss - Less than 0.50dB (0.25dB typical)
  • Environmental - Operating temperature - 0 ºC to +75 ºC

Industry Standard(s)

  • TIA-568-C.3
  • TIA-604-FOCIS

Specifications

  • Adapter Type: ST-Style Duplex
  • Application: Interconnect
  • Buy Online - Web: No
  • Carton Quantity: 4
  • Color: Blue
  • Connectivity: Receptacle
  • Display Size: 5.1" X 1.1"
  • Enclosure Type: Various
  • Environmental Conditions: Indoor
  • Fiber Size: 125 Micron
  • Insertion Loss: 0.75 dB Max
  • Item Type: ST Duplex
  • Material: Bronze, Phosphor
  • Material - Mounting Hardware: Snap-In
  • Minimum Order Quantity: 1 EA
  • Number Of Ports: 12
  • Repeatability: 0.1 dB
  • Return Loss: 26
  • Service Life: 500 matings
  • Temperature Rating: 0C to 70C
  • EU RoHS Indicator: Yes
  • Each - Length: 8.000 in
  • Each - Height: 1.000 in
  • Each - Width: 4.000 in

Overview

UPC 66262028923
GTiN 00662620289236
Length 8.000 in
Width 4.000 in
Size 5.1 x 1.1 in
Color Blue
Type Standard, Preloaded
Material Phosphor Bronze Sleeve
Applications Interconnect
Mounting Type Snap-In
Height 1.000 in
Fiber Type Multimode
Temperature Rating 0 - 70 C
Family Brand Name Hubbell
Carton Qty 4
Number of Ports 12
TC Connection Receptacle
Fiber Cable Size 125 micron
Blade Dimensions 28 mm W x 130 mm H
Enclosure Various
Used With 125 m Optical Fiber Cable
Sub Brand OptiChannel
Environmental Conditions Indoor Only
