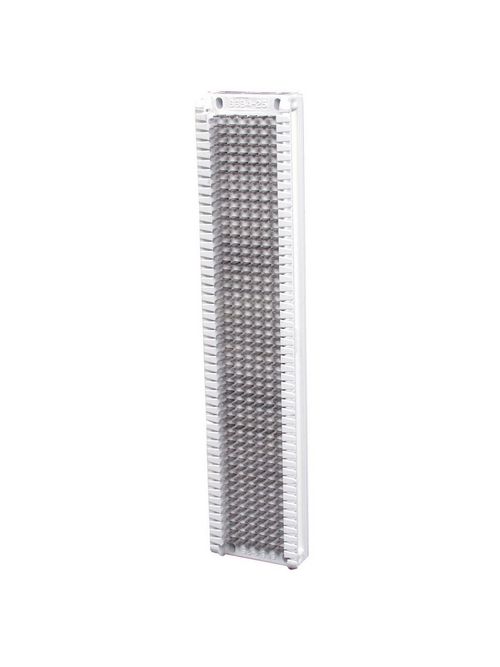

HWDK HPW66B350 BLOCK, MODULAR,66B,5
Product image thumbnail 0
Product image thumbnail 1
$44.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Premise Wiring Device
Mfg Catalog # HPW66B350
North Coast Part # 546041

Features

  • Designed for Fast and Easy Termination Incoming Telephone Cables
  • Smaller Connecting Blocks Satisfy the Need for a Block Smaller than the 25-Pair
  • Stackable for Increased Plant Flexibility

Specifications

General

  • Compatibility: Within TIA-568C.2
  • EU RoHS Indicator: Yes
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Modular 66 Cross Connect Blocks
  • Material: Composite
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Clips Per Row: 1
  • Number Of Rows And Columns: 50
  • Operating Temperature: 0 Degrees C to 75 Degree C
  • Series: Modular 66B
  • UPC: 662620821160

Dimensions

  • Dimensions: 13.9 in x 2.8 in x 1.2 in
  • Height: 1.2 in
  • Length: 13.9 in
  • Width: 2.8 in

Conductor Related

  • Cable Specification: Per TIA-568C.2 Spec
  • Pairs Or Conductor: 1-Pair In, 2-Pair Out

Logistics

  • Carton Quantity: 28

Overview

UPC 66262082116
GTiN 00662620821160
Length 13.9 in
Width 2.8 in
Color White
Operating Temperature 0 Degrees C to 75 Degree C
Type Modular 66 Cross Connect Blocks
Material Composite
Product Series Modular 66B
Applications 50-Pair Split 66B Block
Height 1.2 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 28
Power Supply None
Sub Brand Copper Cross Connect
