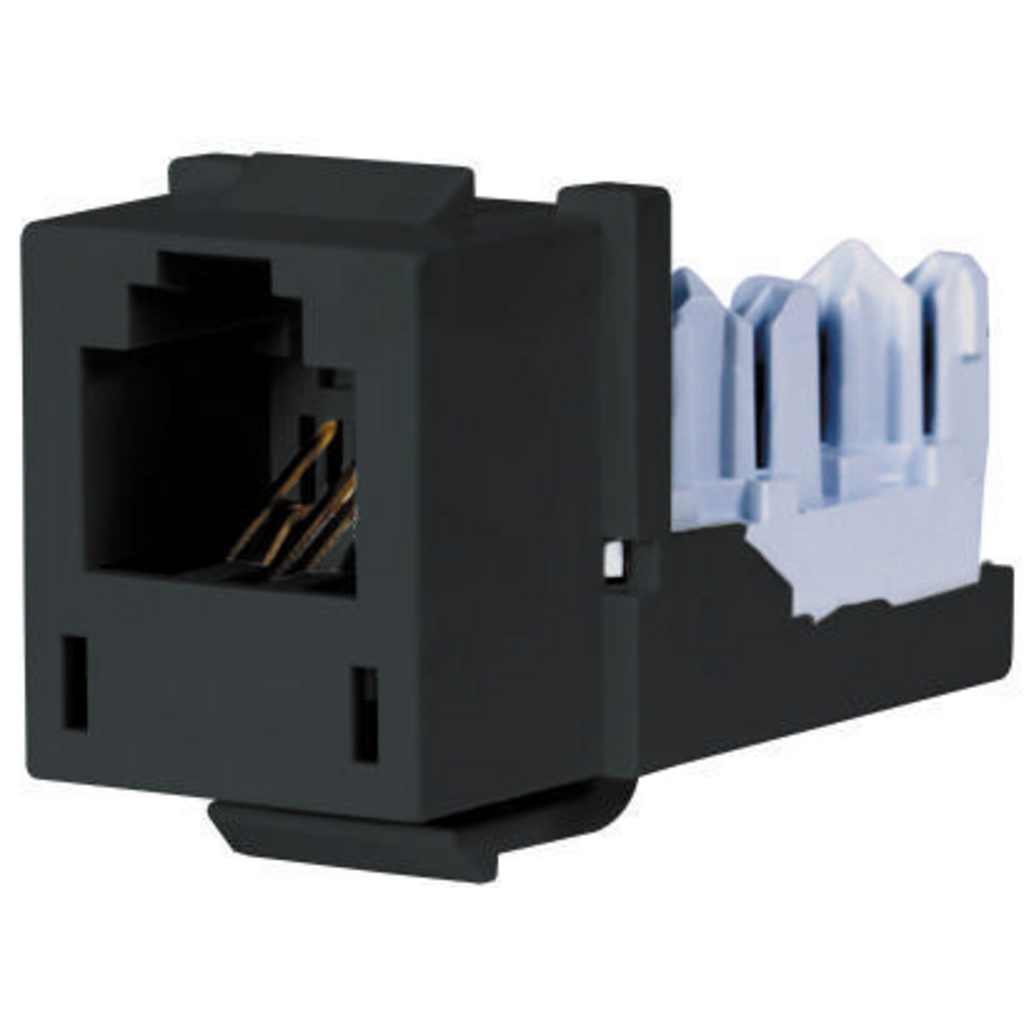

HPW HXJUBK JACK, HXJ,6POS,USOC,BK
$8.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Hubbell Premise Wiring Device
Mfg Catalog # HXJUBK
North Coast Part # 430357

Features

  • RJ-25 USOC (RJ-25) Jack
  • Exclusive 1-Punch Termination Reduces Termination Time by 75%
  • Mating Cycles Exceed Industry Standard by Four Times
  • Bulk Packaging Reduces Excess Waste on the Job
  • Standard Product

Performance

  • USOC

Industry Standard(s)

  • 6-Position USOC Compliant
  • UL Listed 1863
  • Mechanical TIA-568-C.2
  • CSA Certified
  • RoHS Compliant

Specifications

  • Application: Telephone and Data Distribution Jack
  • Carton Quantity: 25 EA
  • Color: Black
  • Connectivity: Insulation Displacement
  • Contact: Beryllium Copper
  • Contact Resistance: 100 Ohm
  • Display Size: Standard Sized Product
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Xcelerator Category 6, 5e, 3 and USOC Jacks
  • Material - Mounting Hardware: Keystone
  • Minimum Order Quantity: 25 EA
  • Number of Pieces in Package: Single
  • OEM Brand Name: Hubbell Premise Wiring
  • SAP Material Group 5: A10
  • Series: USOC
  • Temperature Rating: Per TIA
  • Withstand Voltage: 1000V RMS, 1414V DC
  • EU RoHS Indicator: Yes
  • Each - Length: 6.000 in
  • Each - Height: 1.000 in
  • Each - Width: 3.500 in
  • Special Features: Standard Product
  • Standard: 6-Position USOC Compliant || CSA Certified || Mechanical TIA-568-C.2 || RoHS Compliant || UL Listed 1863

Overview

UPC 66262082469
GTiN 00662620824697
Length 6.000 in
Finish Smooth
Width 3.500 in
Size Standard Sized Product
Color Black
Type RJ-45
Material Beryllium Copper
Product Series USOC
Applications Telephone and Data Distribution
Cable Type Category 6, 5E, 3
Height 1.000 in
Cable Size 22-24 AWG
Family Brand Name Hubbell Premise Wiring
Carton Qty 25
TC Connection Insulation Displacement
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Positions 6
Used With Flat Cable
Sub Brand Copper Work Area, Xcelerator
Temperature Rating Per TIA
Voltage null
