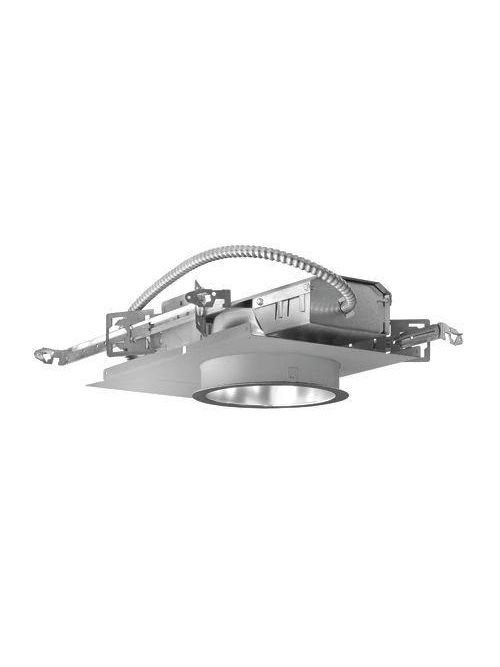

Hubbell Lighting LF6CFH226EB 26 W 120/277 Volt Horizontal Mount Compact Fluorescent Downlight Housing
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Prescolite
Mfg Catalog # LF6CFH226EB
North Coast Part # 604783


  • Ideal where price and availability are paramount
  • Features WFT2 optics with nominal 60ยบ cutoff for high efficiency and wide spacing
  • Iridescence suppressed, semi-diffuse, self-trim Alzak reflectors
  • Baffled units standard with painted white self-trim
  • Top relamping capability
  • Electronic ballast with end of life protection and 120-277 universal voltage
  • UL, CSA listed for damp locations and through wiring. CSA listed for use in Canada with CDN version. Also available for wet locations with lensed reflectors.


  • Amperage Rating: Depends on lamp and voltage (see spec sheet) A
  • Aperture: 6-7 in
  • Application: Non-IC rated
  • Ballast Type: class P HPF compact fluorescent electronic
  • Carton Quantity: 2
  • Chicago Plenum: Yes
  • Construction Material - Main: steel
  • Dimensions: 14.0000 in x 9.1250 in x 5.7500 in
  • Dimming Protocol: 0-10V;DMX;Forward Phase;Lutron 2-wire;Lutron 3-wire;Lutron EcoSystem Digital
  • Dimming Range: 1%;1%;10%;Dim-to-Off
  • Discontinued: Yes
  • Discontinued - Web: Yes
  • DisplayBaseProduct: No
  • Fire Resistance: No
  • Increment Qty Override: No
  • Industry Standard(s): UL/CSA
  • Lamp Type: 26W G24Q-3 base quad tube 4- pin compact fluorescent
  • Light Source: Compact Fluorescent
  • Listings: UL;CSA
  • Lumens: 0-2000
  • Minimum Order Quantity: 1 EA
  • Mounting Type: Universal adjustable mounting brackets
  • Number of Lamps: 2
  • On Website: Yes
  • Owning division: 5A
  • Product Family: LiteFrame
  • Product Name: LF6CFH226EB
  • Quote Online - Web: No
  • Reflector Type: order separately
  • Sales Org: C510
  • SAP Material Number: BG745000
  • Socket Type: Two vented injection molded sockets
  • Style: Round
  • Trim Type: Wall Wash;Lensed;Open
  • Type: 6 IN Horizontal CFL housing
  • Voltage Rating: 120-277 VAC
  • Web Show Inventory: Yes
  • WebShowPrice: No
  • UNSPSC: 39111530


UPC 78523512826
Item Long Description 6 IN Horizontal CFL housing, Lamp Type: 26W G24Q-3 base quad tube 4- pin compact fluorescent, Ballast Type: class P HPF compact fluorescent electronic, Voltage Rating: 120-277 VAC.
GTiN 00785235128261
Voltage 120/277 Volt
Type 6 IN Horizontal CFL housing
Material Steel
Applications Non-IC rated
Style Round
Family Brand Name Prescolite
Lamp Type 26W G24Q-3 base quad tube 4- pin compact fluorescent
Number of Lamps 2
Ballast Type class P HPF compact fluorescent electronic
Reflector Finish Order Separately
Aperture Size 6-7 in
Blade Dimensions 14.0000 in x 9.1250 in x 5.7500 in
CA Prop65 Warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
