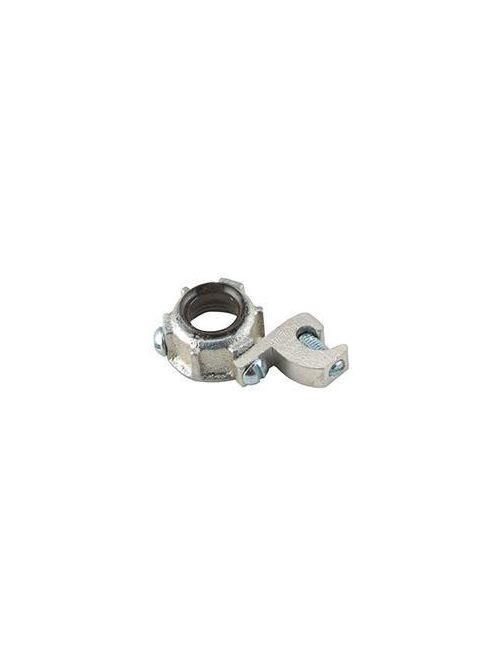

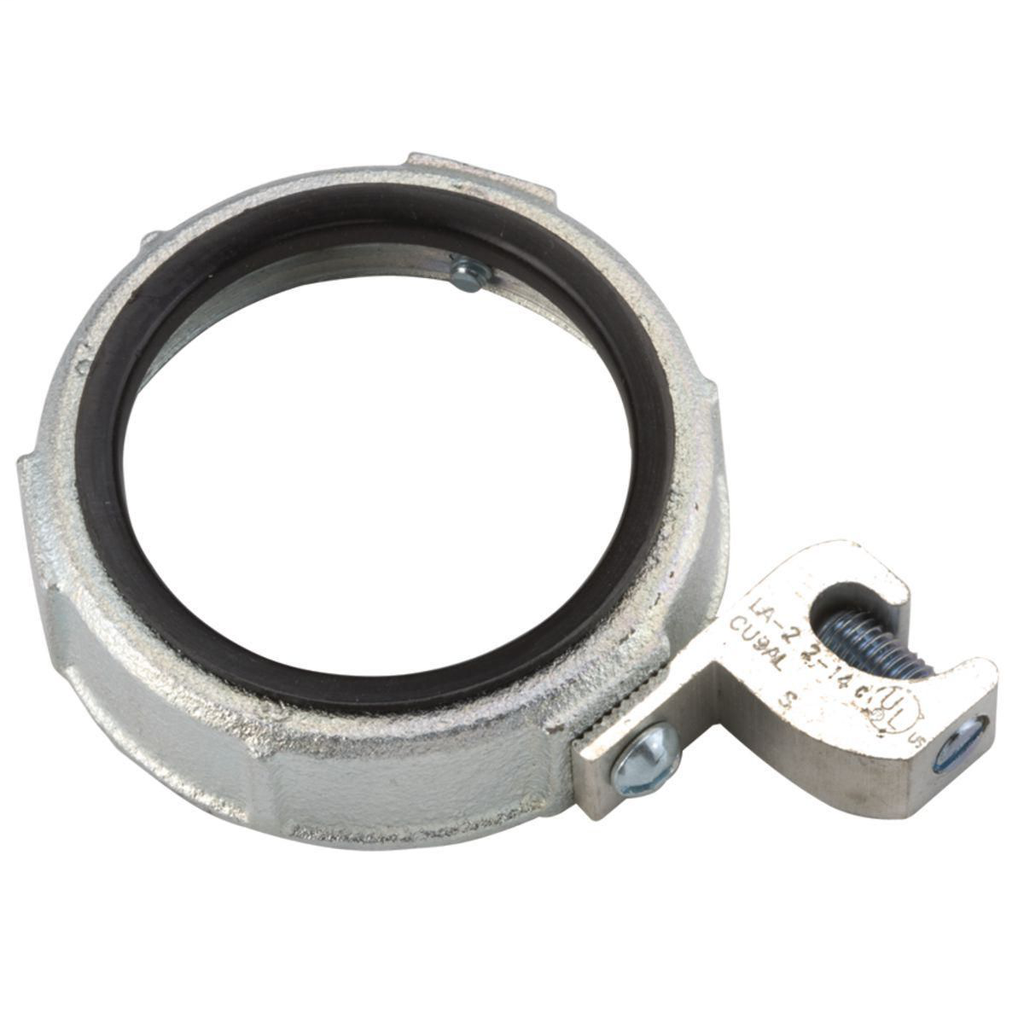

Raco 1290 7 2-1/2 Inch Malleable Iron 105 Degrees C Insulated Threaded Rigid/IMC Bushing
$2,109.47/c (100 ea)
In Stock | 217 available at 5 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 1290
North Coast Part # 329887

Features

  • Malleable iron construction ensures mechanical protection
  • Zinc-electroplated for added corrosion protection
  • Insuliner rated for 150° C
  • Grounding Wire Capacity - #14 Sol. - #1/0 Str.
  • UL and CSA Listed
  • Available in trade sizes of 1/2 in through 4 in.

Specifications

General

  • Conduit Type: Rigid/IMC
  • Connector Type: Grounding
  • Fitting Type: Bushings
  • Insulation Type: Insulated
  • Material: Malleable Iron
  • UPC: 050169012901

Dimensions

  • Height: 3.875 in
  • Length: 2.297 in
  • Trade Size: 2-1/2 in
  • Weight: 0.364 lb
  • Width: 3.281 in

Electrical Ratings

  • Grounding Wire Capacity Maximum: #1/0 STR
  • Grounding Wire Capacity Minimum: #14 SOL

Certifications and Compliance

  • Industry Standard(s): UL 514B

Logistics

  • Carton Quantity: 10 EA
  • Minimum Pack Quantity: 10
  • Pallet Quantity: 2940 EA

Certified Listed

  • UL Listed
  • CSA Certified

Categories

Overview

UPC 05016901290
GTiN 00050169012901
Length 2.297 in
Finish Zinc Plated
Width 3.281 in
Size 2.5 IN
Color Silver
Type Grounding, Rigid/IMC, Insulated
Insulation Type Insulated
Material Iron
Connector Type Grounding
Applications Electrical
Height 3.875 in
Weight 0.364 lb
Connection Type Grounding
Family Brand Name Raco
Construction Assembled two piece includes bushing with insuliner and lug
