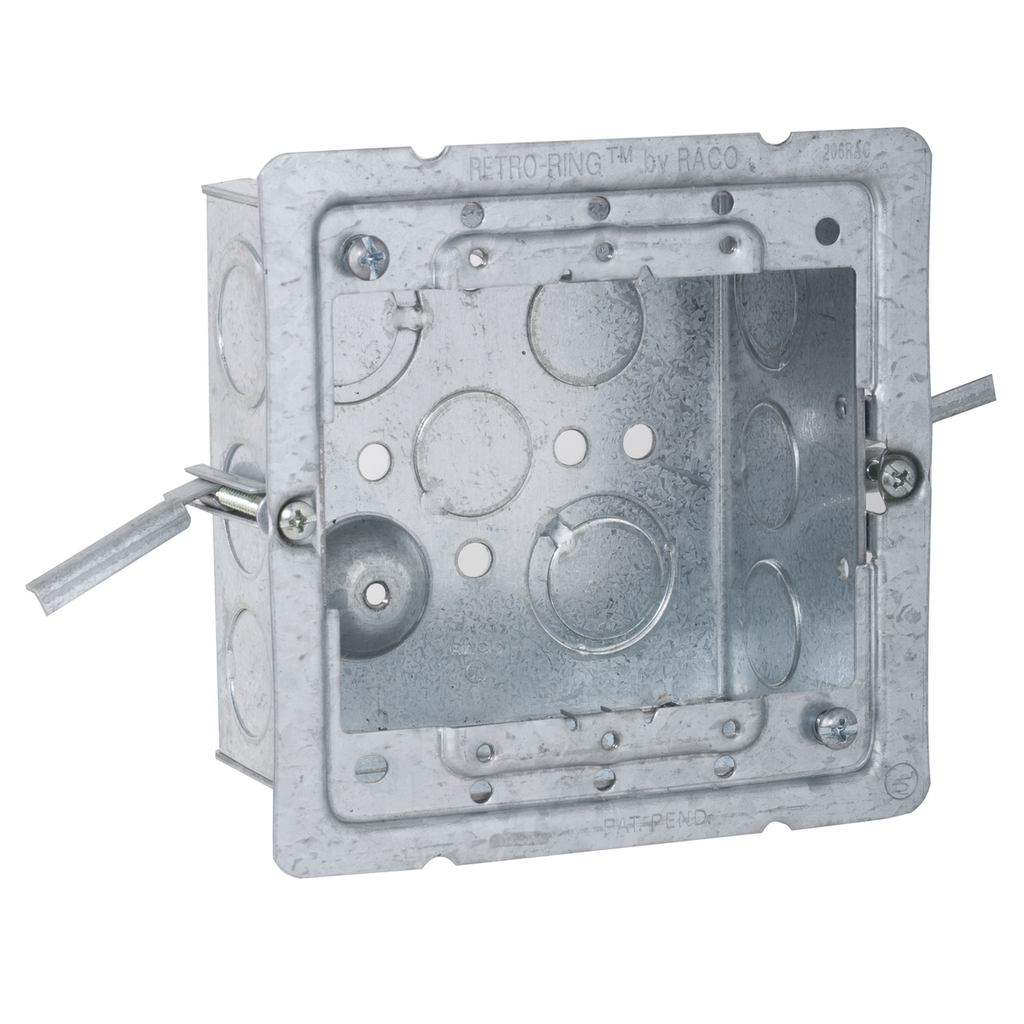

RACO 232-OW 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel Box/Ceiling/Wall Mount Welded Square Box with Pigtail
$1,247.47/c (100 ea)
In Stock | 42 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 232-OW
North Coast Part # 664994

Features

  • Use in old work applications with mounting bracket
  • Combination screw heads allow quick installation
  • Welded construction
  • Eight 1/2 in. knockouts and four TKO knockouts
  • UL Listed
  • 30.3 cu. in. capacity
  • Raised ground; 4 in. Mounting bracket
  • Acceptable in 2-hour fire rated walls
  • UPC barcoded

Specifications

General

  • Bracket Type: No Bracket
  • Color: Gray
  • Drawn or Welded: Welded
  • Fire Resistance: Yes
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Material: Steel
  • Number of Gang(s): 2-Gang
  • Type: Box
  • UPC: 050169502327
  • Wiring System: Conduit

Dimensions

  • Actual Depth: 2.48 in
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Height: 4.75 in
  • Raised Ground: Yes
  • Weight: 1.12 lb
  • Width: 4.88 in

Certifications and Compliance

  • Certified Listed: UL Listed
  • ENERGY STAR Certified: Yes

Logistics

  • Carton Quantity: 25 EA
  • Pallet Quantity: 1375 EA

Overview

UPC 05016950232
GTiN 00050169502327
Width 4.88 in
Size 2-1/8 IN
Color Gray
Type 4 IN square box
Material Steel
Applications Electrical
Depth 2.125 in
Height 4.75 in
Weight 1.12 lb
Family Brand Name Raco
Construction Welded
Cable Entry Knockouts for conduit
