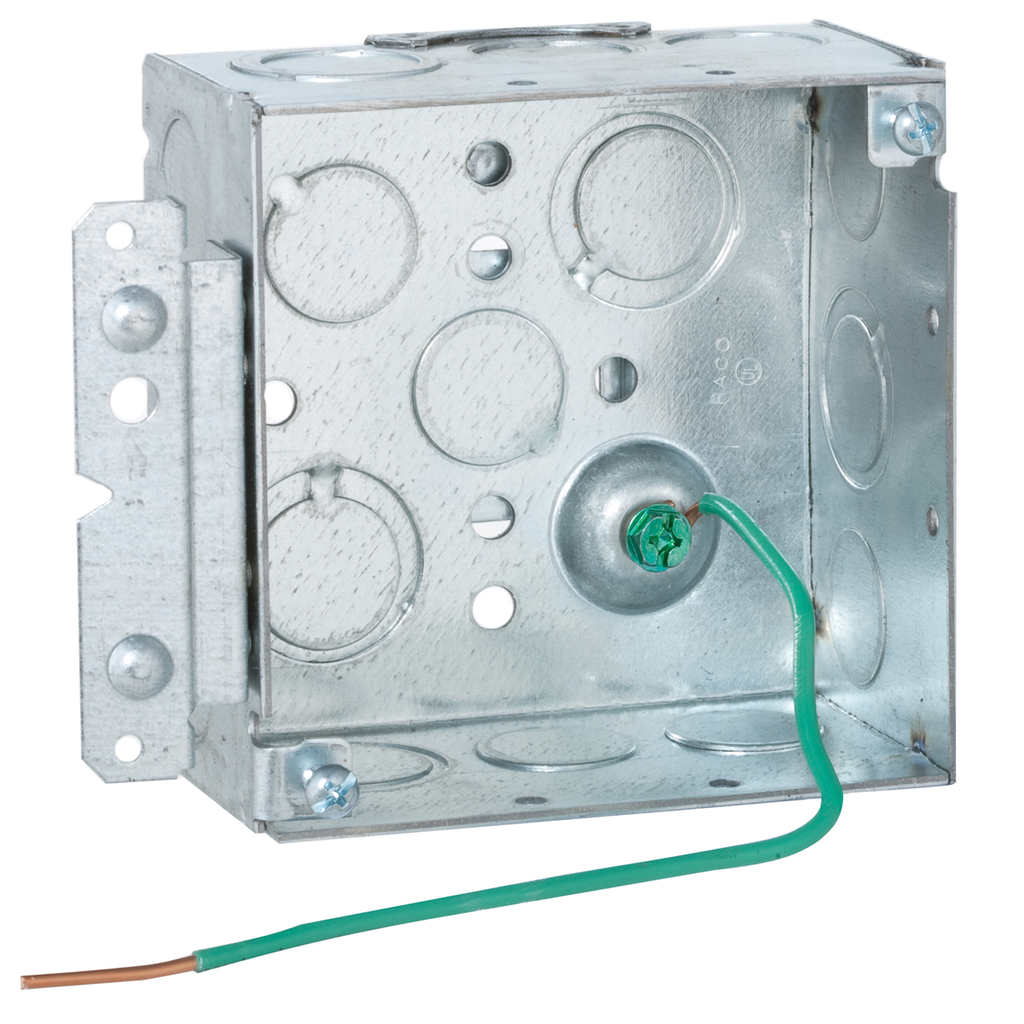

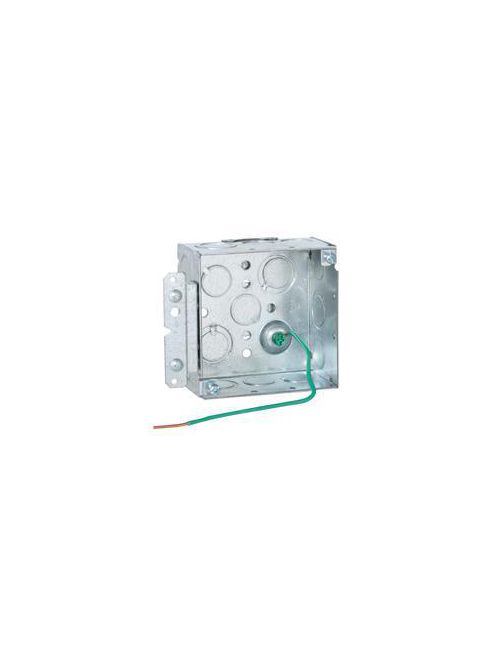

RACO 232H 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel HM Bracket/Ceiling/Wall Mount Welded Square Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,533.20/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 232H
North Coast Part # 1612935

Features

  • UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in - 6 in. thickness, H/M
  • Combination screw heads allow quick installation
  • Welded construction
  • Ten 1/2 in. knockouts and six TKO knockouts
  • UL Listed
  • 30.3 cu. in. capacity
  • Raised ground, 8 in. #12 solid copper pigtail
  • Acceptable in 2-hour fire rated walls

Specifications

  • Actual Depth: 2.676 in
  • Buy American Compliant: Contact Manufacturer
  • Country of Origin: MX
  • Each - Height: 4.030 in
  • Each - Length: 2.676 in
  • Each - Width: 4.910 in
  • Height: 4 in
  • Product Type: Steel Boxes and Covers
  • Color: Gray
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Standard: UL Listed
  • Type: Box
  • Width: 4.915 in

Certifications

  • Certified Listed: UL Listed
  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 05016950003
Item Long Description 4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket
GTiN 00050169500033
Width 4.915 in
Size 2-1/8 IN
Color Gray
Type 4 IN square box
Material Steel
Applications Electrical
Depth 2.125 in
Height 4 in
Weight 1 lb
Family Brand Name Raco
Construction Welded
Cable Entry Knockouts for conduit
