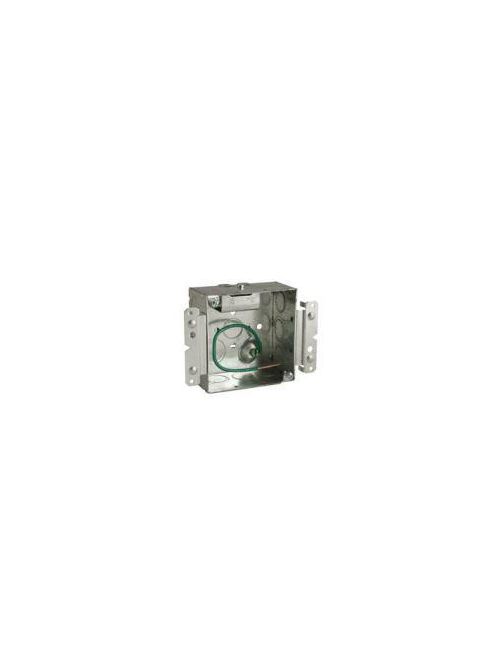

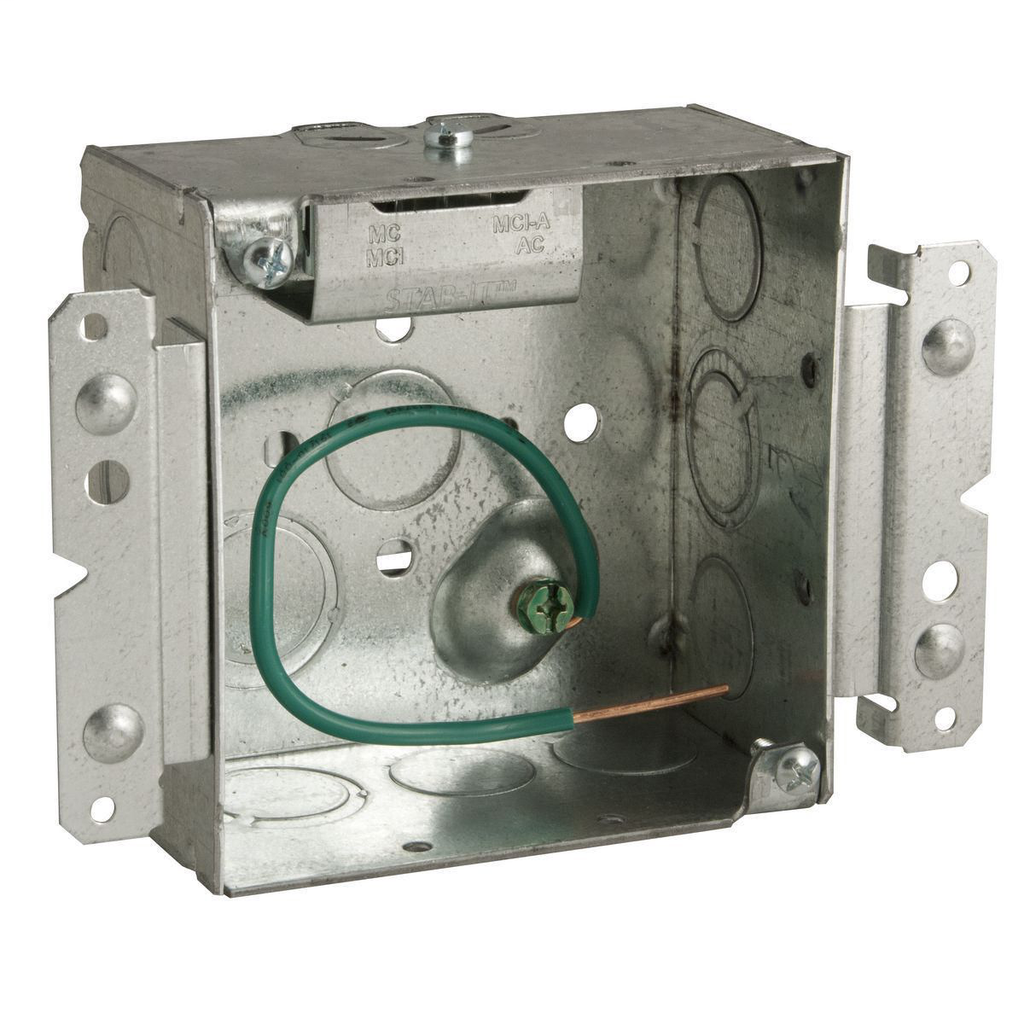

RACO 232MS 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel M Bracket/Ceiling/Wall Mount Welded Square Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$760.23/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 232MS
North Coast Part # 1434555

Features

  • Welded steel construction with "UBC" support with preset bend points to work with wall thickness 2-1/2 to 6 in. and "M" brackets on both sides of the box
  • 4 in. square x 2-1/8 in. deep
  • Designed for quick installation of flex, MC, MCI, MCI-A, AC, and HCF Cable
  • TKO® Knockouts allow design and installation flexibility
  • Supplied with seven 1/2 in. and four 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 30.3 cu. in. capacity
  • Includes 8 in. #12 solid copper ground pigtail
  • Acceptable for use in 2-hour fire rated walls

Specifications

General

  • Bracket Setback: 0.375
  • Bracket Type: M, for Metal or Wood Studs
  • Color: Gray
  • Drawn or Welded: Welded
  • Fire Resistance: Yes
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Material: Steel
  • Number of Gang(s): 2-Gang
  • Type: Box
  • UPC: 050169500736

Dimensions

  • Actual Depth: 2.64 in
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Height: 4.14 in
  • Raised Ground: Yes
  • Weight: 1.131 lb
  • Width: 5.86 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 25 EA
  • Pallet Quantity: 1375 EA

Application

  • RACO® STAB-IT boxes are great for any job where flexible armored cable is being used
  • RACO® Boxes are installed in walls or ceilings for lighting fixtures, switches or receptacles

Overview

UPC 05016950073
GTiN 00050169500736
Width 5.86 in
Color Gray
Material Steel
Applications Commercial
Depth 2.125 in
Height 4.14 in
Weight 1.131 lb
Family Brand Name Raco
