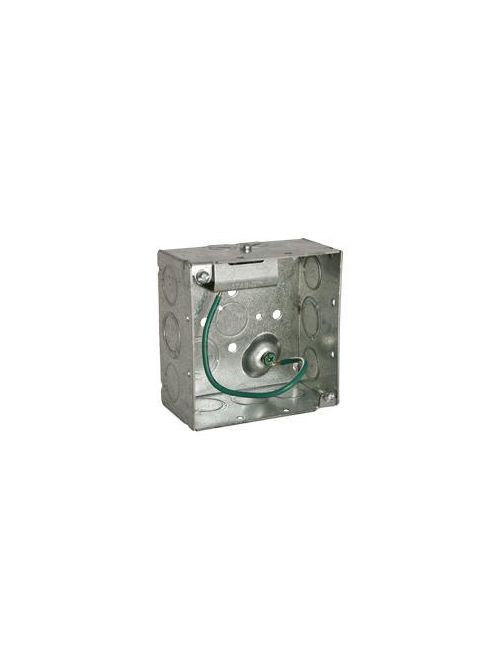

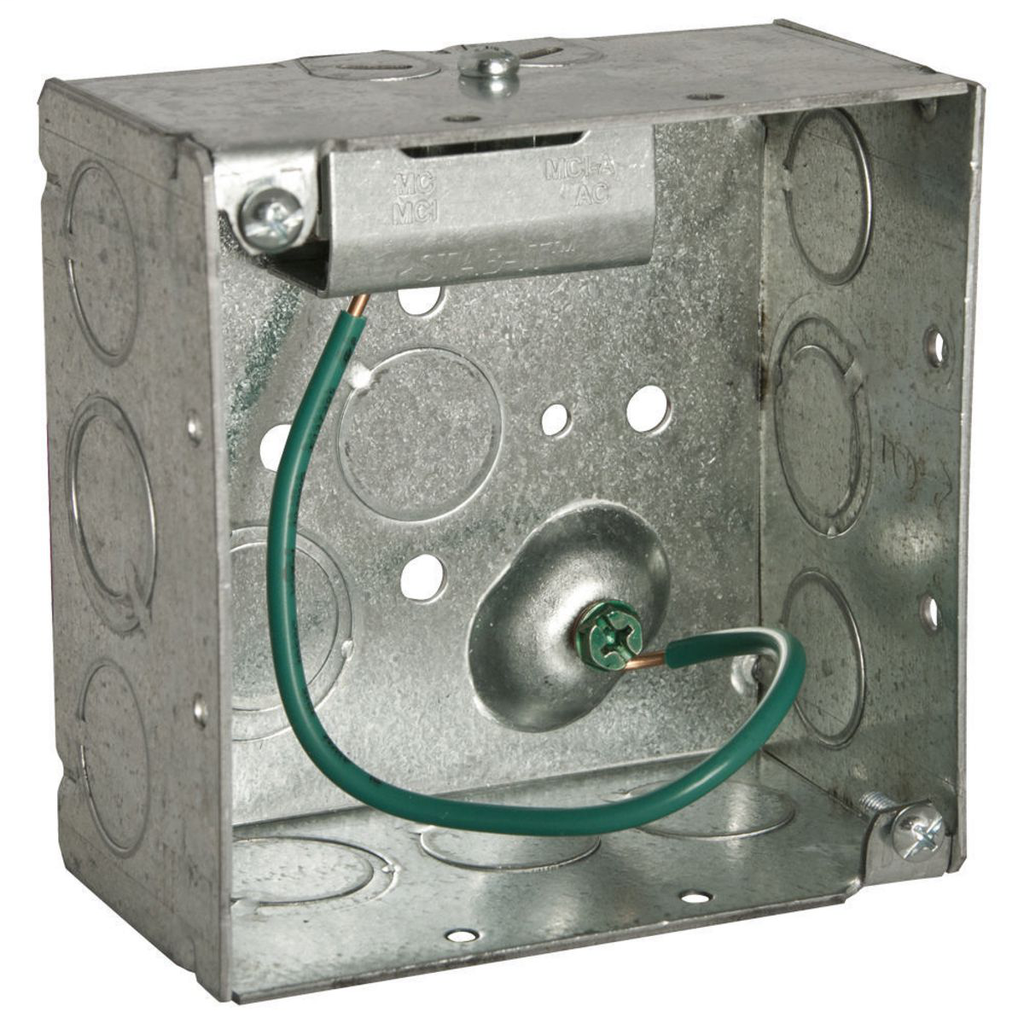

RACO 232S 4 x 4 x 2-1/8 Inch 30.3 In Pre-Galvanized Steel Ceiling/Wall Mount Welded Square Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$519.72/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Raco
Mfg Catalog # 232S
North Coast Part # 1434866

Features

  • Welded steel construction
  • 4 in. square x 2-1/8 in. deep
  • Designed for quick installation of flex, MC, MCI, MCI-A, AC, and HCF Cable
  • TKO® Knockouts allow for design and installation flexibility
  • Supplied with seven 1/2 in. and four 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 30.3 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls
  • Includes 8 in. #12 solid copper groung pigtail

Specifications

General

  • Color: Gray
  • Drawn or Welded: Welded
  • Fire Resistance: Yes
  • Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
  • Material: Steel
  • Number of Gang(s): 2-Gang
  • Type: Box
  • UPC: 050169500705

Dimensions

  • Actual Depth: 2.2 in
  • Cubic Capacity: 30.3 cu.in
  • Depth: 2.125 in
  • Height: 4.14 in
  • Raised Ground: Yes
  • Weight: 0.974 lb
  • Width: 4 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 25 EA
  • Pallet Quantity: 1750 EA

Application

  • RACO® STAB-IT boxes are great for any job where flexible armored cable is being used
  • RACO® Boxes are installed in walls or ceilings for lighting fixtures, switches or receptacles

Overview

UPC 05016950070
GTiN 00050169500705
Width 4 in
Color Gray
Material Steel
Applications Commercial
Depth 2.125 in
Height 4.14 in
Weight 0.974 lb
Family Brand Name Raco
